ABB 1SFA898103R7000 Softstarter PSTX features a three-phase control soft start and stop through a voltage or a torque ramp
ABB 1SFA898103R7000 Softstarter PSTX features a three-phase control soft start and stop through a voltage or a torque ramp
ABB 1SFA898103R7000 Softstarter PSTX features a three-phase control soft start and stop through a voltage or a torque ramp
ABB 1SFA898103R7000 Softstarter PSTX features a three-phase control soft start and stop through a voltage or a torque ramp
ABB 1SFA898103R7000 Softstarter PSTX features a three-phase control soft start and stop through a voltage or a torque ramp
ABB 1SFA898103R7000 Softstarter PSTX features a three-phase control soft start and stop through a voltage or a torque ramp
Specifications
Brand Name :
ABB
Model Number :
1SFA898103R7000
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8days
Packaging Details :
pieces
Mounting Type :
Wall-mounted, Panel-mounted
Ambient Temperature Range :
-10°C to 50°C
Expandability :
Modular with expansion modules
Coolingmethod :
Air-cooled or liquid-cooled
Point :
14 (8DI+6DO)
Total Points :
60 points.
Warrantyperiod :
1 to 3 years
Inputvoltagerange :
100-240V AC
Memorycapacity :
Typically 16KB to 1MB
Safetystandards :
IEC 61508, ISO 13849
Output Points :
20
Harmonic Distortion :
< 5% with optional filters
Inputvoltage :
24V DC
Powerrating :
0.5 kW to several MW
Part No :
PT5501A
Description

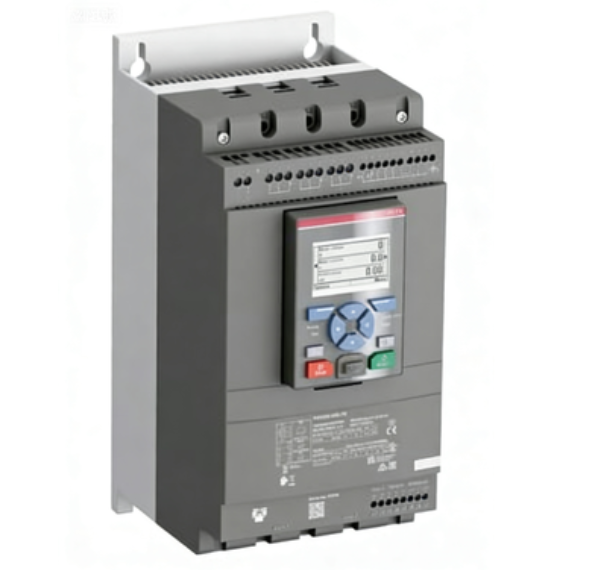

ABB PSTX30 Softstarter
Three-phase control soft starter and stopper featuring voltage or torque ramp functionality for smooth motor acceleration and deceleration.
Ordering Information
Minimum Order Quantity1 piece
Customs Tariff Number85371091
Technical Documentation
Softstarter Main Catalog - Data Sheet, Technical Information
PSTX Quick Start Guide - Instructions and Manuals
PSTX Installation and Commissioning Manual - Instructions and Manuals
Softstarter Handbook - Instructions and Manuals
2D and 3D CAD Files - Dimensional Drawings
EPLAN EDZ PSTX30 - EPLAN Data
Physical Dimensions
Width150 mm
Height314 mm
Depth/Length198 mm
Weight4.6 kg
Electrical Specifications
Rated Operational Voltage208-600 V AC
Rated Control Supply Voltage100-250 V AC
Rated Control Circuit Voltage24 V DC
Rated Frequency50/60 Hz
Rated Operational Power (In-Line)7.5 kW (230V), 15 kW (400V), 18.5 kW (500V)
Rated Operational Current (In-Line)30 A
Rated Operational Power (Inside Delta)12.5 kW (230V), 25 kW (400V), 30 kW (500V)
Rated Operational Current (Inside Delta)52 A
Performance Features
Service Factor100%
Overload ProtectionBuilt-in electronic overload protection
Starting Capacity4xIe for 10s
Ramp Time1-120 seconds
Initial Voltage During Start10-99%
Current Limit Function1.5-7.5 xIe
Control & Communication
Switch for Inside Delta ConnectionYes
Run Signal RelayYes
By-pass Signal RelayYes
Fault Signal RelayYes
Overload Signal RelayYes
Analog Outputs0-10 V, 0-20 mA, 4-20 mA
Communication ProtocolsModbus-RTU, Modbus-TCP, Ethernet-IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet, BACnet-IP, BACnet-MSTP
Environmental Conditions
Operating Temperature-25°C to +60°C
Storage Temperature-40°C to +70°C
Degree of ProtectionIP00 (Main Terminals)
UL/CSA Specifications
Horsepower Rating7.5 Hp (200-208V), 10 Hp (220-240V), 20 Hp (440-480V), 25 Hp (550-600V)
Maximum Operating Voltage600 V
Compliance & Certifications
RoHS II compliant following EU Directive 2011/65/EU
CE, CQC, DNV certified
WEEE Category 5 - Business to Business
Packaging Information
Package Dimensions200 * 282 * 388 mm (W*D*H)
Gross Weight5.6 kg
EAN Code7320500501290
Units per Package1 piece per box
