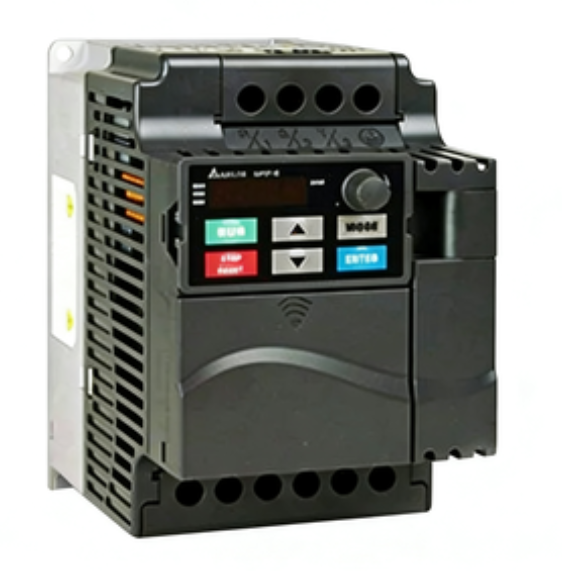

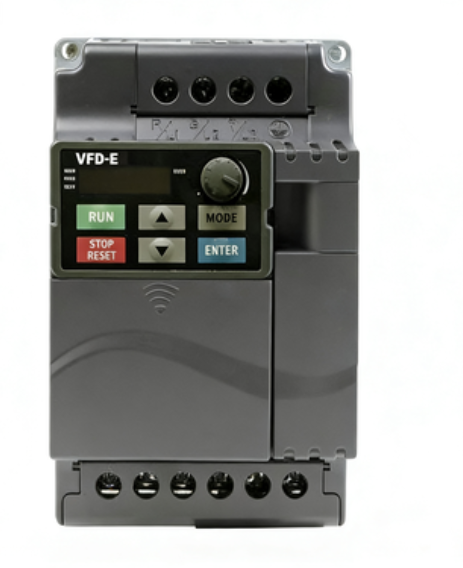

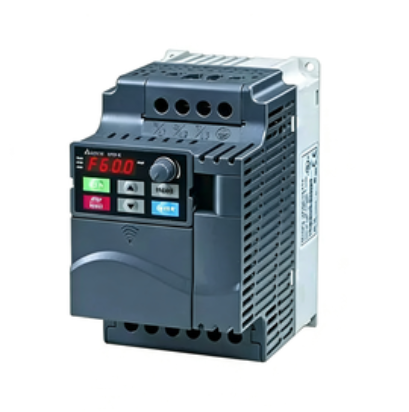

Delta VFD-022E43A AC Drive 2.2kW Three Phase 400v VFDE low horsepower, constant torque, IP20 rated Drive
Delta VFD-022E43A AC Drive 2.2kW Three Phase 400v VFDE low horsepower, constant torque, IP20 rated Drive
Delta VFD-022E43A AC Drive 2.2kW Three Phase 400v VFDE low horsepower, constant torque, IP20 rated Drive
Delta VFD-022E43A AC Drive 2.2kW Three Phase 400v VFDE low horsepower, constant torque, IP20 rated Drive
Delta VFD-022E43A AC Drive 2.2kW Three Phase 400v VFDE low horsepower, constant torque, IP20 rated Drive
Delta VFD-022E43A AC Drive 2.2kW Three Phase 400v VFDE low horsepower, constant torque, IP20 rated Drive
Specifications
Brand Name :
Delta
Model Number :
VFD-022E43A
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8days
Packaging Details :
pieces
Description

Delta VFD-022E43A AC Drive

(ECER Compliant | English Only | VFD‑E Series)

1. Product Overview

The VFD‑022E43A is a low‑horsepower, constant‑torque AC drive from Delta’s VFD‑E series, rated 2.2 kW (3 HP) for three‑phase 400 V motors. It converts fixed‑frequency AC input into variable‑frequency output to precisely control induction motor speed and torque in general automation applications. With IP20 protection and a compact, modular design, it delivers reliable, cost‑effective motion control for small machinery and constant‑torque loads.

2. Product Advantages & Core Features

✅ Constant Torque Performance

Delivers full torque at low speeds; ideal for conveyors, mixers, and material handling.
✅ Sensorless Vector (SVC) + V/F Control

Supports V/F and SVC modes for stable speed regulation and high starting torque (150% at 3 Hz).
✅ Compact & IP20 Rated

Space‑saving footprint; IP20 enclosure for safe use in standard control cabinets.
✅ Built‑In PLC & EMI Filter

Integrated PLC for simple ladder logic; built‑in EMI filter reduces electromagnetic interference.
✅ Wide Frequency Range

Output frequency 0.1–600 Hz; supports high‑speed motor applications.
✅ Robust Protection & Easy Maintenance

150% overload for 60 s; overvoltage/overcurrent/short‑circuit protection; removable cooling fan for simple servicing.
✅ Modbus RS‑485 Communication

Standard RS‑485 port (Modbus RTU) for seamless integration with PLCs and HMIs.

3. Technical Parameters

表格



Item Specification
Model VFD‑022E43A
Series VFD‑E
Motor Power 2.2 kW / 3 HP
Input 3‑Phase 380–480 V AC (±10%), 50/60 Hz
Rated Input Current 7.1 A
Output 3‑Phase 0–380 V AC (proportional to input)
Rated Output Current 5.5 A
Output Frequency 0.1–600 Hz
Carrier Frequency 1–15 kHz
Control Modes V/F, Sensorless Vector (SVC)
Torque Characteristics Constant torque; 150% starting torque @ 3 Hz
Overload Capacity 150% rated current for 60 seconds
Communication RS‑485 (Modbus RTU)
Protection Class IP20
Operating Temperature 0–40°C
Dimensions (W×H×D) 100 mm × 174 mm × 152 mm
Weight 1.9 kg
Approvals CE, UL, RoHS

4. Application Industries & Scenarios

Main Application Industries

  • General Machinery
  • Conveyor & Logistics Systems
  • Packaging Machinery
  • Textile & Printing Equipment
  • Food & Beverage Processing
  • Plastic & Rubber Machinery
  • Material Handling

Application Description

The VFD‑022E43A is designed for small‑scale, constant‑torque applications requiring reliable speed control. Typical uses include:
  • Conveyor belts and material handling lines
  • Mixers, agitators, and pumps
  • Winding/unwinding machines
  • Small cranes and hoists
  • Packaging and labeling equipment

Image Labels for Reference

  1. Application Scenario
Label: VFD‑022E43A in Control Cabinet

Content: Industrial control cabinet with VFD‑022E43A installed, wired to a 2.2 kW motor and PLC for constant‑torque conveyor control.
  1. Warehouse Storage
Label: Delta Automation Components Warehouse

Content: ESD‑protected warehouse shelf with VFD‑022E43A drives in original packaging, neatly organized for inventory.

5. Icon & Text Combined Layout

Core Function Icons
