Dajin Medium Duty Caster Wheels Industrial Polyurethane Wheels Manufacturers
Dajin Medium Duty Caster Wheels Industrial Polyurethane Wheels Manufacturers
Dajin Medium Duty Caster Wheels Industrial Polyurethane Wheels Manufacturers
Dajin Medium Duty Caster Wheels Industrial Polyurethane Wheels Manufacturers
Dajin Medium Duty Caster Wheels Industrial Polyurethane Wheels Manufacturers
Dajin Medium Duty Caster Wheels Industrial Polyurethane Wheels Manufacturers
Specifications
Brand Name :
Dajin
Model Number :
HTC-001
Certification :
Rosh/CE/IOS
Place of Origin :
China
MOQ :
500
Price :
3.9
Payment Terms :
L/C,T/T
Delivery Time :
25
Packaging Details :
21X21X21 cm
Name :
Medium Duty Caster Wheels
Wheel Diameter :
75/100/125 mm
Tread Width :
32 mm
Bearing Type :
Double Ball Bearing
Plate Size :
92×65 mm
Hole Spacing :
75.5/69.5 × 44.5 mm
Thread Size :
M12 × 30 mm
Load Capacity :
80/120/150 kg per caster
Installation :
Top-plate mount
Wheel Material :
PU Tread + PP Core
Description

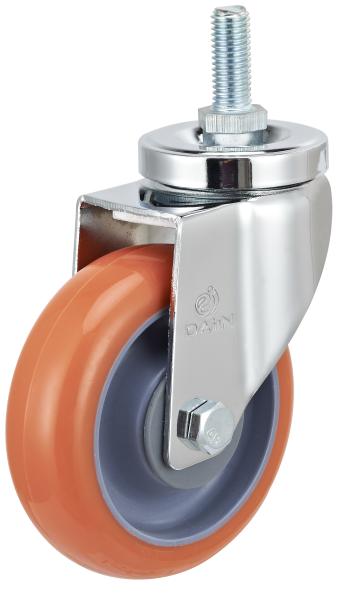

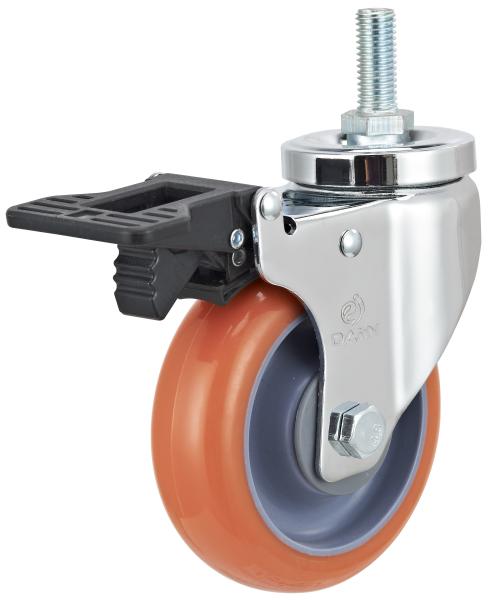

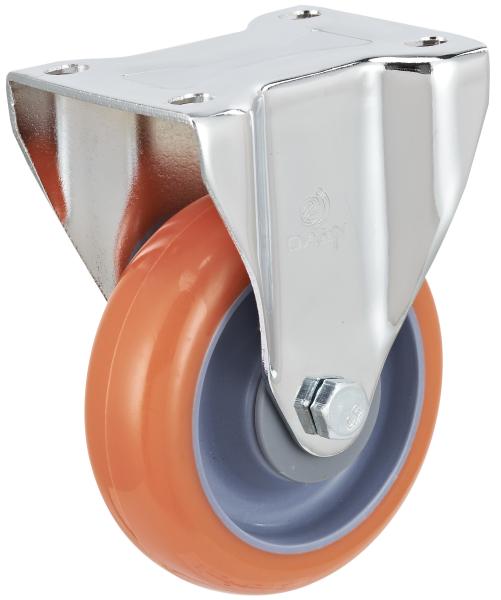

Medium-Duty Polyurethane Industrial Casters
Features

1. Premium Polyurethane Tread

  • 32mm wide tread (Shore A 85±3)
  • Non-marking and floor-protective
  • Excellent shock absorption

2. Precision Bearing System

  • Sealed double ball bearings (ABEC-3)
  • Smooth 360° rotation under load
  • Maintenance-free design

3. Robust Construction

  • Reinforced polypropylene core
  • Zinc-plated steel mounting plates
  • Corrosion-resistant components

4. Versatile Mounting

  • Standard 92×65mm plate
  • Dual hole patterns: 75.5×44.5mm or 69.5×44.5mm
  • Optional M12×30mm threaded stem
Function
These medium-duty casters provide optimal balance between load capacity and maneuverability. The polyurethane tread offers quiet operation and floor protection, while the double ball bearing system ensures smooth movement. Ideal for equipment requiring frequent repositioning in industrial and commercial environments.
Application
  1. Industrial Equipment: Assembly line carts, tool trolleys
  2. Medical Transport: Medication carts, mobile workstations
  3. Food Service: Kitchen utility carts, buffet trolleys
  4. Retail Environments: Display units, POS systems
  5. Warehouse Operations: Medium-duty platform trucks
Technical Parameters

item
value
Model Name
 Medium-Duty Polyurethane Industrial Casters
Tread PU Tread + PP Core
Type
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
Style
Rigid, SWIVEL, Swivel & Rigid
Customized support
OEM, ODM, OBM
Place of Origin
China
Wheel Diameter 75/100/125 mm
Wheel Diameter 32 mm
Plate Size 92×65mm
Thread Size M12*30 mm
Load Capacity
 80/120/150 kg per caster
Hole Size
75.5/69.5 × 44.5 mm
