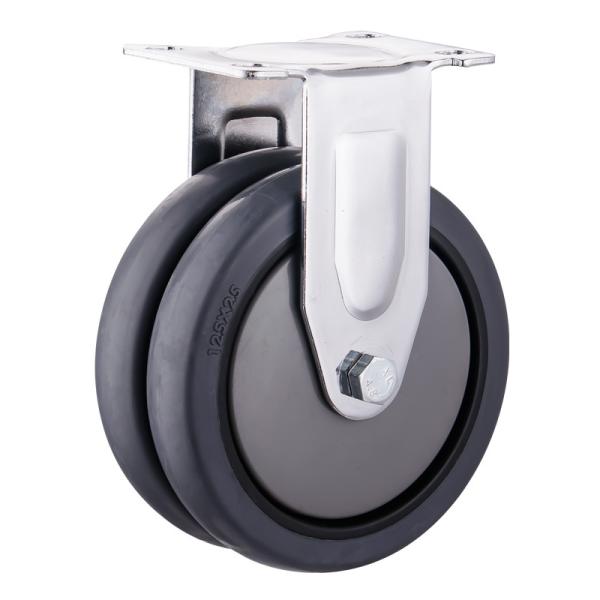

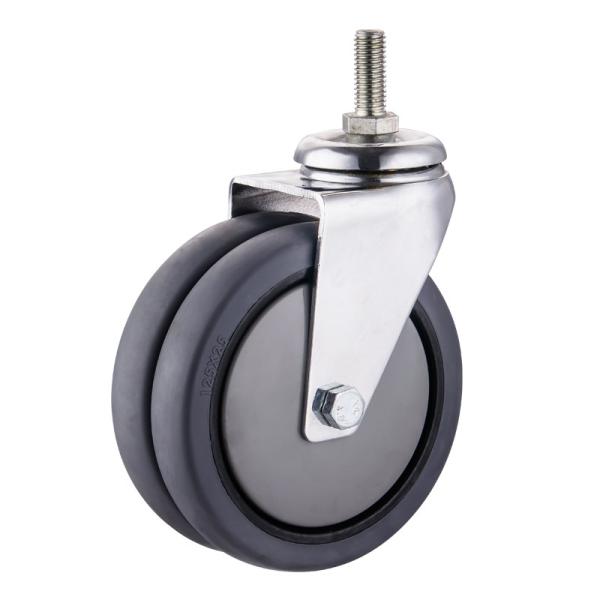

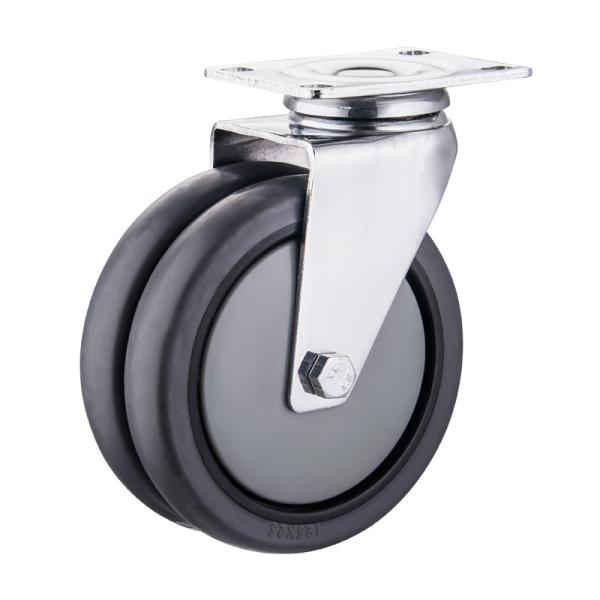

TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
TPR Caster Wheels 75mm 100mm 125mm PU Industrial Twin Wheel Castors
Specifications
Brand Name :
Dajin
Model Number :
HTC-001
Certification :
Rosh/CE/IOS
Place of Origin :
China
MOQ :
500
Price :
18.6
Payment Terms :
L/C,T/T
Delivery Time :
25
Packaging Details :
21X21X21 cm
Name :
Twin Wheel Castors
Wheel Diameter :
75mm / 100mm / 125mm
Tread Width :
25*2 mm
Bearing :
Single-ball bearing
Load Height :
110 mm (75 mm), 129 mm (100 mm), 155 mm (125 mm)
Plate Size :
92 × 65 mm
Hole Spacing :
73 × 47.5 mm
Load Capacity :
100 kg / 110 kg / 130 kg per caster
Thread Size :
M12 × 30 mm
Finish :
Zinc-plated steel
Mounting :
Top-plate or threaded stem
Description
Twin wheel industrial casters

Features

1. Dual-wheel configuration delivers enhanced stability and load distribution for capacities of 100 kg, 110 kg, and 130 kg per caster

2. Non-marking tread protects floors and operates quietly with minimal noise and vibration

3. Precision single-ball bearings ensure smooth 360° swivel under full load for effortless maneuvering

4. Generous 25 mm flat tread width provides excellent contact and shock absorption on hard surfaces

5. Zinc-plated top-plate or M12 × 30 mm threaded stem mounting offers secure installation and corrosion resistance


Function

These twin-wheel casters convert stationary equipment into fully mobile fixtures, with each caster’s dual wheels and single-ball bearings delivering smooth rotation and tight-space maneuverability. The PU tread cushions impacts and dampens noise, reducing operator fatigue and protecting both cargo and flooring during material handling.

Application

1. Warehouse & Logistics Carts: Ideal for heavy-duty order-picking and platform trolleys in distribution centers

2. Shop Carts & Display Fixtures: Offers quiet, floor-friendly mobility for retail and showroom applications

3. Medical & Lab Carts: Non-marking and hygienic for sensitive healthcare and laboratory environments

4. Food Service Equipment: Suited to buffet trolleys and kitchen carts requiring easy cleaning and silent operation

5. Moving Dollies & Tool Carts: Provides stable, low-effort movement of heavy tools and dollies



Technical Parameters


item
value
Model Name
 PU Industrial Caster Wheel
Tread TPR
Center
 Polypropylene
Type
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
Style
Rigid, SWIVEL, Swivel & Rigid
Customized support
OEM, ODM, OBM
Place of Origin
China
Wheel Diameter 75 mm / 100 mm / 125 mm
Tread Width 25*2 mm
Bearing
Single-ball bearing
Thread Size M12 × 30 mm
Load Capacity
 100 kg / 110 kg / 130 kg per wheel
Load Height
110 mm (75 mm), 129 mm (100 mm), 155 mm (125 mm)
