Specifications
Brand Name :
Dajin
Model Number :
HTC-001
Certification :
Rosh/CE/IOS
Place of Origin :
China
MOQ :
500
Price :
6.8
Payment Terms :
L/C,T/T
Delivery Time :
25
Packaging Details :
21X21X21 cm
Wheel Material :
Polyamide
Wheel Diameter :
50mm
Tread Width :
28 mm
Bearing Type :
Double Ball Bearing
Plate Size :
54×70 mm
Hole Spacing :
7 mm
Thread Size :
M12 × 30 mm
Load Capacity :
150 kg
Installation :
Top-plate mount / Stem
Description

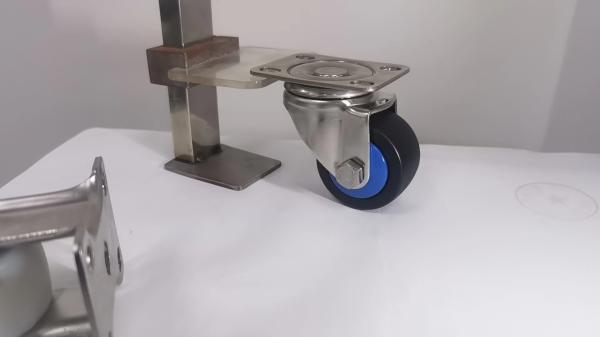

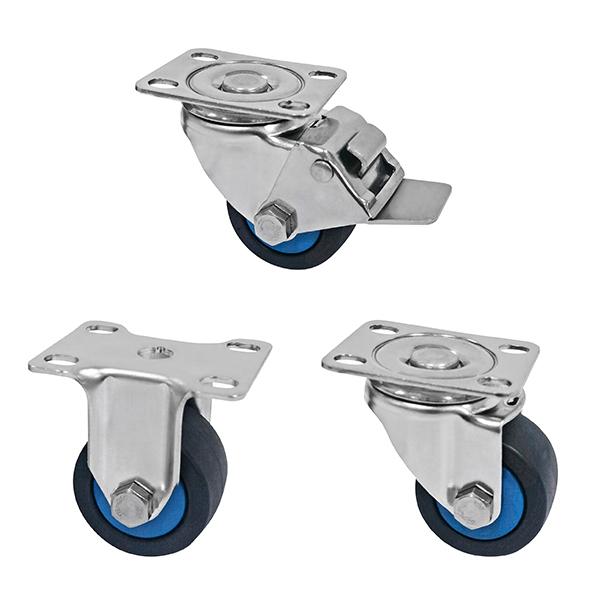

Low-Profile Stainless Steel PA Caster



Features


This low-profile caster combines a 304 stainless steel frame with a high-strength polyamide (PA) wheel, designed for medium-duty applications (150kg capacity) in space-constrained environments. The ultra-compact 72mm installation height ensures stability, while the single ball bearing provides smooth rolling with minimal friction. The 70×54mm mounting plate with 54.5×36mm hole spacing allows secure attachment to equipment.


Function


This low-profile caster delivers exceptional stability with its 72mm installation height, reducing tipping risks while maintaining 150kg load capacity. The precision single ball bearing ensures effortless mobility (rolling resistance <3% of load weight), and the stainless steel/PA construction withstands rigorous washdowns, chemicals, and temperatures from -30°C to 90°C, making it ideal for food processing, medical, and industrial carts requiring compact, hygienic mobility solutions.


Application

  • Medical & Laboratory Equipment – Low-profile carts, IV stands, mobile workstations
  • Food Processing – Compact trolleys, bakery racks, kitchen utility carts
  • Industrial Automation – Small machinery movers, assembly line equipment
  • Retail & Hospitality – Service carts, display units with limited clearance


Technical Parameters
Wheel Dia (mm/inch) Tread Width (mm) Bearing Load Height (mm) Swivel Radius (mm) Plate Size (mm) Hole Size (mm) Hole Spacing (mm) Thread Size (mm) Stem Size (mm)
50 / 2" 50 Double Ball Bearing 72 80 70*54 54*36 7 M12 × 30 ⌀12 × 60


Factory Shows

Low-Profile Stainless Steel PA Caster

Low-Profile Stainless Steel PA Caster
