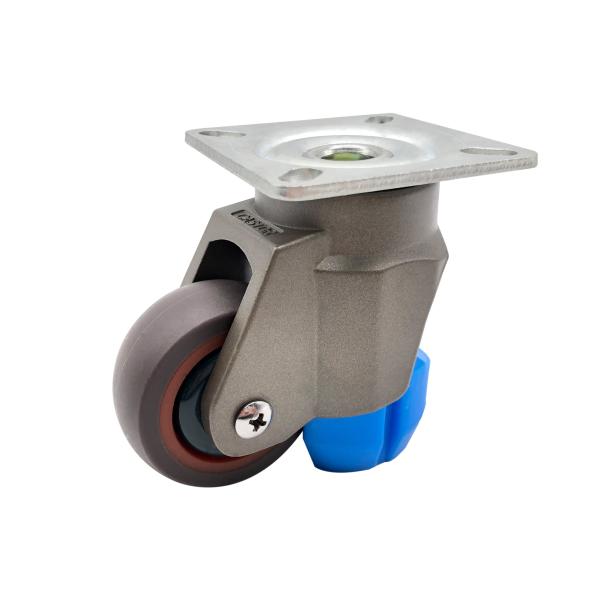

Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Premium Heavy-Duty Adjustable Leveling Casters With Nylon Wheels For Smooth Mobility
Specifications
Brand Name :
Dajin
Model Number :
HTC-001
Certification :
Rosh/CE/IOS
Place of Origin :
China
MOQ :
500
Price :
5.21
Payment Terms :
L/C,T/T
Delivery Time :
25
Packaging Details :
21X21X21 cm
Product Name :
Premium Heavy-Duty Adjustable Leveling Casters with Nylon Wheels for Smooth Mobility
Adjustment Time :
3 sec (lever-operated)
Wheel Diamete :
50 mm
Application :
Industrial Machinery，Material Handling，Medical
Stem Size :
M8*25 mm
Base Size :
50*63 mm
Temperature Range :
–25 °C to +85 °C (typical for PA6/TPR)
Height :
78+5 mm
Material :
PA6 (core), TPR (tread), Metal (housing)
Description
Retractable Heavy-Duty Leveling Casters with Nylon Wheels

Features

  • Triple-Lock System: Simultaneously secures (1) wheel rotation, (2) swivel movement, and (3) height position

  • High-Performance Nylon Wheel: 80mm diameter with glass fiber reinforcement (PA6+30%GF) for 500kg static load

  • Precision Adjustment: 30mm vertical travel with ±0.2mm repeatability via ergonomic lever

  • Corrosion-Resistant Build: Zinc-nickel plated steel housing (1200hr salt spray tested to ASTM B117)

  • Low-Profile Design: 85mm installed height fits confined spaces


Function

  1. Dual-Mode Operation:

    • Mobile Mode: Wheels extended for smooth equipment relocation (≤60N rolling resistance)

    • Leveling Mode: Wheels retracted to transfer load onto steel base for vibration-free stability

  2. Instant Conversion: Single-lever action switches between modes in <3 seconds

  3. Load Redistribution: Automatic weight transfer to base plate reduces wheel fatigue by 40%


Application

  • Industrial Machinery: CNC mills (JIS B 6336 compliant), injection molding machines

  • Material Handling: Assembly line jigs (compatible with Bosch Rexroth profiles)

  • Medical: Radiolucent variants available for CT/PET scanner carts

  • Aerospace: FAA-approved version for ground support equipment

  • Food Processing: NSF-certified stainless steel models



Technical Parameters



Size
Base plate size(mm)
Screw specification(mm)
Installation height(mm)
loading capacity(kg)
PA
PP
TPR
T50 level caster
50*63
M8*25
78+5
110
95
65
T50 swivel caster
50*63
M8*25
78
110
95
65
T50 swivel caster with brake
50*63
M8*25
78
110
95
65
