Specifications
Brand Name :
EDL
Model Number :
363S-76
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
3 Inch Swivel Caster Wheels
Wheel Diameter :
3inch(75mm)
Dynamic Load :
80kg
Tread Material :
TPU
Core Material :
PP
Mounting Type :
Swivel/Brake
Mounting Height :
107mm
Frame Material :
Cold-Rolled Plate
Surface Treatment :
Zinc Coating
Standard Threaded :
M12X25
Bracket Thickness :
2mm
Bracket Width :
33mm
Wheel width :
25mm
Bearing :
Double ball bearing
Tread Color :
Grey
Applicable Temperature :
-20℃~80℃
Tread Hardness :
95A
Description

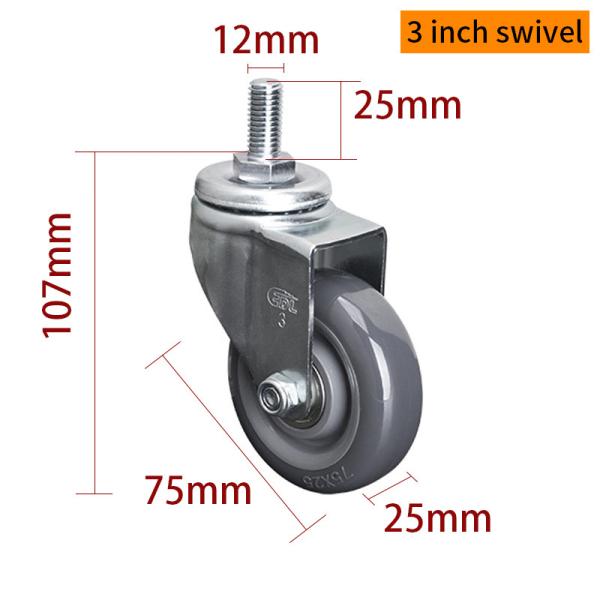

EDL Light Duty 3inch 80kg Threaded TPU Caster by Swivel and Brake type 363S-76


The EDL 3-inch Light Duty Threaded TPU Caster 363S-76 is designed for smooth and quiet mobility while ensuring excellent durability. Made with a gray TPU (Thermoplastic Polyurethane) tread, this caster provides superior elasticity, shock absorption, and floor protection, making it ideal for various indoor and commercial applications. The caster features both a dual plastic brake and a side wheel brake, offering enhanced control and stability during operation. The 2mm thick bracket ensures a sturdy and reliable structure, while the threaded installation design allows for quick and secure attachment. With a load capacity of up to 80kg, this caster is perfect for office chairs, workstations, and light-duty carts that require both mobility and stability.


Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core Tread Bearing

Applicable

Temperature

Hardness

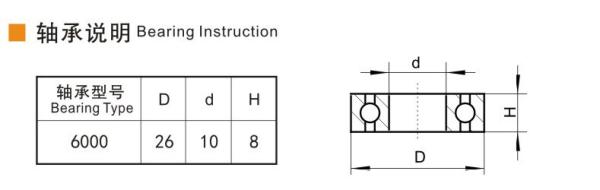

363-76 3" 75mm 25mm 33mm 80KG PP

TPU

Double ball

bearing 6000

-20℃~80 95A

3 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-763 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-76

3 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-763 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-76

3 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-763 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-76

3 Inch Swivel Caster Wheels , 75mm Castors With Brakes 363S-76

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable
