Specifications
Brand Name :
Dajin
Model Number :
HTC-001
Certification :
Rosh/CE/IOS
Place of Origin :
China
MOQ :
500
Price :
Negotiation
Payment Terms :
T/T,L/C
Delivery Time :
25
Name :

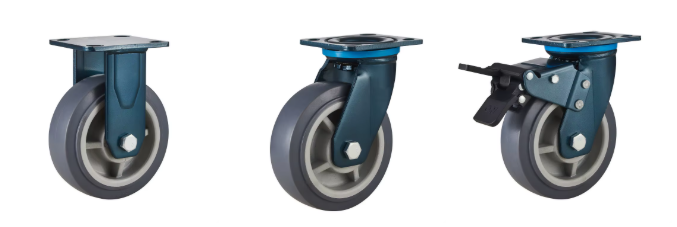

4 / 5 / 6 / 8 Inch Heavy Duty TPR Swivel Caster Wheels – Industrial Mobility Solution
Tread Materials :
Thermoplastic Rubber (TPR)
Wheel Diameter :
4″ / 5″ / 6″ / 8″
Tread Width :
50 mm
Bearing :
Double ball bearing
Load Height :
146/164/200/240 mm
Load Capacity :
128 / 220 / 250 / 300 kg per caster
Plate Size :
115×100 mm
Hole Spacing :
92*67/76*76 mm
Mounting :
Top-plate
Style :
Rigid & Swivel
Application :
Warehouse, Factory, Workshop
Description
4 / 5 / 6 / 8 Inch Heavy Duty TPR Swivel Caster Wheels – Industrial Mobility Solution
Features

These heavy duty swivel caster wheels feature thermoplastic rubber (TPR) tread, which offers excellent shock absorption, quiet rolling, and non-marking performance that protects floor surfaces. TPR material provides good elasticity for reduced vibration and smoother movement across uneven surfaces. Equipped with high-strength brackets and premium double bearings, these casters deliver stable rotation and long service life.

Function

Designed for industrial carts, equipment platforms, and mobile workstations, these caster wheels enable smooth 360° swivel mobility that eases pushing and maneuvering heavy loads. The TPR tread also helps absorb impact and minimize noise during operation. Optional braking versions offer safe locking and secure positioning when required.

Application

These TPR caster wheels are ideal for a wide range of industrial and commercial applications including warehouse logistics carts, factory trollies, equipment dollies, material handling systems, display racks, and institutional use in hospitals, hotels, and offices where noise reduction and floor protection are important.

Product Advantages
  • Quiet & Floor-Friendly TPR Wheels — Soft rubber surface reduces noise and prevents floor marking.
  • Excellent Shock Absorption — TPR minimizes vibration and impact on floor surfaces.
  • Stable Mobility & Swivel Design — 360° swivel enables flexible direction changes.
  • Heavy Duty Construction — Designed for industrial loads (typically 160–400 kg depending on size).
  • Versatile Use — Available as swivel, rigid (fixed) or swivel with brake.
Technical Parameters

4 / 5 / 6 / 8 Inch Heavy Duty TPR Swivel Caster Wheels – Industrial Mobility Solution

SIZE
Tread Width(mm)
CAPACITY(kgs)
Plate Size(mm)
Load Height(mm)
4 inch
50
180
115*100
146
5 inch
50
220
115*100
164
6 inch
50
250
115*100
191
8 inch
50
300
115*100
240
