Specifications
Tread width :
50mm
Swivel options :
Swivel / Rigid / Swivel with Brake
Product name :
125 mm Industrial Universal Swivel Caster Wheels – Cast Iron Core PU with Gold Zinc-Plated Bracket
Wheel Material :
Polyurethane (PU)
Core Material :
Cast Iron
Bracket Material :
Gold Zinc-Plated Steel
Bearing :
double ball bearings
Brand Name :
PLEYMA
Certification :
CE/REACH
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T,L/C
Supply Ability :
10000
Delivery Time :
5-8 days
Plate size :
92X65mm
Wheel diameter :
3"/4"/5"
Customized support :
OEM, ODM
Load Capacity :
80/100/130 kgs
Color :
red
Applicable Environment :
Factory, Warehouse, Logistics
Description

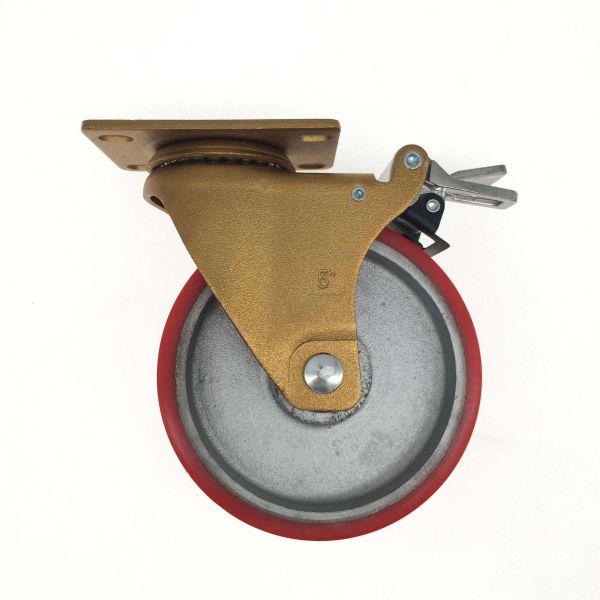

125 mm Industrial Universal Swivel Caster Wheels – Cast Iron Core PU with Gold Zinc-Plated Bracket

Features

These industrial swivel caster wheels feature a premium cast iron core encased in durable polyurethane (PU) tread, delivering high wear resistance, shock absorption, and quiet rolling performance. The bracket and fork are treated with gold zinc plating, providing excellent corrosion protection and long-lasting durability in demanding industrial environments. Equipped with precision double-ball bearings, these casters offer smooth 360° rotation and low rolling resistance for effortless mobility.

Function

Designed for heavy duty mobility, these swivel caster wheels support smooth movement of industrial carts, trolleys, equipment bases, and machinery platforms. The resilient PU tread absorbs shock and dampens vibration while protecting flooring surfaces. The 360° swivel mechanism allows flexible direction changes, making these casters ideal for applications requiring frequent repositioning and maneuverability.

Applications

These caster wheels are suitable for a wide range of industrial and commercial environments, including factory floors, warehouses, workshops, and logistics centers. They are ideal for material handling equipment, assembly line carts, mobile workstations, storage platforms, and manufacturing systems where durability, corrosion resistance, and maneuverability are required.

Product Advantages
  • Cast Iron Core with PU Tread – Combines high load capacity with excellent wear resistance and shock absorption.
  • Gold Zinc-Plated Bracket – Provides superior corrosion resistance and long service life.
  • Smooth 360° Swivel – Precision double-ball bearings support effortless rotation and maneuverability.
  • Floor Protection & Quiet Rolling – PU tread minimizes floor marking and reduces noise.
  • Versatile Industrial Use – Suitable for heavy duty carts, trolleys, platforms, and equipment.
Technical Parameters

Feature: ·Chrome Plated ·Plain Bearing ·Double Ball Bearing Race Way ·Plastic Cor PU Wheel

Wheel Diameter Load Capcity

Tread

Width

Load

Height

Swivel

Radius

Plate

Size

Hole

Spacing

Hole

Dia

Threaded

Size

75mm/3''

80kgs

(176lbs)

32mm 106.5mm 71.5mm 92X65mm

76.5X44.5mm

69.5x44.5mm

8.5mm M12X30
100mm/4''

100kgs

(220lbs)

32mm 129mm 84mm 92X65mm

76.5X44.5mm

69.5x44.5mm

8.5mm M12X30
125mm/5''

130kgs

(286lbs)

32mm 155mm 94.5mm 92X65mm

76.5X44.5mm

69.5x44.5mm

8.5mm M12X30
