Specifications
Brand Name :
PLEYMA
Certification :
CE/REACH
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T,L/C
Supply Ability :
10000
Delivery Time :
5-8 days
Packaging Details :
Master cartons
Product name :
Industrial Heavy Duty Trolley Caster Wheel – TPR Wheel with 304 Stainless Steel Bracket
Wheel Diameter :
100mm, 125mm, 150mm, 200mm
Wheel Material :
TPR
Bearing :
double ball bearing
Plate Hole Centers :
115*100 mm
Wheel Width :
50 mm
fork material :
SUS 304 stainless steel
Customization Support :
OEM / ODM
Mounting Plate :
Standard top-plate swivel mount
Installtion Height :
146 / 164 / 190 / 240 mm
After Warranty Service :
Video technical support
Load capacity :
180/220/250/300 kg
Description
Industrial Heavy Duty Trolley Caster Wheel – TPR Wheel with 304 Stainless Steel Bracket

Features

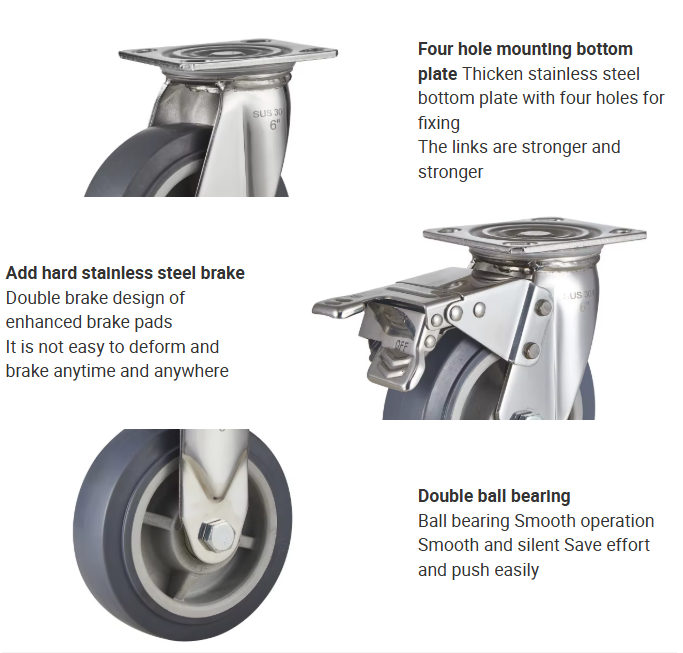

These industrial caster wheels are made with thermoplastic rubber (TPR) wheels paired with 304 stainless steel brackets to deliver outstanding durability, corrosion resistance, and smooth performance. The TPR wheel material provides quiet rolling, excellent floor protection, and good shock absorption. The 304 stainless steel frame ensures strong structural support and long-lasting performance in harsh environments. Precision bearings ensure easy movement and minimal rolling resistance, while optional brake configurations allow reliable locking and secure positioning.

Function

This heavy duty caster wheel is designed to make heavy equipment, industrial carts, workbenches, and trolleys easier to move and control. The swivel design allows flexible 360° motion, enabling effortless direction changes with reduced physical effort. Optional braking mechanisms ensure the trolley can be securely fixed in place when needed to prevent rolling during loading, unloading, or work pauses.

Applications

These TPR caster wheels with 304 stainless steel brackets are ideal for industrial and commercial environments including factory floors, warehouses, logistics centers, workstations, food processing facilities, laboratories, hospitals, and wet or corrosive areas. Their corrosion resistance, smooth rolling, and reliable stability make them suitable for a wide range of heavy handling applications.

Product Advantages

This heavy-duty stainless-steel caster combines rust-proof, corrosion-resistant construction with floor-safe, quiet TPR rolling — making it a solid choice for industrial, medical, food-processing, restaurant, hotel, or wet-environment applications. Its robust load capacity, durable build, and flexible configuration options offer reliable mobility and longevity even under demanding conditions.


Technical Parameters
Industrial Heavy Duty Trolley Caster Wheel – TPR Wheel with 304 Stainless Steel Bracket
SIZE Tread Width(mm) CAPACITY(kgs) Plate Size(mm) Load Height(mm)
4 inch 50 180 115*100 144
5 inch 50 220 115*100 165
6 inch 50 250 115*100 191
8 inch 50 300 115*100 241
Industrial Heavy Duty Trolley Caster Wheel – TPR Wheel with 304 Stainless Steel Bracket
Frequently Asked Questions
Why choose us?
  • Free charge & fast action for samples
  • OEM & ODM acceptable
  • Short lead time
  • LOGO on products are acceptable
  • Advanced machinery and equipments
  • Stict quality control system
  • Package could be adjusted
  • Quick and effective reponse by salesmen

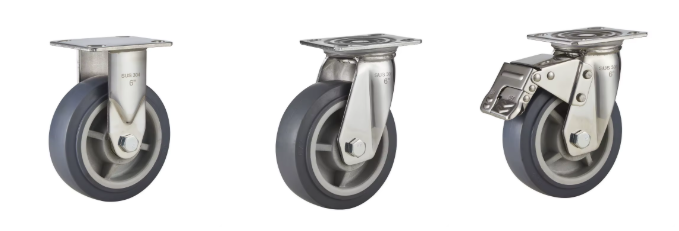

Product Display
Industrial Heavy Duty Trolley Caster Wheel – TPR Wheel with 304 Stainless Steel Bracket
