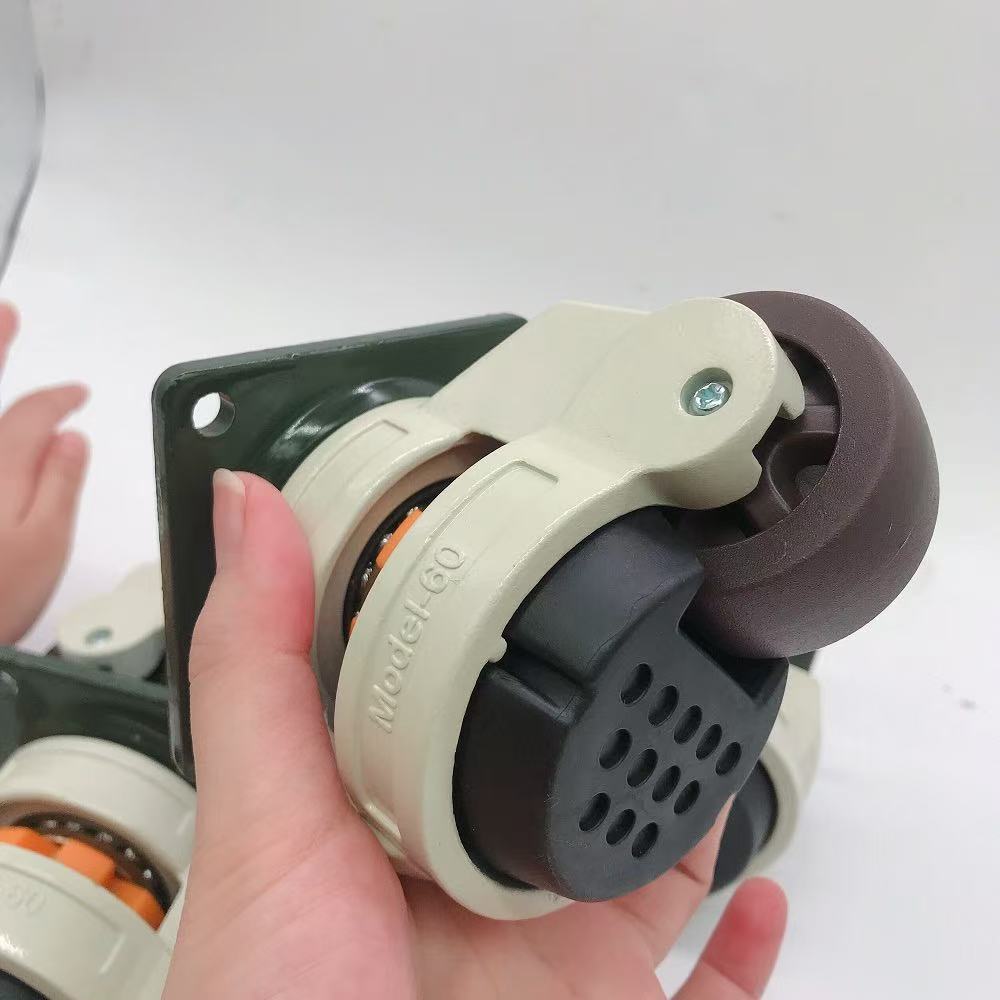

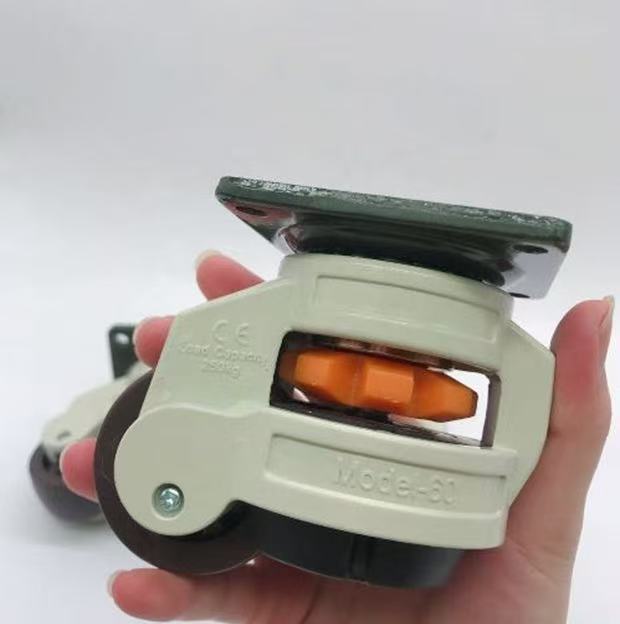

GD60F Heavy Duty Leveling Caster Wheel with 500kg Capacity, Aluminum Alloy Housing, and Dacromet Coating
GD60F Heavy Duty Leveling Caster Wheel with 500kg Capacity, Aluminum Alloy Housing, and Dacromet Coating
Specifications
Delivery Time :
25
Housing Material :
AD12 Aluminum Alloy
Model Number :
HTC-001
Single Load Capacity :
250 kg
MOQ :
500
Packaging Details :
21X21X21 cm
Wheel Diameter :
50 mm
Surface Treatment :
Dacromet Coating (Superior Corrosion Resistance)
Payment Terms :
T/T,L/C
Base Material :
Solid Nylon (Exceptional Rigidity)
Price :
4.2
Wheel Width :
24 mm
Certification :
Rosh/CE/IOS
Total Capacity (4 Casters) :
500 kg
Brand Name :
Dajin
Product Name :
GD60F (Plate Mount Type)
Place of Origin :
China
Wheel Material :
High-Strength Nylon (PA)
Description
GD60F Heavy Duty Leveling 500kg Adjustable Aluminum Alloy Housing Caster Wheel
Product Overview
The GD60F Heavy Duty Leveling Caster Wheel combines exceptional strength with precision engineering. Featuring an aluminum alloy housing and robust construction, this caster is designed to handle demanding industrial applications while providing reliable leveling and mobility solutions.
Key Features
  • Unmatched Strength & Durability: Solid nylon base with incredible structural integrity resists deformation under immense pressure
  • Robust Construction: AD12 aluminum housing with protective Dacromet surface treatment withstands harsh industrial environments
  • Superior Corrosion Resistance: Long-lasting performance in demanding conditions
  • Exceptional Stability: Wide 56mm PA nylon wheel provides enormous load-bearing surface area
  • Floor Protection: Distributes ground pressure effectively to minimize floor damage
  • Controlled Movement: Ensures stable and manageable repositioning of heavy equipment
Primary Functions
  • Stabilize & Level: Lock equipment firmly in perfectly level position on uneven floors
  • Support Immense Weight: Safely bear extreme static and dynamic loads up to 1500kg per caster
  • Enable Controlled Movement: Allow safe repositioning of heavy machinery when needed
  • Protect Floors: Distribute extreme weight over wide wheel surface to minimize damage
  • Withstand Harsh Conditions: Resist corrosion, impacts, and wear in demanding industrial settings
Applications
  • Heavy CNC Machining Centers & Milling Machines
  • Industrial Stamping Presses & Metal Forming Equipment
  • Large Power Generators & Diesel Generator Sets
  • Hydraulic Presses & Forging Machinery
Technical Specifications
Style Wheel Diameter (mm) Tread Width (mm) Bearing Load Height (mm) Adjustable Height (mm) Plate Size (mm) Hole Spacing (mm) Load Capacity 1pc (kgs) Load Capacity 4pc (kgs) Packing Quantity (pcs/ctn)
GD40F 40 19.2 Double ball bearing 75 8 55553 42*42 Ø7 50 100 48
GD60F 50 24 Double ball bearing 85 10 73733 58*58 Ø7 250 500 32
GD80F 62 30.7 Double ball bearing 110 12 90905 70*70 Ø9 500 1000 24
GD100F 75 32 Double ball bearing 120 12 95955 70*70 Ø11 750 1500 16
GD120F 75 32 Double ball bearing 120 12 95956 70*70 Ø11 1000 2000 16
GD150F 90 56 Double ball bearing 120 12 98*98 70*70 1500 3000 8
Factory Images
GD60F Heavy Duty Leveling Caster Wheel with 500kg Capacity, Aluminum Alloy Housing, and Dacromet Coating GD60F Heavy Duty Leveling Caster Wheel with 500kg Capacity, Aluminum Alloy Housing, and Dacromet Coating GD60F Heavy Duty Leveling Caster Wheel with 500kg Capacity, Aluminum Alloy Housing, and Dacromet Coating GD60F Heavy Duty Leveling Caster Wheel with 500kg Capacity, Aluminum Alloy Housing, and Dacromet Coating
