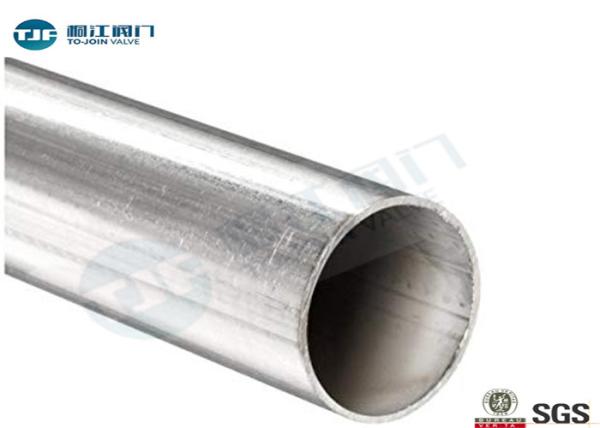

ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade
Specifications
Brand Name :
TONGJIANG
Model Number :
Stainless Steel Pipe
Certification :
ROSH, IOS 9001
Place of Origin :
CHINA
MOQ :
5 TONS
Price :
FOB USD 400-550/ Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 tons per Month
Delivery Time :
7-10 days
Packaging Details :
Standard Export Packing
Stee Tube Thickness :
Type 304/304L, 316/316L Welded
Steel Tube Grade :
ASTM A312
Steel Tube Standard :
BS,API,GB, ASTM,DIN,EN,JIS
Steel Tube Technical :
Welded Type
Steel Tube Application :
Handrails, Architectural design
Steel Tube Size :
1”(25mm) to 16”(400mm)
Description

Polished Stainless Steel Pipe in 316/ 316L Grade for Handrail,ASTM A554

1. INTRODUCTION Video

Polished 304 Stainless Pipe is a standard stainless pipe that has been polished to a 180 Grit Brushed Finish on its exterior for cosmetic and ornamental applications. Unlike the dull mill finish of standard stainless pipe, this polished stainless steel pipe allows your projects to have a more finished look with excellent corrosion resistance making it ideal for handrails, architectural design, restaurant and store fixtures, trade show displays, marine components and more. Just like standard stainless pipe it has an interior weld seam.

SPECIFICATIONS:

Type 304/304L Welded, ASTM A312

FINISH:

180 Grit Polish, Brushed Finish

CHARACTERISTICS:

Welding = Excellent
Machining / Grinding = Fair
Bending / Forming = Good
Wear Resistance = Excellent
Corrosion Resistance = Excellent

MECHANICAL PROPERTIES:

Tensile Strength = 85,800 psi
Yield Point = 34,000 psi
Elongation = 60% in 2" ; Elasticity = 29,000 ksi
Shearing Strength = 11,500 psi
Brinell Hardness = 170; Density = .289 lb/in

AVAILABLE LENGTHS:

4ft. 6ft, 8ft, 10ft, 20ft, or Cut to Size
Stock lengths may vary +/- 1/4"
Cut to Size Lengths +/- 1/16"

HOW TO MEASURE:

Nominal Inside Diameter (A) X Wall Thickness - Schedule (B)

2. Technique Parameter of Stainless Steel Tube

Specification Outside Diameter Thickness

Outside Diameter

Tolerance

Thickness

Tolerance

Length

Tolerance
ASTM A554 ≤12.7 0.51~1.24 ±0.10

±10.00%T(±10% of nominal

wall thickness)

 ±4.80 -0
＞12.7~25.4 0.51~1.65 ±0.13
＞1.65~3.4 ±0.25
＞25.4~38.1 0.64~1.65 ±0.20
＞1.65~3.4 ±0.25
＞38.1~50.8 0.64~1.24 ±0.25
＞1.24~2.11 ±0.28
＞50.8~63.5 ＞2.11~3.78 ±0.30
0.81~1.65 ±0.30
＞1.65~2.77 ±0.33
＞63.5~88.9 ＞2.77~4.19 ±0.36
0.81~4.19 ±0.36
＞88.9~127 0.89~4.19 ±0.51
＞4.19 ±0.64
＞127~168 1.24~6.35 ±0.64
＞6.35 ±0.76

3. PRODUCT LINE

ASTM A554 Welded Steel Pipe , Polished Stainless Steel Pipe 316 / 316L Grade

CONTACT

For further information, Please contact me !

Ms. Angela

Tel: 86 571 86991717

Mobile:+86 135 8842 9004(Whatsapp)

Skype:angelazhuo1

Email: angela@tjfmcn.com
