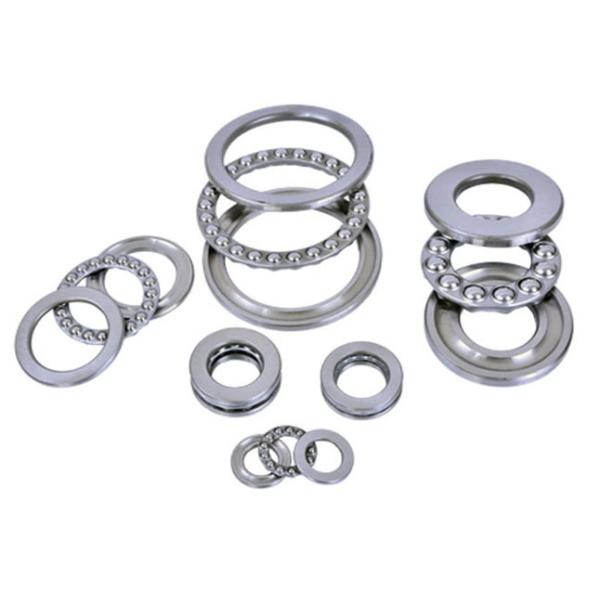

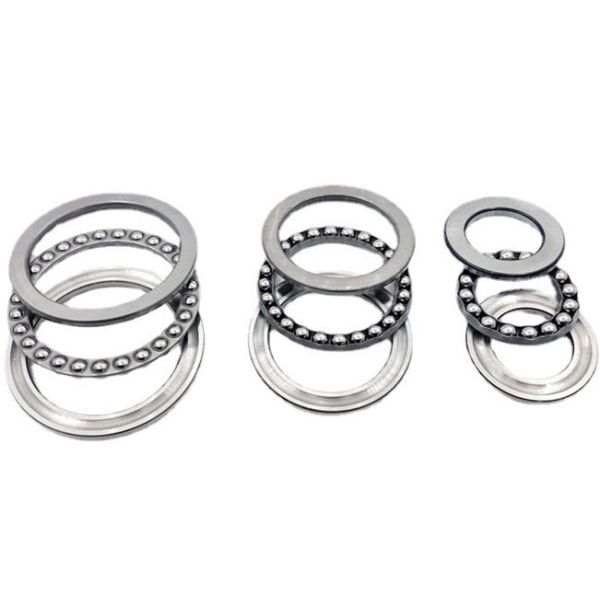

51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
Specifications
Model :
Customizable
Thickness :
39 mm
MOQ :
1
Outer diameter :
170 mm
Brand Name :
Kesle
Bore diameter :
120 mm
Delivery Time :
5-8 work days
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Type :
Flat Thrust Bearing
Bearing Material :
Bearing Steel GCr15
Place of Origin :
CHINA
Description
51224 Flat Thrust Bearing High Precision Axial Load Ball Bearing
Product Overview

The 51224 Thrust Ball Bearing is a high-precision axial load solution designed for demanding industrial applications.

Basic Parameters
  • Bore diameter (d): 120mm
  • Outer diameter (D): 170mm
  • Thickness (T): 39mm (single bearing)
  • Type: Single-direction thrust ball bearing (51000 series)
  • Weight: Approximately 3.58kg (e.g., NSK 51224)

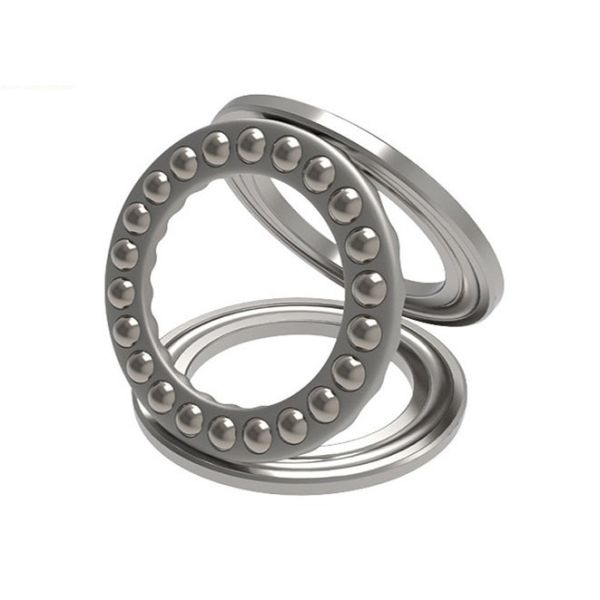

  • Structure: Single-row, non-separable design with flat housing washer, shaft washer, and steel balls
Core Performance Specifications
Load Capacity
  • Dynamic load rating (Cr): 141-154kN (varies by brand)
  • Static load rating (C0r): 430-470kN (NACHI models reach 470kN)
  • Material: GCr15/SUJ2 high-carbon chromium bearing steel (surface hardness HRC58-62)
Speed & Precision
  • Limiting speed: 1,200rpm (grease-lubricated), 1,800rpm (oil-lubricated)
  • Precision class: Standard P0; customizable to P4 for precision equipment
Technical Features
  • Axial load-oriented: Withstands unidirectional axial force only
  • Low-friction design: Optimized raceway curvature and cage structure
Structural & Environmental Adaptability
  • Mounting fit: Shaft: h8, Housing bore: H8
  • Temperature range: Standard: -20°C to 120°C, High-temperature: up to 200°C
  • Sealing options: Open, 2RS (double rubber seals), or ZZ (double metal shields)
Typical Applications
  • Industrial Machinery: Presses, forging equipment, gearboxes, machine tool spindles
  • Transportation: Automotive clutch release bearings, railway freight car axle boxes
  • Precision Equipment: Medical devices, food packaging machinery
Maintenance & Lubrication Guidelines
  • Lubrication options: Grease lubrication (lithium-based) or oil lubrication (ISO VG 46-68)
  • Lubrication interval: Normal: 8,000-12,000 hours, High-temperature: 4,000 hours
Certifications & Compatibility
  • Standards compliance: ISO 9001:2015 quality management system, CE-certified models available
  • Cross-brand replacement: Interchangeable with NSK 51224, NACHI 51224, HRB 51224
Customization Options
  • Material upgrades: Ceramic hybrid bearings, stainless steel (SUS440C)
  • Special designs: Phosphating coating, laser marking for IIoT tracking
Selection Considerations
  • Load direction: Single-direction design requires paired mounting for bidirectional forces
  • Fit precision: Control cylindricity error within 0.01mm
  • Temperature compensation: Reserve 0.03-0.05mm axial expansion clearance
Summary

The 51224 thrust ball bearing features high axial load capacity (up to 470kN static) and cost-effectiveness, making it widely used in industrial machinery, transportation, and precision equipment. With scientific lubrication and maintenance, it delivers reliable long-term operation in environments ranging from -20°C to 200°C.
