Specifications
Model NO :
30305
Color :
natural metal color
properties :
fatigue resistance
Weight :
0.26kg
MOQ :
1
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Delivery Time :
5-8 work days
Model Number :
30305
Brand Name :
Kesle
Place of Origin :
CHINA
material :
high-carbon chromium bearing steel
Model :
Customizable
Description

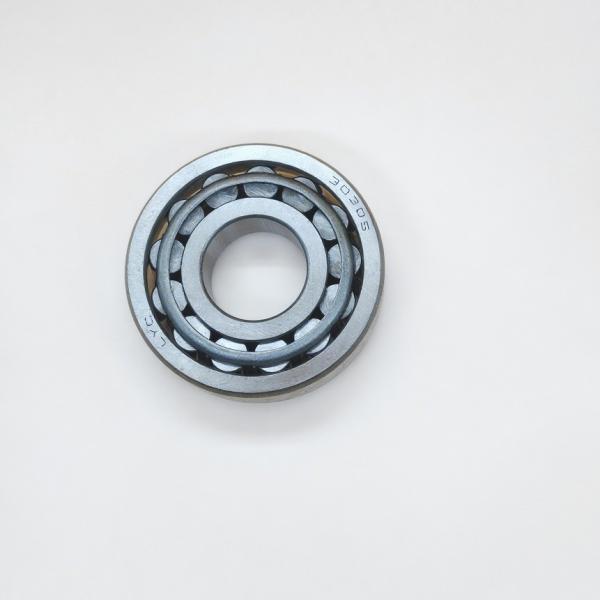

30305 Tapered Roller Bearing IKO Roller Bearing For Excavators Wind Power / Construction Machinery
DOYE IKO 30305 Tapered Roller Bearings For Excavators Wind Power And Construction Machinery
Product Overview
The 30305 tapered roller bearing is a benchmark product among high-end bearings, specially designed for high-load and high-speed scenarios. It features excellent reliability and cost-effectiveness. As a classic model of single-row tapered roller bearings, its split inner and outer ring structure facilitates installation and debugging, making it widely used in automotive, wind power, construction machinery and other fields.
30305 Tapered Roller Bearing IKO Roller Bearing For Excavators Wind Power / Construction Machinery
Core Parameters
Parameter Value
Inner diameter 25 mm
Outer diameter 62 mm
Total width 18.25 mm
Contact angle 11.31°
Radial load capacity 55.3 kN
Axial load capacity 43 kN
Limiting speed 12,000 r/min
Material Specifications: Vacuum-degassed bearing steel with hardness of HRC 60-64 (oxygen content ≤ 8ppm), providing 20% longer service life than traditional bearings.
Precision Classes Available: P0 (general grade) and P6 (precision grade). For P6 class, raceway roundness error ≤ 1.5 μm with 30% reduced vibration value.
Core Technologies and Manufacturing Processes
Material Innovation
Using vacuum-degassed bearing steel (52100 chromium steel). The microstructure is optimized through quenching + tempering processes, with wear resistance 18% higher than that of ordinary electroslag steel. Suitable for harsh environments including high temperatures (-30°C to 110°C) and high dust levels.
Precision Design
  • Split structure: Inner and outer rings can be installed separately, supporting preload adjustment for high-precision transmission systems
  • Stamped steel cage: Optimizes roller guidance path, reducing friction loss by 15% and improving stability during high-speed operation
Construction Machinery Applications
  • Excavator travel mechanism: Widely used in excavators, bearing axial loads of 43 kN with failure rate less than 0.8%
  • Mining machinery: Replaces FAG bearings in gold mine crushers, reducing costs by 30% while increasing wear resistance by 18%
30305 Tapered Roller Bearing IKO Roller Bearing For Excavators Wind Power / Construction Machinery
Tapered roller bearings are widely used in industries such as automotive, rolling mills, mining, metallurgy, and plastic machinery.
