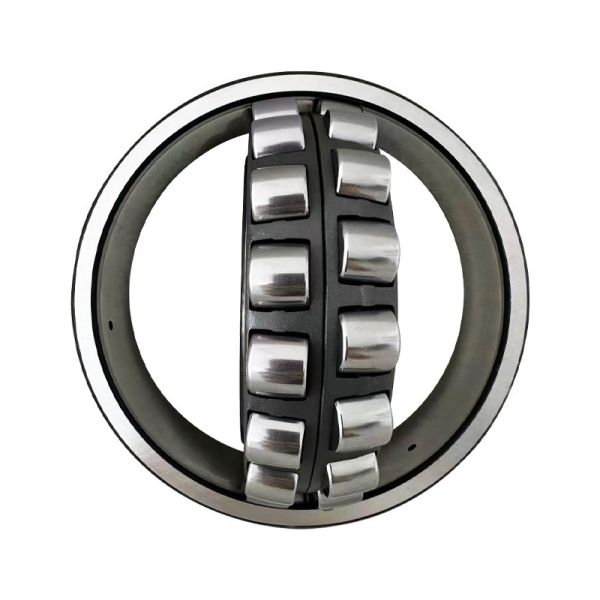

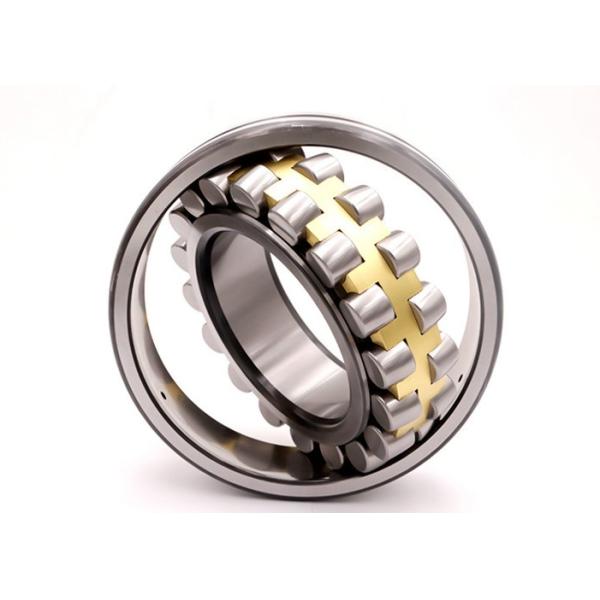

23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
Specifications
MOQ :
1
Delivery Time :
5-8 work days
Width :
52mm
Inner Diameter :
100mm
Brand Name :
Kesle
Model :
Customizable
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Outer Diameter :
165mm
Bearing Series :
Self Aligning Roller Bearings
Bearing Material :
Bearing Steel GCr15
Place of Origin :
CHINA
Description
23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing
23120CA Spherical Roller Bearing with 100mm Bore, 165mm OD, 52mm Width - High Load Capacity
Basic Information
  • Bearing Type: Double-row spherical roller bearing
  • Model Interpretation: "231" stands for the bearing series; "20" indicates the inner diameter size (inner diameter = 20 × 5 = 100mm); "CA" means it is equipped with a brass solid cage and has a cylindrical bore design.
Dimensional Specifications
Dimension Type Value (mm)
Inner Diameter (d) 100
Outer Diameter (D) 165
Width (B) 52
Structural and Performance Features
Structural Design
  • Self-aligning Structure: The outer ring raceway is spherical, and the inner ring contains two rows of raceways. Cooperating with the barrel-shaped rollers, it can automatically compensate for shaft deflection, installation errors, and misalignment (allowing an aligning angle of 1°-2.5°), thus reducing additional stress and wear.
  • Cage: The brass solid cage (CA) has low noise and certain self-lubricating properties, which can stably carry the rollers and adapt to working conditions with multiple rolling elements and limited space.
  • Rolling Elements: The barrel-shaped rollers are in linear contact with the raceways, enabling them to bear large radial loads and bidirectional axial loads.
Core Performance
  • High Load-carrying Capacity: Suitable for heavy-load and impact load scenarios, meeting the strict load requirements of heavy machinery.
  • Wear Resistance and Fatigue Resistance: Made of high-quality bearing steel and processed through professional heat treatment, it can operate stably for a long time in harsh environments and has a long service life.
  • Stable Operation: The structural design reduces vibration and noise, improving the operation accuracy of the equipment.
Application Fields
  • Mining machinery (crushers, vibrating screens, etc.)
  • Metallurgical equipment (rolling mill gearboxes, continuous casters, etc.)
  • Papermaking machinery (various load-bearing components of paper machines)
  • Power equipment (hydraulic generators, vertical motors, etc.)
  • Construction machinery (tower cranes, mills, etc.)
Technical Parameters
Basic rated radial dynamic load: 287kN
Limiting Speed: 2000rpm (grease lubrication), 2800rpm (oil lubrication)
Weight: Approximately 4.42kg
