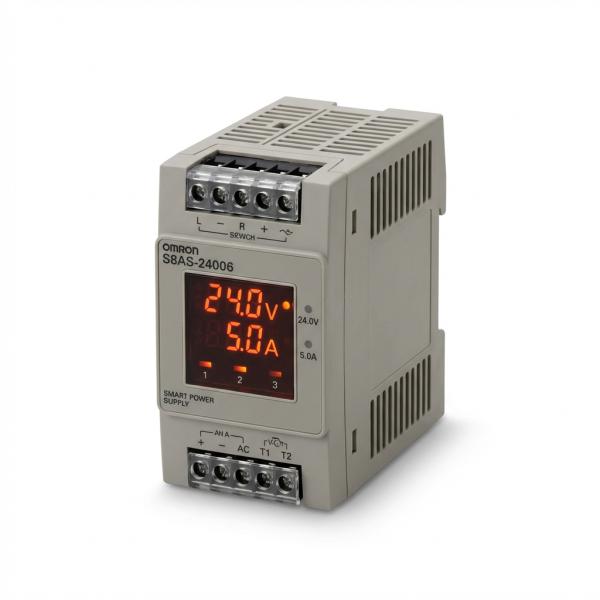

Omron S8AS-24006 24VDC Smart Power Supply with 6-CH Breaker
Omron S8AS-24006 24VDC Smart Power Supply with 6-CH Breaker
Omron S8AS-24006 24VDC Smart Power Supply with 6-CH Breaker
Omron S8AS-24006 24VDC Smart Power Supply with 6-CH Breaker
Specifications
Model Number :
S8AS-24006、S8AS-48008、S8AS-24006R、S8AS-48008R
Certification :
UL 508, CSA, CE Approved
Place of Origin :
Japan
MOQ :
1
Price :
$279~$550
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
3-5Workdays
Packaging Details :
original package
Output Voltage :
24V DC (Smart Regulated)
Number of Channels :
6-Channel / 8-Channel (Integrated Breaker)
Maintenance Function :
Predictive Life Forecast & Peak Current Monitor
Tripping Mode :
Standard / Instantaneous (Adjustable)
Communication :
RS-485 (Modbus/RTU) Available on R-models
Warranty :
Original Manufacturer's Warranty
Shipping Term :
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge :
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
Description
Omron S8AS-24006 24VDC Smart Power Supply with 6-CH Breaker
Omron S8AS Series: Smart Power Management & Protection

The Omron S8AS is a revolutionary 24V DC power supply that integrates digital circuit breakers into one compact DIN-rail unit. It simplifies your control panel by eliminating external fuses while providing real-time monitoring and predictive maintenance data.

Model Specifications
Model Number Output Power Output Channels Tripping Current
S8AS-24006 240W 6 Channels 0.5A - 3.8A (Adjustable)
S8AS-48008 480W 8 Channels 0.5A - 3.8A (Adjustable)
S8AS-24006R 240W 6 Channels Includes RS-485 Communication
S8AS-48008R 480W 8 Channels Includes RS-485 Communication
Key Features
  • Integrated Protection: 6 or 8 independent channels with adjustable digital circuit breakers
  • Predictive Maintenance: Displays remaining service life and peak current to prevent downtime
  • Space Saving: Replaces multiple traditional breakers, reducing panel size by up to 50%
  • Digital Display: Real-time visualization of voltage, current, and error codes
Application Fields
  • Automotive & Semiconductor: High-reliability power for sensitive control circuits
  • Compact Control Panels: Space-saving power management for small-scale machinery
  • IoT & SCADA Systems: Remote monitoring via RS-485 (R-models)
Frequently Asked Questions
Can I set different current limits for each channel?
Yes, each branch can be individually adjusted to match specific load requirements.
What happens if one channel shorts out?
Only the affected channel will trip. The rest of the system remains powered and operational.
Is it easy to install?
It supports standard 35mm DIN-rail mounting with high-quality screw terminals for secure wiring.
Does the S8AS support abnormal voltage detection and recording?
Yes. The S8AS series can detect and display input voltage fluctuations. It also features a "peak current holding" function, which records the maximum current drawn by each channel. This is extremely helpful for diagnosing intermittent faults that are otherwise difficult to capture.
What is the "Maintenance Forecast" based on, and how accurate is it?
The forecast is based on the health of the internal electrolytic capacitors, which are the most life-limited components in any power supply. The S8AS calculates the remaining service life based on internal operating temperatures and load history, providing a reliable multi-year countdown to help you plan preventative replacements.
Can I manually trip or reset a channel without using the front buttons?
Yes, on models with RS-485 communication (R-suffix), you can remotely reset or trip individual channels through your PLC or PC. Additionally, there is a dedicated external input terminal for emergency remote shutdown, allowing for quick system-level isolation when needed.
