V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD
V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD
Specifications
Model Number :
V1000
Place of Origin :
Japan
MOQ :
1
Price :
USD100-USD1200
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
3-5Workday
Product name :
Frequency Converte Inverter
Power Phase Number :
Single Phase200 - 240V Three Phase200 - 240V/380 - 480V
Rated Power :
0.1kW - 18.5kW
Warranty :
Original Factory Warranty
Pakage :
Original Pakage
Shipping term :
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
Description
V1000 Small Vector Control Frequency Inverter and Converter
V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD V1000 Vector Control Frequency Inverter 0.1kW-18.5kW Single Phase To Three Phase VFD
Yaskawa inverters have long been acclaimed for their high performance, versatile functionality, and exceptional quality. The V1000 inverter is engineered with enhanced applicability and user-friendliness at its core.
Product Features
Wide Adaptability & Strong Versatility
Drives both standard induction motors and synchronous motors without requiring dedicated inverters, enabling component standardization and reducing spare parts inventory costs. Equipped with RS-422/485 communication as standard; compatible with various mainstream open fieldbus networks via optional communication cards.
Efficient Operation & High Stability
Features standard current vector control, delivering 200% torque at 0.5Hz and torque limiting functionality. Built-in auto-tuning optimizes motor performance without complex debugging. Over-excitation braking shortens deceleration time; supports two instantaneous power failure compensation methods.
Easy Operation & Efficient Commissioning
Automatically matches optimal parameters for specific applications. Optional USB copy unit allows one-click parameter cloning across multiple devices. Compatible with DriveWizard software for centralized parameter management. DriveWorksEZ visual programming enables custom inverter configurations via drag-and-drop.
Compact Design & Flexible Installation
Optimized component layout through thermal simulation technology reduces volume by up to 70% compared to previous Yaskawa models. Supports gapless side-by-side installation, minimizing control cabinet space requirements.
Safety & Easy Maintenance
Complies with EN954-1 Cat.3 and IEC/EN61508 SIL2 safety standards. Removable terminal block with parameter backup allows quick device replacement. Built-in lifetime diagnosis and warning function alerts for wear part maintenance.
Eco-Friendly & Low Noise
RoHS-compliant; adopts Swing PWM technology to suppress electromagnetic interference and reduce operating noise. When paired with synchronous motors, achieves energy savings and extends motor bearing lifespan.

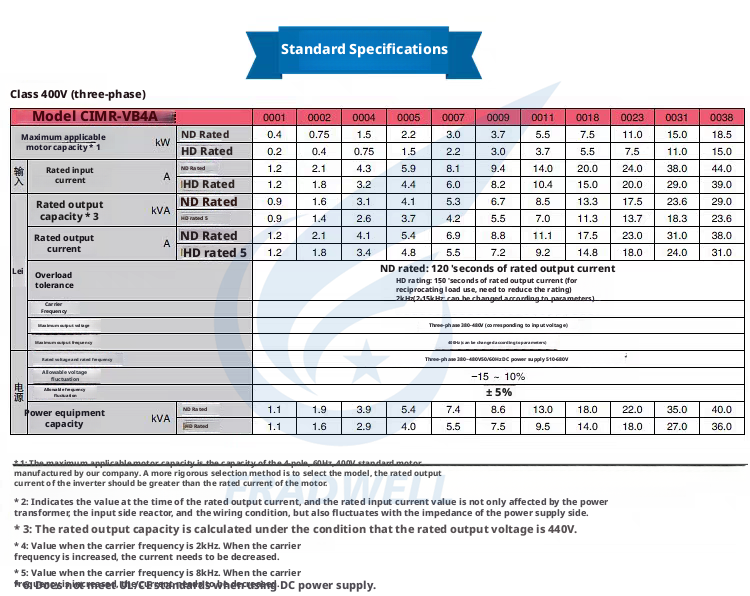

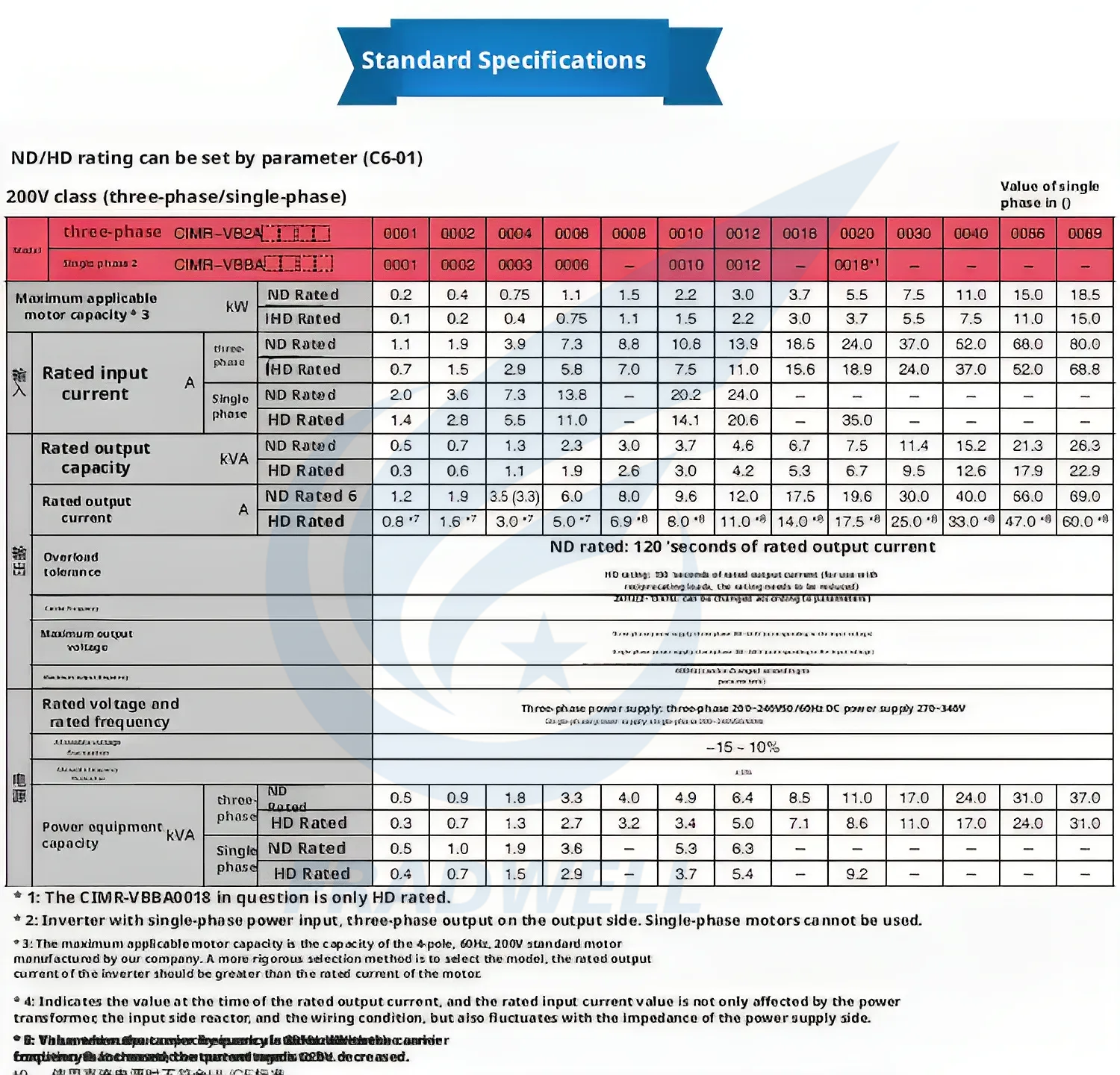

Product Specifications
Parameter Category Specific Parameter Item Details
Key Electrical Parameters Input Voltage & Phase 200-240V 1-phase, 200-240V 3-phase, 380-480V 3-phase
Rated Output Current Example: CIMR-VCBA0003BAA: Normal Duty 3.3A, Heavy Duty 3A
Applicable Motor Power 1/8HP - 25HP (0.12kW - 18.5kW)
Overload Capacity Normal Duty: 120% for 60s; Heavy Duty: 150% for 60s
Performance Parameters Control Method Standard open-loop current vector control with auto-tuning
Starting Torque 200% rated torque at 0.5Hz
Maximum Output Frequency Standard 400Hz, with high-frequency expansion available
Scan Cycle Dual-CPU design, scan cycle as fast as 2ms
Compatible Motor Types Induction Motors, Permanent Magnet Synchronous Motors
Braking Performance Over-excitation braking; external braking transistor required for some models
Protection & Physical Parameters Protection Class Standard: IP20; V1000-4X models: IP66/NEMA 4X
Environmental Resistance Operating Temperature: -10℃ - 50℃; Humidity: 95% non-condensing

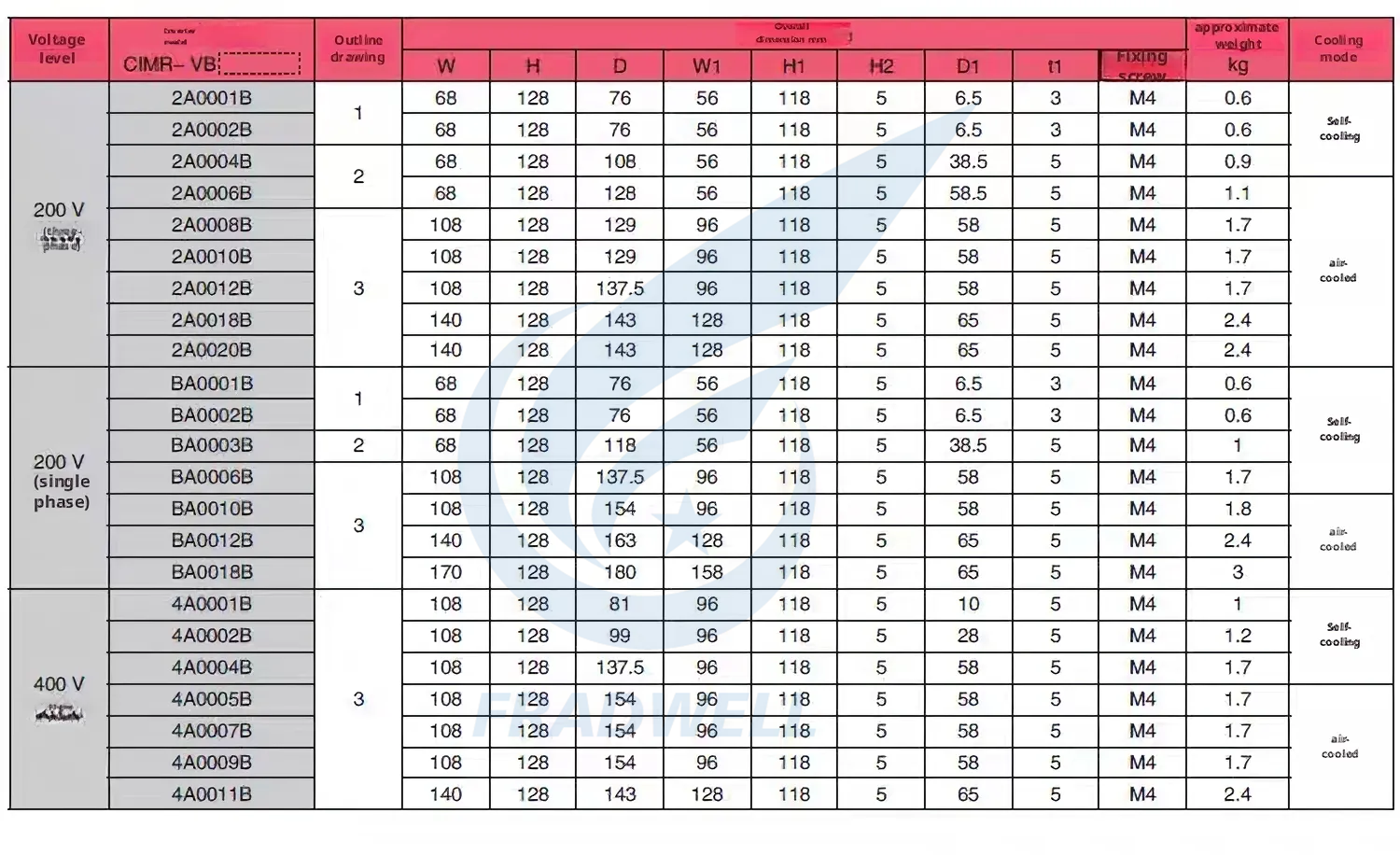

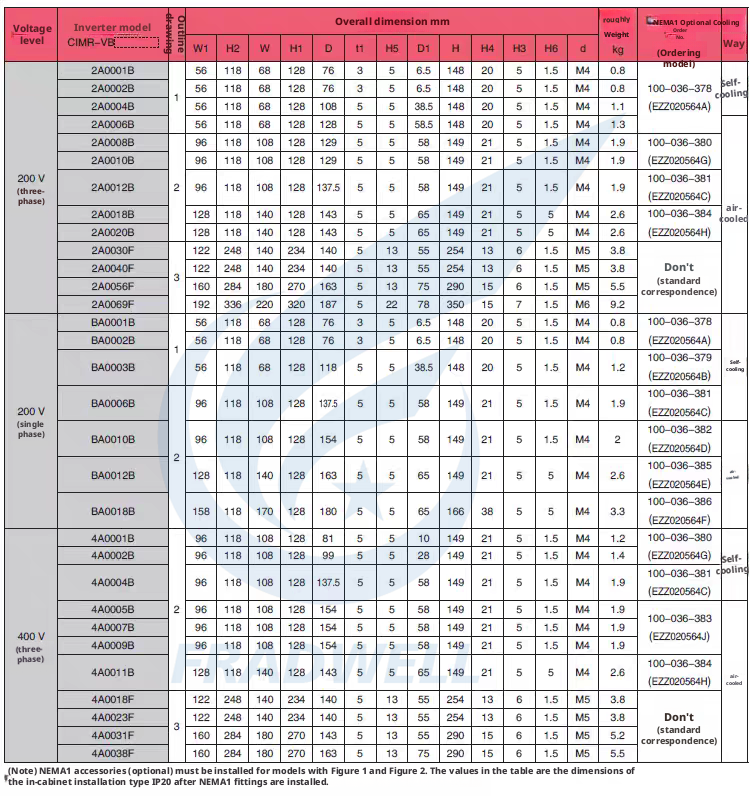

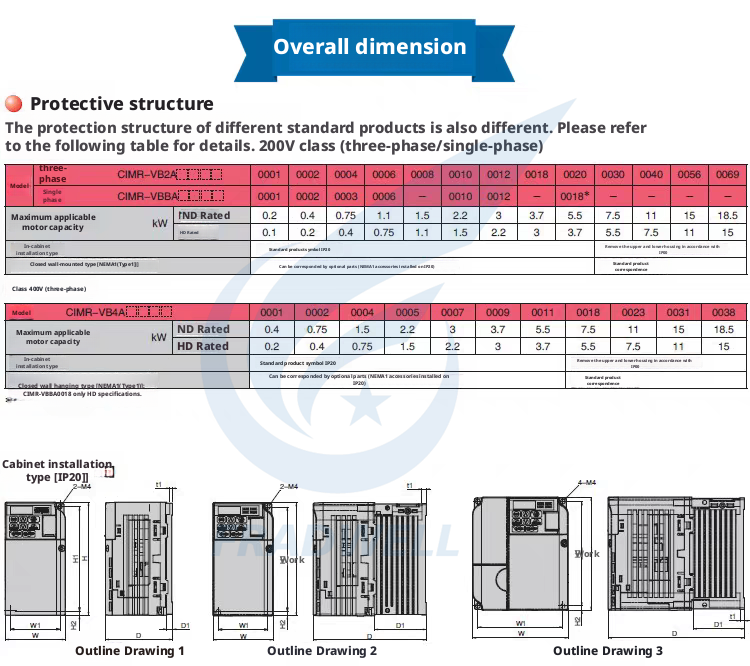

Dimensions & Installation Up to 70% smaller; supports gapless side-by-side installation
Cooling Method Air cooling + cold plate cooling; tool-free fan replacement available
Safety & Auxiliary Functions Safety Standards EN954-1 Cat.3, IEC/EN61508 SIL2; Stop Category 0
Communication Functions Standard RS-422/485; optional fieldbus cards (PROFIBUS-DP, DeviceNet)
I/O Interfaces 2 analog inputs, 1 analog output, 6 digital inputs, 3 digital outputs
Maintenance Features Removable terminal block; USB copy unit; DriveWizard software
Other Functions DriveWorksEZ programming; Swing PWM; lifetime diagnosis; RoHS compliant

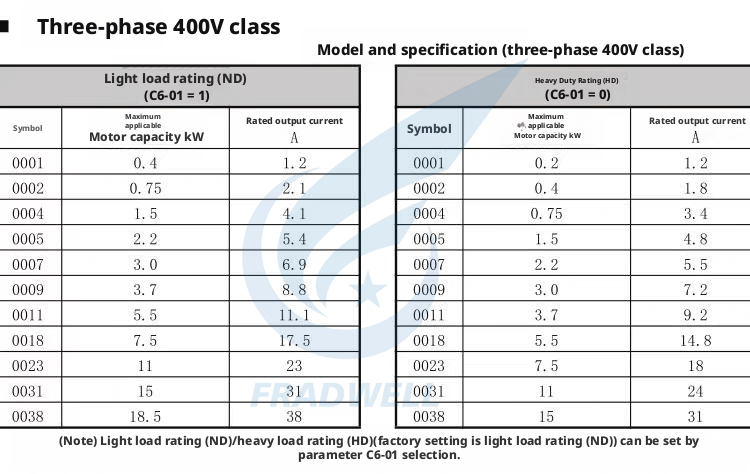

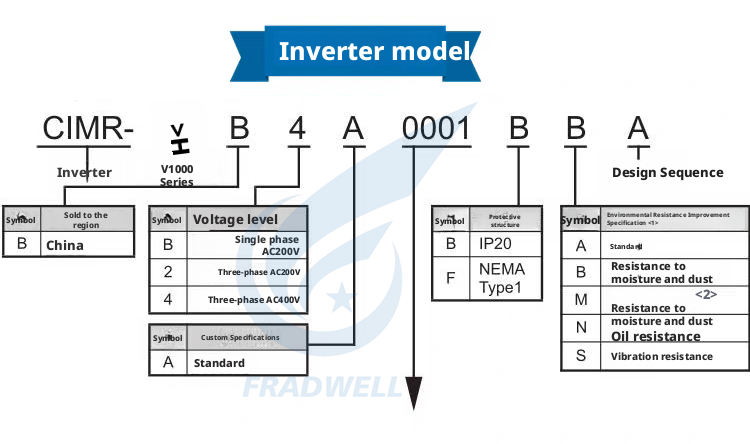

Model Selection Guide
200V Single-Phase Input - Standard Air-Cooled
Model Number Input Specification Applicable Power Rated Output Current Core Features
CIMR-VCBA0001BAA 200V 1-phase 0.2kW 1.2A General-purpose for small induction motors
CIMR-VCBA0002BAA 200V 1-phase 0.4kW 1.9A Higher power variant for heavy-load start/stop
CIMR-VCBA0003BAA 200V 1-phase 0.75kW 3.3A Suitable for general mechanical transmission
CIMR-VCBA0006BAA 200V 1-phase 1.1kW 6A Ideal for medium-power fans and pumps
CIMR-VCBA0010BAA 200V 1-phase 2.2kW 9.6A Compatible with small conveyors and compressors
CIMR-VCBA0012BAA 200V 1-phase 3kW 12A High adaptability with multiple control inputs
CIMR-VCBA0018BAA 200V 1-phase 4kW 17.5A Suitable for medium light-industrial loads
200V Single-Phase Input - Cold Plate Cooled
Model Number Input Specification Applicable Power Rated Output Current Core Features
CIMR-VCBA0001JAB 200V 1-phase 0.2kW ND / 0.1kW HD 1.2A ND / 0.8A HD Heat sink-free design for compact installations
CIMR-VCBA0002JAB 200V 1-phase 0.4kW ND / 0.2kW HD 1.9A ND / 1.6A HD Cold plate cooling for enclosed equipment
CIMR-VCBA0003JAB 200V 1-phase 0.75kW ND / 0.4kW HD 3.3A ND / 3A HD Handles both normal and heavy-duty conditions
CIMR-VCBA0006JAB 200V 1-phase 1.1kW ND / 0.75kW HD 6A ND / 5A HD Cold plate design for space-constrained environments
200V Single-Phase Input - IP66 Protected
Model Number Input Specification Applicable Power Rated Output Current Core Features
CIMR-VCBA0001HAA-0080 200V 1-phase 0.2kW 1.2A Chemical-resistant for washdown/dusty environments
CIMR-VCBA0002HAA-0080 200V 1-phase 0.4kW 1.9A Fits food processing and outdoor humid scenarios
CIMR-VCBA0003HAA-0081 200V 1-phase 0.75kW 3.3A RJ45 interface for remote communication
Application Scenarios
Food & Beverage Processing
Conveyor systems for production lines, washdown-equipped mixers, and cold storage ventilation fans. IP66 models meet FDA/EC food safety standards with compact design saving space in crowded production halls.
Packaging & Printing
Labeling machine speed synchronization, flexographic printing press motor control, and carton sealing machine conveyors. Vector control ensures precise speed tracking with multiple I/O interfaces for PLC integration.
HVAC & Building Automation
Commercial chiller pumps, office building ventilation fans, and hotel rooftop AC compressors. Energy-saving mode reduces power consumption with wide voltage tolerance for unstable power supplies.
Material Handling & Logistics
Warehouse conveyor belts, pallet jack lift motors, and airport baggage sorting line diverters. High overload capacity handles peak loads with easy parameter cloning for fleet deployment.
Frequently Asked Questions
Q1: Our European factory uses the CIMR-VC4A0007FAA and it frequently triggers "Undervoltage Fault" despite normal grid voltage. What's the issue?
A1: Check for loose input wiring or undersized cables. Adjust the voltage tolerance range from ±10% to ±15% in parameters. Aging input filters can also cause abnormal voltage detection - replacement typically resolves this common European factory issue.
Q2: IP66 model reports "Overheating Fault" after weekly cleaning in food factory. How to fix?
A2: Avoid direct high-pressure washing - use damp cloth cleaning instead. For current issue, clean heatsink with compressed air and dry cloth. Most food factory overheating stems from improper cleaning methods clogging heat dissipation channels.
Q3: Inverter trips frequently with voltage fluctuations between 180-220V. Solution without voltage stabilizer?
A3: Lower minimum input voltage to 170V and increase undervoltage protection delay to 1s. Adjust starting torque to 200% to reduce current surge. These parameter adjustments typically resolve Southeast Asian voltage fluctuation issues.
Q4: Inverter fails to respond to PLC commands occasionally despite normal communication indicators. How to troubleshoot?
A4: Increase communication timeout setting to 5s and verify Profinet device name matches PLC configuration. Ensure communication cable shield is properly grounded at both ends - electromagnetic interference often causes signal loss in smart factories.
Q5: Cold plate model reports "Overload Fault" in narrow truss installation despite light load. Reason?
A5: Poor thermal conductivity from mounting on plastic/wood surfaces traps heat, triggering false overload protection. Add aluminum heat dissipation plate with thermal grease and increase acceleration time to 3s to reduce peak current.
