Original Advantech AIMB Series ATX Micro-ATX Industrial Motherboard
Original Advantech AIMB Series ATX Micro-ATX Industrial Motherboard
Original Advantech AIMB Series ATX Micro-ATX Industrial Motherboard
Original Advantech AIMB Series ATX Micro-ATX Industrial Motherboard
Specifications
MOQ :
1
Delivery Time :
3-5Workdays
Expansion Support :
PCIe 3.0 / PCIe 4.0 / PCI Legacy Slots
Motherboard Type :
Industrial ATX / Micro-ATX / PICMG Slot Card
Product Condition :
100% Brand New Original Advantech
Freight Charge :
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
Chipset Series :
Intel Q-Series (Enterprise) / H-Series (Value)
Operating Temp :
0°C to 60°C (Standard) / Wide Temp Optional
Shipping Term :
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Price :
$250 - $1,200
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
Original
Watchdog Timer :
System reset programmable via WISE-DeviceOn
Certification :
CE / FCC 、UL / CB 、RoHS、CCC
COM Port Quantity :
Up to 6 x RS-232/422/485 Supported
Description

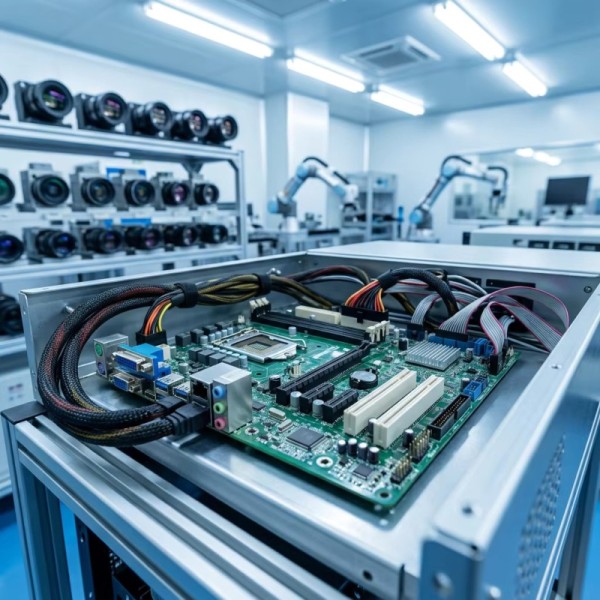

Original Advantech AIMB Series ATX Micro-ATX Industrial Motherboard
Power your industrial systems with the world's most reliable computing foundation - Advantech Industrial Motherboards. We offer the full range of AIMB (ATX/Micro-ATX) and PCA (Slot CPU Cards) series designed for 24/7 mission-critical applications. Unlike consumer boards, Advantech IPC boards are built with high-grade components to withstand temperature fluctuations, vibration, and electromagnetic interference. Whether you are building an AOI (Automated Optical Inspection) machine or upgrading a medical imaging system, our boards provide the longevity (7+ years life cycle) and stability your project demands.

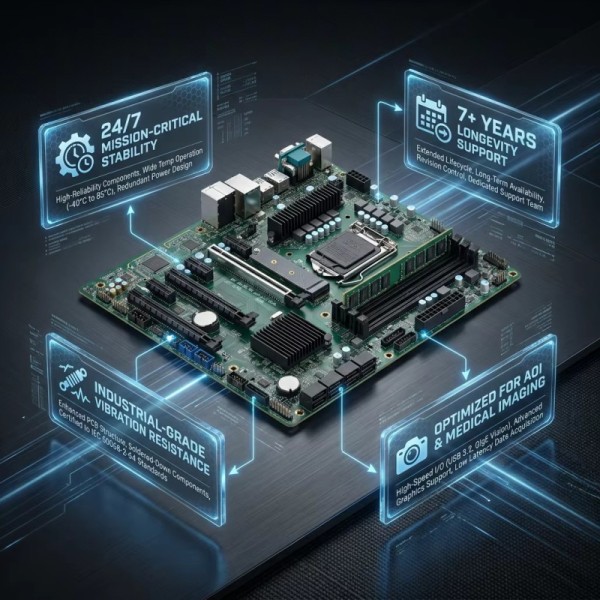

Product Highlights
  • Industrial-Grade 24/7 Stability: Optimized thermal design and solid capacitors ensure stable operation in non-stop industrial environments.
  • Legacy & Modern I/O Support: Features a rich array of interfaces including multiple COM ports (RS-232/422/485), GPIO, and legacy PCI/ISA slots.
  • Long-Term Lifecycle: Guaranteed availability for up to 7-10 years, eliminating frequent system re-design costs.
  • Triple Display Support: Advanced chipsets support triple independent displays (VGA/DVI/HDMI/DP) for complex HMI applications.
  • Remote Management: Built-in Advantech WISE-DeviceOn for remote monitoring, quick recovery, and hardware security.
  • Original New in Box: We provide only genuine Advantech products with original factory warranty and documentation.
Full Models & Selection Table
Model Series Form Factor CPU Socket Chipset Expansion Slots
AIMB-785 ATX LGA1151 Intel Q170 1 PCIe x16, 3 PCIe x4, 3 PCI
AIMB-705 ATX LGA1151 Intel H110 1 PCIe x16, 4 PCIe x1, 2 PCI
AIMB-585 Micro-ATX LGA1151 Intel Q170 1 PCIe x16, 2 PCIe x4, 1 PCIe x1
AIMB-787 ATX LGA1200 Intel Q470E 1 PCIe x16, 4 PCIe x4, 2 PCI
PCA-6011 Slot CPU Card LGA775 Intel G41 Full-size PICMG 1.0 Support
Application Fields
  • Vision Inspection (AOI): Driving high-speed cameras and image processing for electronics manufacturing.
  • Medical Equipment: Core motherboard for CT scanners, X-ray machines, and lab analyzers.
  • Smart Infrastructure: Controlling digital signage, smart parking, and traffic monitoring systems.
  • Factory Automation: Serving as the master controller for production line PLCs and robotic cells.
  • Energy & Environment: Monitoring systems for wind turbines and water treatment plants.
Frequently Asked Questions
Q: Do these boards support older Windows versions like XP or Windows 7?
A: Many AIMB legacy models support Windows 7. For Windows XP, we recommend specific series like PCA-6011. Please contact us with your specific OS requirements.
Q: Does the motherboard include the CPU and RAM?
A: Usually, these are sold as bare boards. However, we can provide a "Bundle Kit" including the CPU, industrial RAM, and cooler upon request.
Q: How do you handle the warranty for international buyers?
A: All new boards come with a 2-year factory warranty. We handle the RMA process for our customers to ensure minimal downtime.
Q: Are these boards "Revision Controlled"?
A: Yes, industrial boards maintain strict revision control to ensure that the hardware components do not change unexpectedly during your project lifecycle.
Q: Can I use a standard ATX power supply?
A: Yes, the AIMB series is compatible with standard ATX power supplies, though we recommend industrial-grade PSUs for maximum reliability.
Q: What is the typical lead time for out-of-stock items?
A: Stock items ship in 1-2 days. For factory orders, the lead time is typically 4-6 weeks depending on Advantech's global production.
