115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Pneumatic Connection :
G 1/2
Working Stroke :
115 MM
Bellows Type :
Double Convoluted
Dunlop Springride :
SP1482
Firestone :
W01-R58-4053
Purpose :
Shock Absorber
Description

115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs

Product Detailed Datas

Model Cylinder (inch) Port size Nominal (inch) ×convolutions Stroke (mm) Installation height min (mm) Recommended max working height (mm) Installation height max (mm) Retracting force to rech min height [N]
M/31061 6'' G1/2 6''×1 55 50 95 105 140
M/31062 6'' G1/2 6''×2 115 75 170 190 220
M/31081 8'' G1/2 8''×1 75 50 115 130 220
M/31082 8'' G1/2 8''×2 175 75 220 250 350
M/31101 10'' G1/2 10''×1 100 50 135 150 150
M/31102 10'' G1/2 10''×2 225 75 245 300 150
M/31103 10'' G1/2 10''×3 330 100 350 430 250
M/31121 12'' G1/2 12''×1 100 50 135 150 200
M/31122 12'' G1/2 12''×2 225 75 245 300 250
M/31123 12'' G1/2 12''×3 330 100 350 430 250
M/31141 14 1/2'' G1/2 14 1/2''×1 100 50 135 150 200
M/31142 14 1/2'' G1/2 14 1/2''×2 265 75 290 340 280
M/31143 4 1/2'' G1/2 4 1/2''×3 380 100 420 480 330
M/31162 16'' G1/2 16''×2 315 75 350 390 250
M/31163 16'' G1/2 16''×3 430 120 475 550 100
M/32212 21'' - 21''×2 251 84 284 335 331
M/32262 26'' - 26''×2 400 100 425 500 400


OEM Part Numbers

Norgren Part Number: M/31062

Norgren Part Number: M31062

Norgren Part Number: M 31062

Firestone Part Number: W01-R58-4053

Firestone Part Number: W01R584053

Firestone Part Number: W01 R58 4053

Firestone Part Number: WO1-R58-4053

Firestone Part Number: WO1R584053

Firestone Part Number: WO1 R58 4053

Dunlop Pneuride Part Number: 6"x2 (Steel)

Dunlop Pneuride Part Number: 6'x2 (Steel)

Dunlop Pneuride Part Number: 6x2 (Steel)
Dunlop Springride Part Number: SP1482

Dunlop Springride Part Number: SP 1482

Dunlop Springride Part Number: SP 14 82
Contitech Part Number: FD 76-14 DS

Contitech Part Number: FD 7614 DS

Contitech Part Number: FD 76 14 DS

Contitech Part Number: FD76-14 DS

Contitech Part Number: FD7614 DS

Contitech Part Number: FD76 14 DS
Parker Part Number: 9109001

Construction of AIRSUETECH Type Air Pneumatic Shock Suspensions

  • A complete AIRSUETECH type inch air bellows actuator consists of a corrugated body made of rubberized fabric and reinforcing steel rings. The body of the air springs is sealed with flanges, and one of the clamping flanges has an inlet port. The flanges are designed for mounting in both stationary and resiliently mounted machine and device elements.
  • AIRSUSTECH flange ring air actuators can be supplied with compressed air with a maximum working pressure of 0.7 MPa. These air rubber bellows with flange should have sufficient space around the body to prevent the bellows body from contacting other parts of the machine, device or vehicle during operation.
FAQ of AIRSUSTECH Air Suspensions

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 2B6×2T.
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
Q: How is your delivery time?
A: Generally, it takes 5-8 working days after receiving the advance payment.
The specific delivery time depends on the items and quantity of the order.

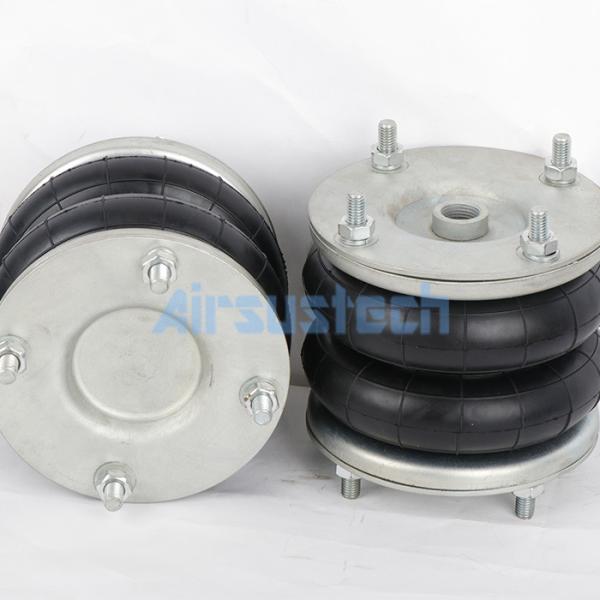

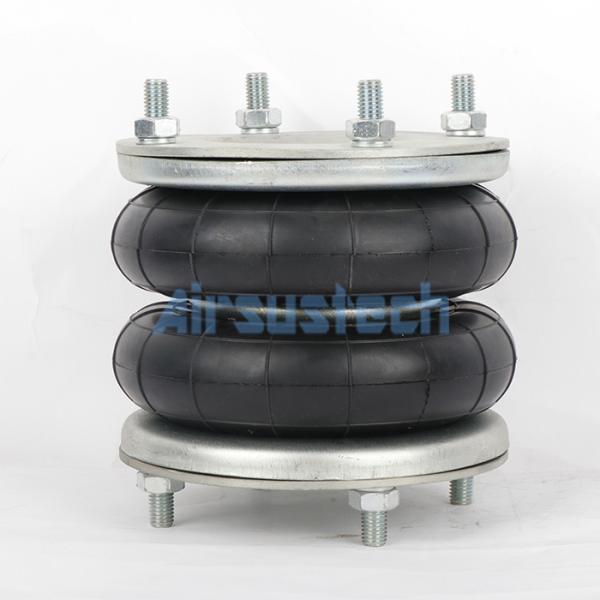

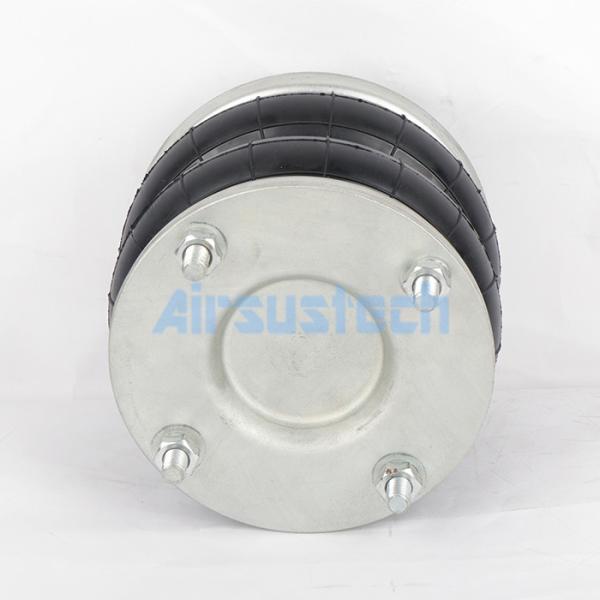

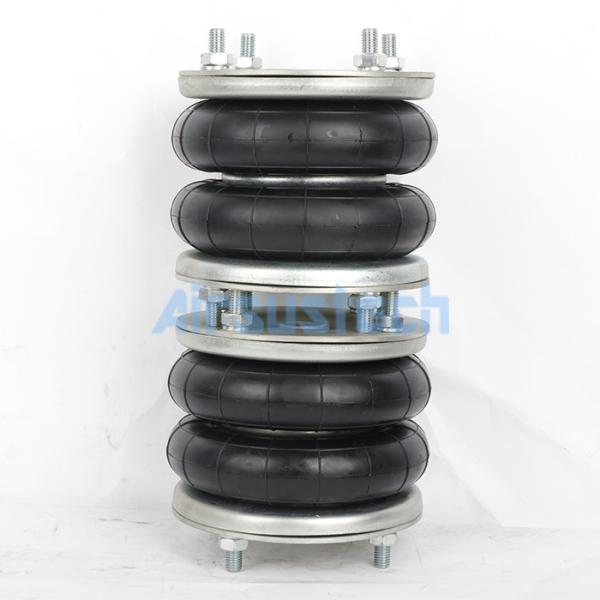

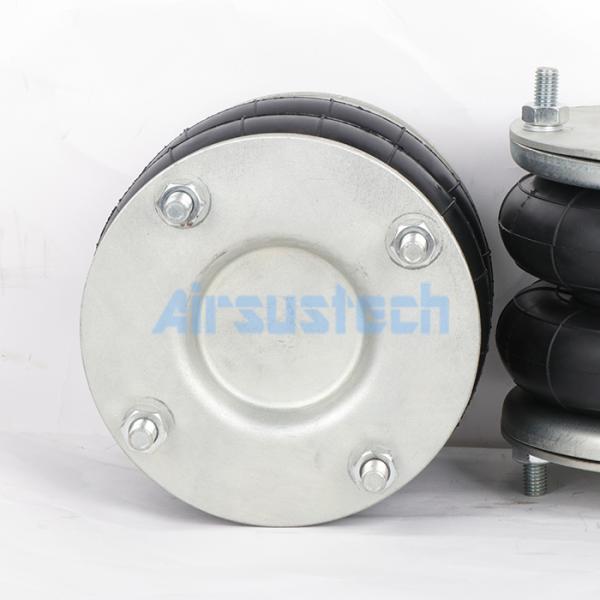

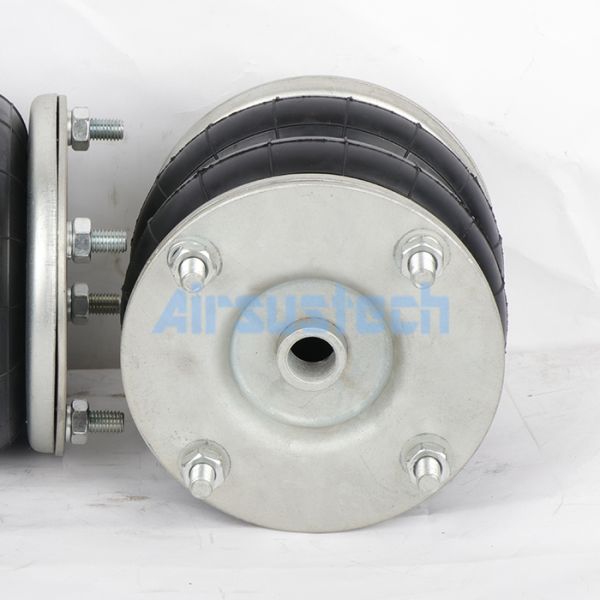

The Real Pictures of 2B6×2T

115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs


Company Profile

Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs

Factory Workshop
115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs
