W01-358-7484 Firestone Industrial Bellows Actuator 1/4NPT Air Inlet Air Spring

Product Features

AIRSUSTECH air springs are trusted solutions for industrial actuation and vibration isolation. As actuators, they excel in delivering linear or angular motion with a compact design, outperforming traditional air cylinders. Their flexibility makes them ideal for applications involving pressing, tensioning, rolling, conveying, lifting, and packaging tasks. In vibration isolation, AIRSUSTECH air springs effectively minimize harmful vibrations, ensuring smoother operation and protecting machinery.

Product Details

  • Cover Plate

Top Cover Plate Diameter: 4.50 in.
Screw Center Distance of Top Cover Plate: 1.75 in.
Bottom Cover Plate Diameter: 4.50 in.
Screw Center Distance of Bottom Cover Plate: 1.75 in.

  • Nut/Blind Nuts

Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

  • Gas Hole/Air Inlet/Air Fitting

Air Hole: 3/4NPT

  • Rubber Bellow

Rubber Bellow Max. Diameter: 8.1 in.
Compressed Height: 2.1 in.
Max. Expanded Height: 6 in.

Technical Parameters

Dynamic Characteristics at 4.5 in. Design Height
Volume @ 100 PSIG = 128 in3 Natural Frequency
Gage Pressure (PSIG) lOAD (lbs.) Spring Rate (lbs./in.) CPM HZ
40 650 554 173 2.88
60 1,010 795 167 2.77
80 1,390 1,046 162 2.71
100 1,790 1,294 160 2.66

Force Table (Use for Airstroke actuator design)
Assembly Height (in.) Volume @ 100 PSIG (in3) Pounds Force
@ 20 PSIG @ 40 PSIG @ 60 PSIG @ 80 PSIG @ 100 PSIG
4.0 117 390 810 1,240 1,700 2,160
3.0 91 490 1,010 1,540 2,090 2,650

Cross References

Style 110

Two Ply Bellows

Description Assembly Order No.
Blind nuts, 1/4NPT

W01-358-7451, W01 358 7451, W01-358-7451

WO1-358-7451, WO1 358 7451, WO1-358-7451
Blind nuts, 3/4NPT W01-358-7484, W01 358 7484, W01-358-7484

WO1-358-7484, WO1 358 7484, WO1-358-7484
Socket head aluminum bead rings (bolts, nuts. washers not included - use 1/4 cap screws) W01-358-0112, W01 358 0112, W01-358-0112

WO1-358-0112, WO1 358 0112, WO1-358-0112
Rubber bellows only W01-358-0100, W01 358 0100, W01-358-0100

WO1-358-0100, WO1 358 0100, WO1-358-0100

The Real Photos

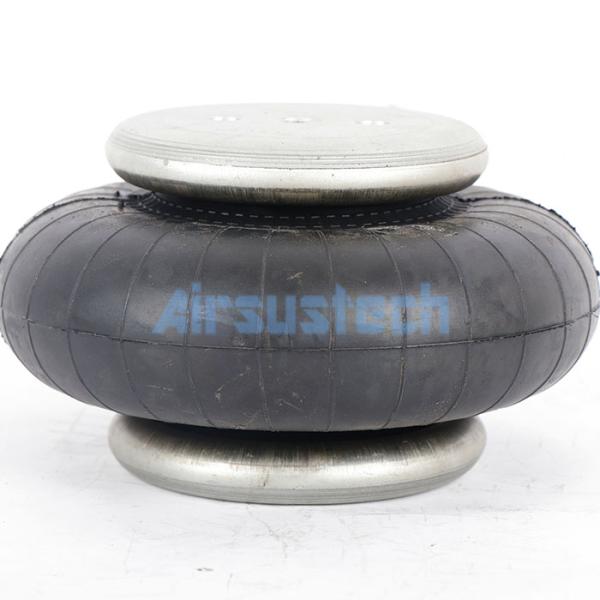

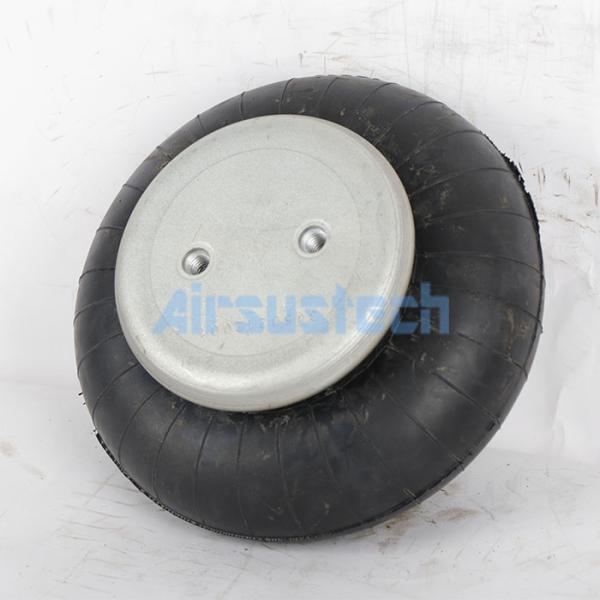

W01-358-7484 Firestone Industrial Bellows Actuator 1/4NPT Air Inlet Air SpringW01-358-7484 Firestone Industrial Bellows Actuator 1/4NPT Air Inlet Air Spring
