Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B4060
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
1B4060
Type :
Single Convoluted
Working Stroke :
50 MM
Refer NO. :
Contitech FS 40-6
C to C Distance :
20 MM
Port Size :
G 1/4
Sample :
Available
Description

Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension

Cross References

Weforma Air Spring

WBE100-E1 / WBE 100-E1 / WBE100E1

Contitech Air Spring

FS 40-6 / FS40-6 / FS406

Phoenix Air Spring

SP1B04 / SP 1B04

Product Details

Body Dia.[Max]: 145 mm
Compressed Height: 50 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 50 mm
Pressure [Max]: 0-8 bar
Height [Max]: 100 mm
Height [Min]: 50 mm
Air Inlet: G1/4
Nut/Blind Nuts: 2×M8
Center to Center Distance: 20 mm
Distance Air Hole Betweeen Screw: 20 mm

Technical Data Sheet

Vibration isolation - dynamic characteristics values

Pressure p [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 0.88 1.19 1.48 1.8 2.11 2.4 0.12
Spring Rate [N/cm] 635 820 995 1190 1370 1570
Natural Frequency [Hz] 4.3 4.2 4.2 4.1 4.1 4.1

Pneumatic application - static characteristics values

Pressure p [bar] 3 4 5 6 7 8 Vol. [l]
Height H [mm] 70 0.52 0.72 0.92 1.12 1.32 1.52 0.15
65 0.70 0.94 1.18 1.43 1.67 1.91 0.13
60 0.87 1.15 1.44 1.72 2.01 2.09 0.12
55 1.06 1.39 1.72 2.05 2.38 2.71 2.10

Single Convoluted Air Bellows

1B12-305 FS 40-6 CI SP2906
1B14-350 FS 50-5 CI SP2334
1B14-352 FS 70-7 CI SP2913
1B14-364 FS 100-10 CI SP1536
1B15-376 FS 120-10 CI SP1537
1B15-378 FS 120-12 CI SP2523
1B12-313 FS 200-10 CI SP1540
1B14-351 FS 310-12 CI SP1543
1B14-362 FS 330-11 CI
1B15-377 FS 330-14 CI
1B15-375 FS 530-11 CI
FS 530-14 CI
FS 960-12 CI
FS 1330-11 CI

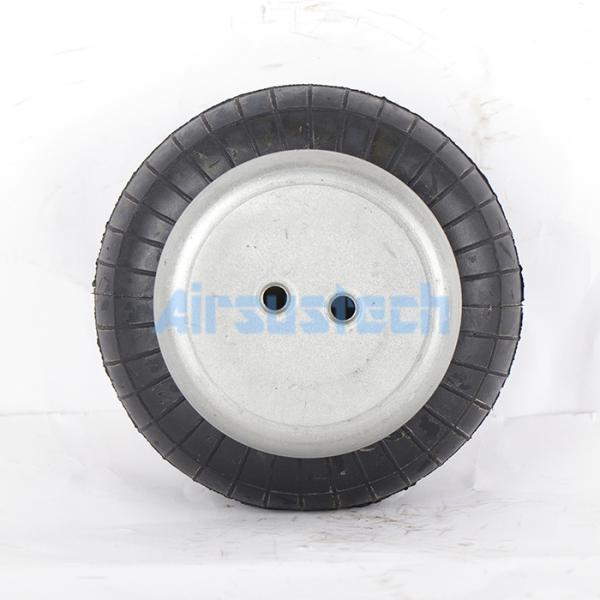

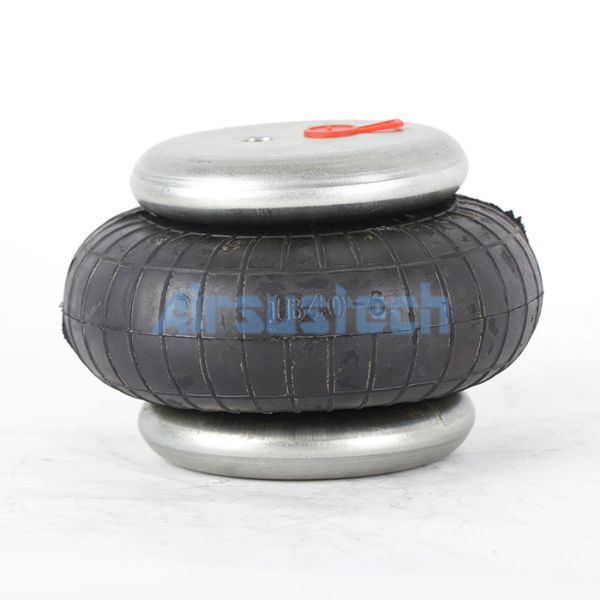

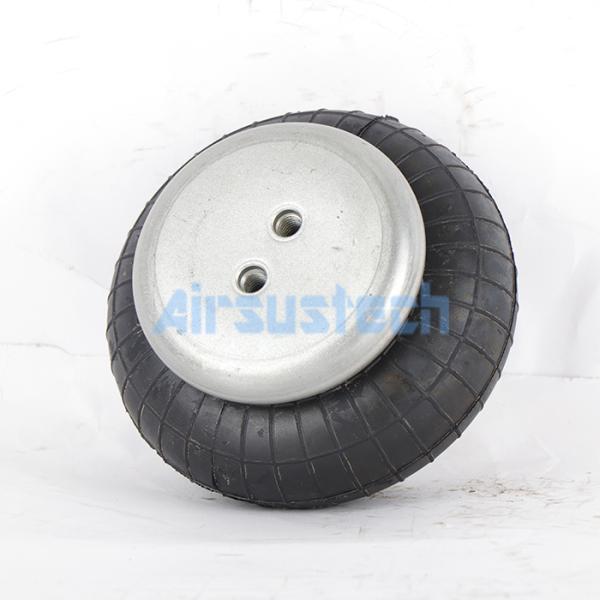

The Pictures of Details

Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension

Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift SuspensionRubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift SuspensionRubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
