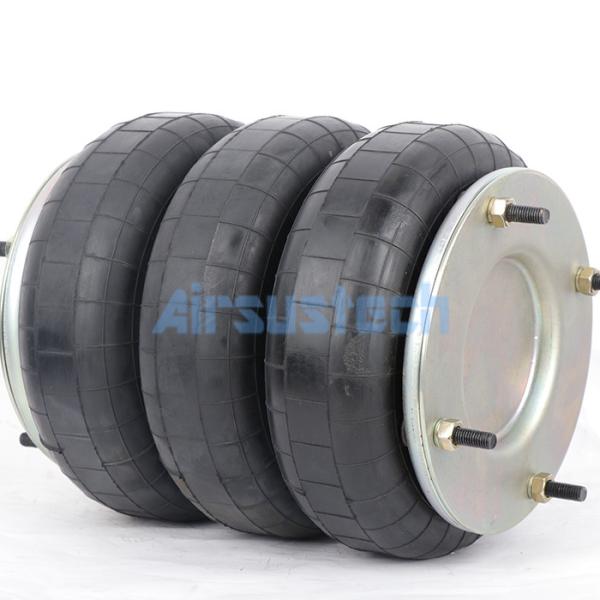

Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B10×3T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Part Number :
3B10×3T
Contitech :
FT 210-32 DS
Dunlop :
10''×3
Warranty :
12 Months
Pressure Ability :
0 Bar - 8 Bar
Description :
Bellows Style Industrial Air Spring
Port Size :
G 1/2
Description

Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw


Air Spring Introduction

Our AIRSUSTECH Air Suspension 3B10×3T is a compatible replacement for Firestone W01-R58-4059, Dunlop Pneuride 10''×3, Dunlop Springride SP1539, and Contitech FT 210-32 DS. It also shares the same technical specifications as Norgren M/31103 and Parker 9109031. The quality of the 3B10×3T reaches 80% to 90% of the original brands, such as Firestone, Contitech, and Dunlop. Additionally, we offer a one-year warranty on our air spring rubber bellows.

OEM Cross References

For Norgren NO.: M/31103, M31103, M31103

For Firestone NO.: W01-R58-4059, W01R584059, W01 R58 4059
For Dunlop Pneuride NO.: 10''×3, 10'×3, 10×3
For Dunlop Springride NO.: SP1539, SP 1539
For Contitech NO.: FT 210-32 DS, FT210-32 DS, FT21032 DS
For Parker NO.: 9109031

3B10×3T Air Spring Specifications

Effective Diameter: 200 mm

Connection Method: CY series

Compressed Height: 118 mm

Maximum Height: 400 mm

Full Stroke: 282 mm

Working Medium: air

Working Pressure: 0 bar to 8 bar

Burst Pressure: 8 bar

Temperature: -40℃ to +70℃

We Have Other Orial Series Flange Connection Air Spring

AIRSUSTECH NO. Firestone Dunlop Pneuride Dunlop Springride Contitech Norgren Parker
2 3/4''×3 2 3/4''×3 SP2910 FT 22-6 DI 9109010
4 1/2''×3 W01R584035 4 1/2''×3 SP2895 FT 44-15 DI PM/31043 9109402
4 1/2''×3-E
3B6×3T(AI) 6''×3(Al) SP2923 FT 76-20 DS PM/31063 9109007A
3B6×3T(Steel) W01R584095 6''×3(Steel) SP2861 FT 138-26 DS M/31063 9109007
3B8×3T W01R584056 8''×3 SP2863 FT 138-26 DS M/31083 9109017
3B10×3T W01R584059 10''×3 SP1539 FT 210-32 DS M/31103 9109031
3B12×3T W01R584062 12''×3 SP1542 FT 412-32 DS M/31123 9109051
3B14 1/2''×3T W01R584065 14 1/2''×3 SP1558 FT 614-36 DS M/31143 9109069
3B16×3T W01R584068 16''×3 SP2141 FT 816-40 DS M/31163 9109177

3B10×3T Product Details
