Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B4060
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Product Number :
1B4060
Sample :
Available
Thread :
2×M8×1.25
Weforma :
WBE 100-E1
Air Connection :
G1/8
Operating Temperature :
-40℃+70℃
Advantage :
Extend Service Life
Description

Industrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air Suspension

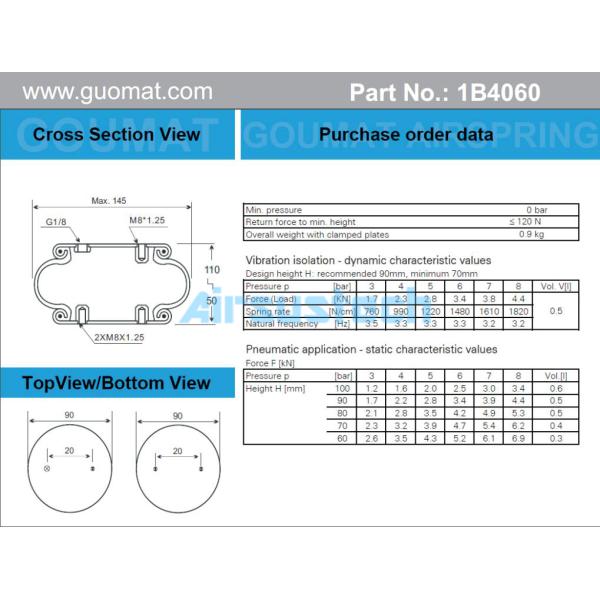

Product Information

Nut/Blind nuts
Nut length: no
Number of screws on the top cover: 2
Number of bottom cover screws: 2
Top cover plate screw (nut) tooth: 2×M8
Top cover screw center distance: 20 mm
Screw (nut) teeth of the bottom cover plate: 2×M8
Center distance of bottom cover plate screw: 20 mm
Air hole/air inlet/air connector
Air hole/air inlet: G1/8
Cover plate
Top cover diameter: 90 mm
Diameter of bottom cover: 90 mm

Rubber bellows
Max. diameter of rubber bellows: 145 mm
Buffer block/buffer block
Unbuffered block
Waist ring/waist ring
Strap ring: no strap ring


OEM Cross References

Continental Contitech FS 40-6, FS40-6

Continental Contitech FS 406, FS406

Continental Contitech FS 40 6, FS40 6
Phoenix Air Bellow SP 1B 04

Phoenix Air Bellow SP 1B04

Phoenix Air Bellow SP1B04
Weforma Air Spring WBE 100-E1, WBE100-E1

Weforma Air Spring WBE 100E1, WBE100E1

Weforma Air Spring WBE 100 E1, WBE100 E1

The Description of AIRSUSTECH Air Springs

​​Unmatched Durability & Performance​​
AIRSUSTECH air springs deliver ​​exceptional longevity and reliability​​ across diverse industrial applications. Engineered with ​​fabric-reinforced Neoprene/Natural Rubber flex members​​ and ​​corrosion-resistant end retainers​​, they withstand harsh operating conditions while maintaining precise performance.

​​Comprehensive Product Range​​

  • Choose from our industry-leading selection:
  • ​​Single/Double/Triple Convoluted Bellows​​ – Optimized stroke length and load capacity
  • ​​Rolling Lobe Designs​​ – Superior performance for high-cycle applications
  • ​​Sleeve-Type Units​​ – Space-efficient solutions for compact installations


​​Key Features:​​

  • ​​Wide size range​​ for perfect application matching
  • Custom end retainers​​ for seamless integration
  • Pressure ratings from 0.3-0.7MPa​​ for versatile performance

​​Ideal For:​​

  • Industrial automation systems
  • Heavy equipment vibration control
  • Precision machinery isolation
  • Transportation suspension upgrades

Other Kinds of Industrial Air Springs

1B12-305 FS 40-6 CI SP2906
1B14-350 FS 50-5 CI SP2334
1B14-352 FS 70-7 CI SP2913
1B14-364 FS 100-10 CI SP1536
1B15-376 FS 120-10 CI SP1537
1B15-378 FS 120-12 CI SP2523
1B12-313 FS 200-10 CI SP1540
1B14-351 FS 310-12 CI SP1543
1B14-362 FS 330-11 CI
1B15-377 FS 330-14 CI
1B15-375 FS 530-11 CI
FS 530-14 CI
FS 960-12 CI
FS 1330-11 CI

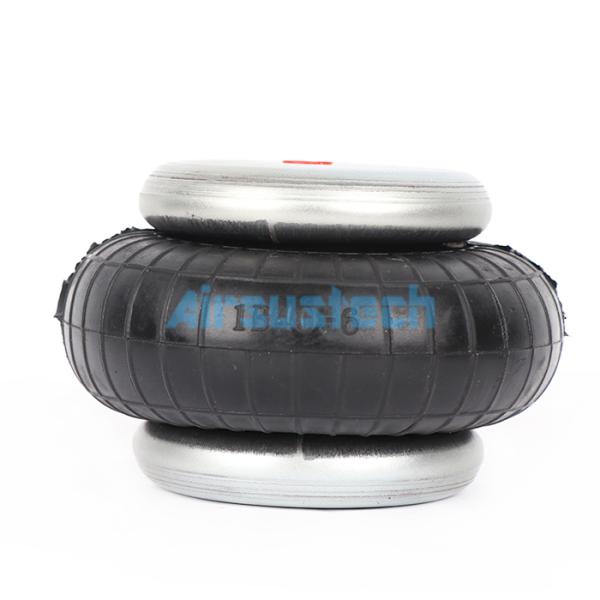

The Real Photos of 1B4060

Industrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air SuspensionIndustrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air Suspension

Factory Workshop
Industrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air SuspensionIndustrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air SuspensionIndustrial Convoluted Air Spring Phoenix SP1B04 for Veegoo Machine Air Suspension
