Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B53014
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Thread :
2×M8×1.25
Full Stroke :
105 MM
Structure :
Single Convoluted
Goodyear :
1B14-350
Suspension System :
Air Spring Suspension
Operation :
Gas-Filled
Description

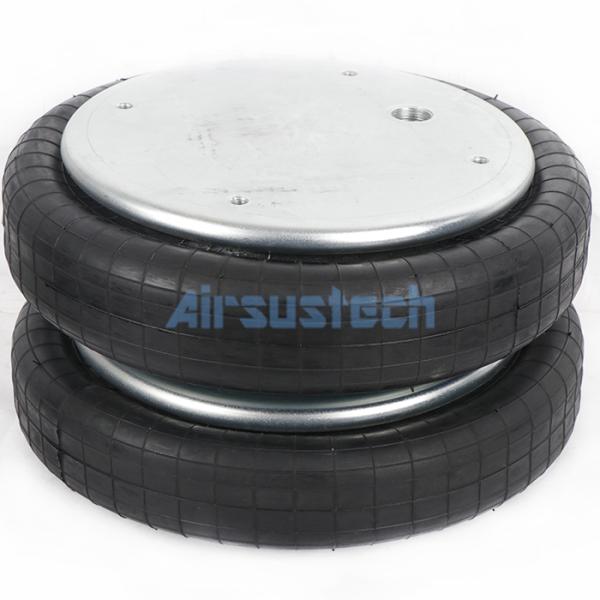

Peerless 0550-00015 Air Spring Contitech FS 530-14 for Industrial Lifting Air Bag

Product Information

[1] Air Fitting G3/4
[2] Max. Diameter 325 mm
[3] Screw Nuts Type 2×M8×1.25
[4] Compressed Height 55 mm
[5] Extended Height 160 mm
[6] Cover Plate Diameter 231 mm
[7] Center to Center Distance 157.5 mm
[8] Distance Between Air Hole and Screw 66 mm
[9] Working Temperature -40℃+70℃
[10] Material rubber and steel

OEM Part Numbers

Peerless Air Spring: 0550-00015

Peerless Air Spring: 0550 00015

Peerless Air Spring: 055000015

Continental Contitech Air Bellow: FS 530-14

Continental Contitech Air Bellow: FS 53014

Continental Contitech Air Bellow: FS 530 14
Triangle Air Bag: AS-4442

Triangle Air Bag: AS4442

Triangle Air Bag: AS 4442
Firestone Air Actuator: W01-358-7103

Firestone Air Actuator: W013587103

Firestone Air Actuator: W01 358 7103
FleetPride Air Suspension: AS7103
Goodyear Air Rubber Bellow: 1B14-350

Goodyear Air Rubber Bellow: 1B14350

Goodyear Air Rubber Bellow: 1B14 350
Goodyear Flex No. 578913351
Taurus Air Shock Suspension: 6326
TRP Air Spring Assembly: AS71030

The Applications of AIRSUSTECH Air Bags

  • Scissor lift
  • Hopper vibration and damping
  • Mechanical handling stop
  • Quick lock device
  • Reel tensioning
  • Machine isolation
  • Direct force
  • Impact absorbtion
  • Roller tensioning
  • Platform lift
  • Short stroke mechanical linkage
  • Hot foll stamping press

Supports And Services

From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.

  1. Global Manufacturing and Sales Facilities offer our customers:
  2. Highly Trained Distribution Network
  3. State-of-the Art Engineering Capabilities
  4. Custom Solution Development
  5. Customer Service Specialists
  6. Multiple Open Communication Channels

Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

Other Kinds of Air Spring Assembly

Single Convoluted Double Convoluted Triple Convoluted
FS 40-6 CI FD 40-10 CI FT 330-29 CI
FS 50-5 CI FD 70-13 CI FT 430-32 CI
FS 70-7 CI FD 110-15 CI FT 530-32 CI
FS 100-10 CI FD 120-17 CI FT 530-35 CI
FS 120-10 CI FD 120-20 CI FT 960-34 CI
FS 120-12 CI FD 200-19 CI FT 1330-35 CI
FS 200-10 CI FD 200-22 CI
FS 310-12 CI FD 200-25 CI
FS 330-11 CI FD 330-22 CI
FS 330-14 CI FD 330-30 CI
FS 530-11 CI FD 530-22 CI
FS 530-14 CI FD 530-35 CI
FS 960-12 CI FD 960-22 CI
FS 1330-11 CI FD 1330-25 CI

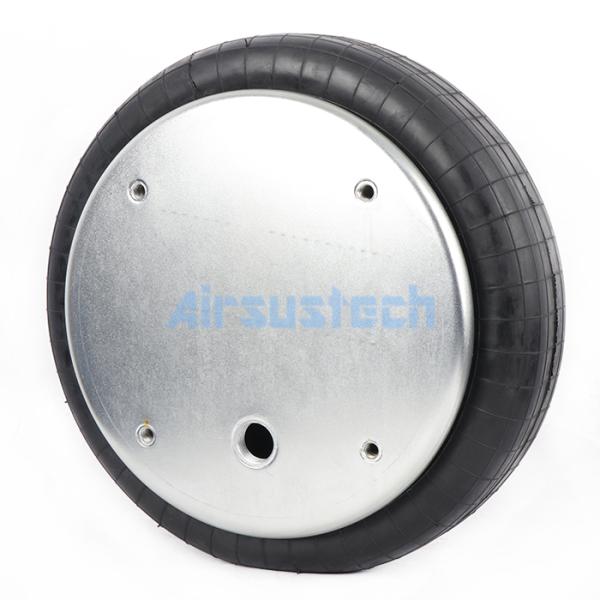

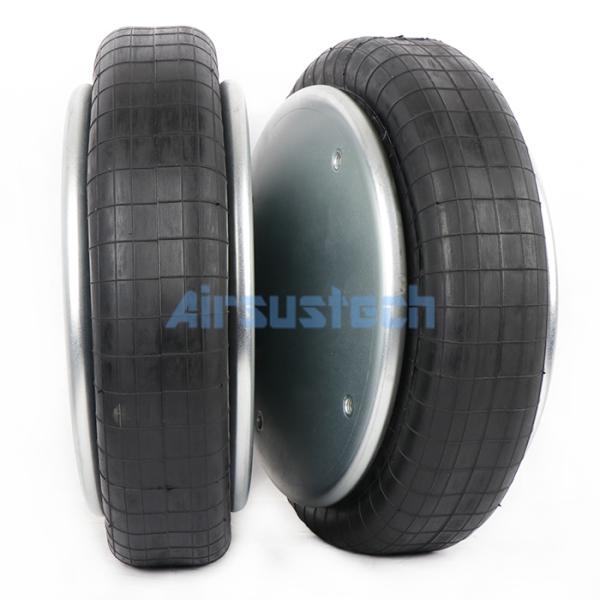

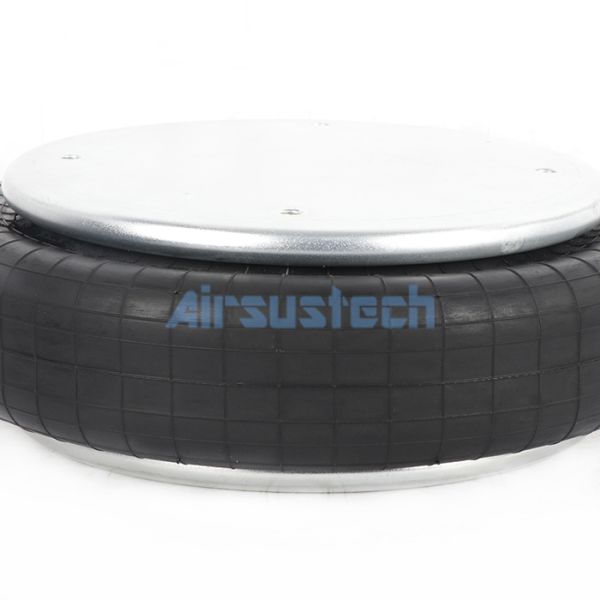

1B53014 Related Pictures
