Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
Specifications
Brand Name :
AIRSUSTECH
Model Number :
150076H-1
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Material :
Rubber
Max Inflation Pressure :
0.7 MPa
Warranty Special :
12 Months
Quality :
High Quality
Operating Temperature :
-40℃+70℃
Structure :
Single Convoluted
Description

Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM

Quick Details

Brand: AIRSUSTECH

Part Number: 150076H-1

Sample: Avaliable

Condition: Brand New

Quality: 100% Tested

Product Specifications

Dimensions - Min. Height: 45 mm
Dimensions - Max. Height: 95 mm
Dimensions - Total Stroke: 50 mm
Dimensions - Static Height: 76 mm
Dimensions - Max. Outer Diameter: 160 mm
Dimensions - Cover Plate Width: 133 mm
Dimensions - Center to Center Distance: 109 mm
Screw Nuts Type: 4-M10

Key Benefits and Features​​ of AIRSUSTECH Air Suspension

​​1. Superior Vibration Isolation​​

Absorbs ​​high- and low-frequency vibrations​​ effectively
Reduces noise transmission by ​​up to 90%​​
Protects sensitive machinery from shock damage

2. Adjustable Load & Height Control​​

​​Dynamic air pressure adjustment​​ for varying loads
Maintains consistent height under changing conditions
Ideal for ​​HVAC systems, compressors, and industrial platforms​​

3. Modular Design with Movable Flange​​

​​Easy assembly & disassembly​​ with bolt-on blind plates
​​Quick replacement​​ of rubber airbags when needed
Simplifies maintenance without full system disassembly

​​4. Long Service Life & Durability​​

​​High-strength neoprene rubber​​ resists wear and fatigue
​​Thousands of compression cycles​​ without performance loss
Withstands ​​harsh industrial environments​​ (oil, dust, temperature extremes)

5. Low Maintenance & Cost-Efficient​​

​​No metal-to-metal contact​​ – eliminates lubrication needs
​​Sealed design​​ prevents leaks and contamination
​​Minimal downtime​​ for inspections and replacements

​​6. Compact & Lightweight​​

​​Space-saving cylindrical design​​ fits tight installations
​​High load capacity​​ despite small footprint
Reduces overall system weight vs. traditional metal springs

​

​

Other Types of Industrial Rubber Air Springs

1H086060 2H130142 3H200206
1H120060 2H156130 3H250260
1H150076 2H160166 3H255230
1H188102-A 2H168132 3H255322
1H215120 2H200142 3H310306
1H235118 2H220200 3H330306
1H235150 2H230214 3H360306
1H260135 2H235152 3H380316
1H260126 2H235210 3H400312
1H320124 2H252163 3H520312
2H260230 3H580306
2H280214 3H630376
2H290265 3H680376
2H300170
2H310214

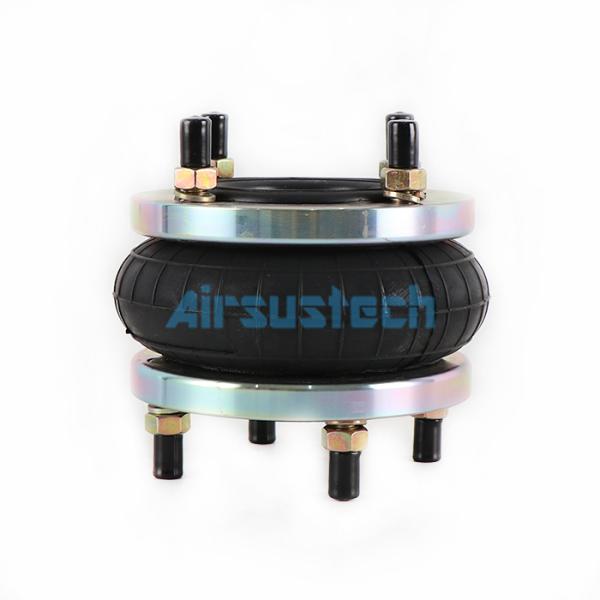

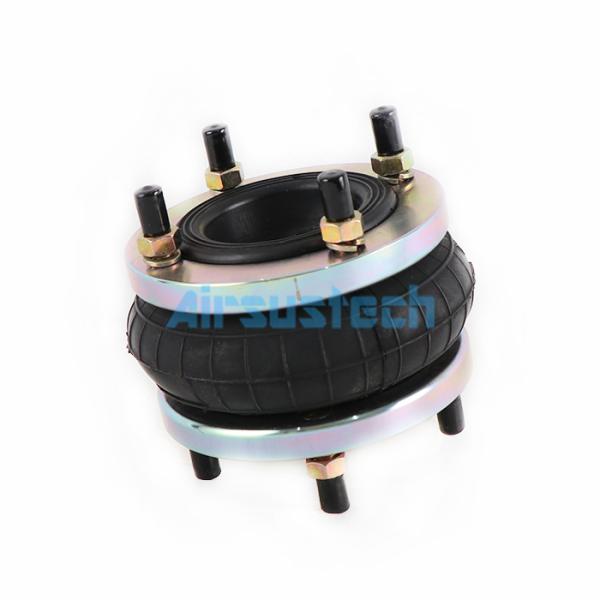

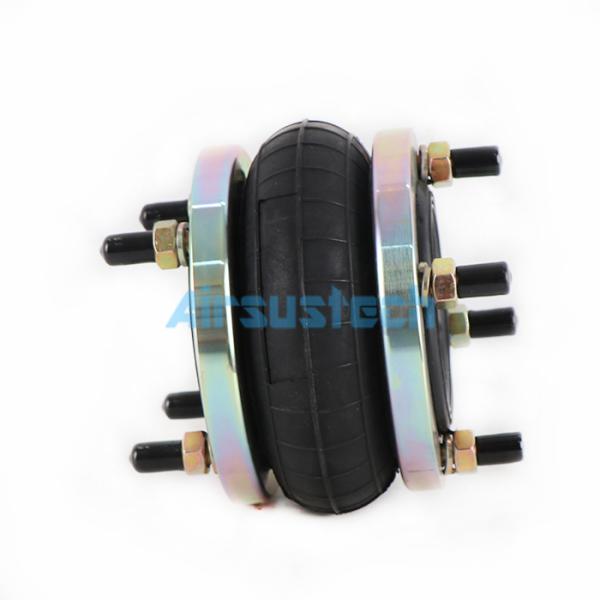

The Real Pictures
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MMBlack Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM

Factory Workshop
Black Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MMBlack Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MMBlack Suspension Air Spring 150076H-1 Flange Pneumatic Cylinder Total Stroke 50MM
