Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5021
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Number :
1B5021
Total Stroke :
90 MM
Air Connection :
1/4NPTF
Operation :
Gas-filled
Fitment Type :
Direct Replacement
Firestone :
W01-358-7451
Warranty Special :
12 Months
Description

Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring

Quick Details

Item Air Spring
Place of Origin Guangzhou, China
Brand AIRSUSTECH
Part Number 1B5021
Car Model Bus / Truck
Purpose for Replace / Repair
Condition Brand-new
Quality 100% Tested
Service Accept Customize

Firestone Style 110 Cross References

Blind nuts, 1/4NPT

W01-358-7451 / W013587451 / W01 358 7451

WO1-358-7451 / WO13587451 / WO1 358 7451
Blind nuts, 3/4NPT

W01-358-7484 / W013587484 / W01 358 7484

WO1-358-7484 / WO13587484 / WO1 358 7484
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)

W01-358-0112 / W013580112 / W01 358 0112

WO1-358-0112 / WO13580112 / WO1 358 0112
Rubber bellows only

W01-358-0100 / W013580100 / W01 358 0100

WO1-358-0100 / WO13580100 / WO1 358 0100

Product Features

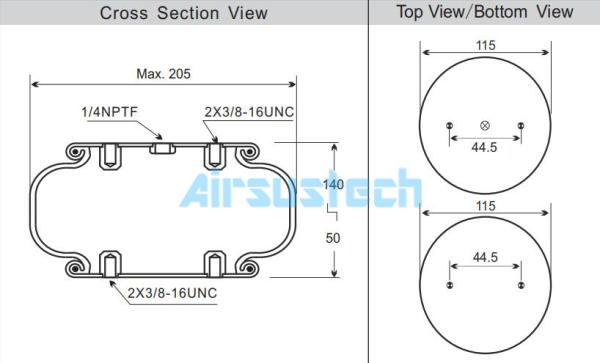

  • This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 50 mm, a maximum extended height of 140 mm, and a working stroke of 90 mm.
  • For the 1B5021 model, the cover plate diameter is 115 mm, and the center-to-center distance is 44.5 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 205 mm.
  • The industrial convoluted rubber air spring operates via gas filling. Its air connection is 1/4 NPTF, and the screw nut size is 2×3/8-16 UNC.

Applications

1. Pulp and paper industry

Used for vibration isolation in paper machines to reduce vibrations from rollers and cylinders, ensuring paper quality and minimizing equipment wear.


2. Lumber mills

Installed on saws and planers to absorb shocks during cutting and material handling, protecting machinery structure and reducing noise.


3. Lift tables

Act as cushioning elements in lifting mechanisms to ensure smooth vertical motion and prevent mechanical shocks from sudden load changes.


4. Tooling and machining systems

Isolate ground vibrations in precision machining equipment to maintain accuracy and suppress resonance during high-speed spindle operation.

Other Kinds of Firestone Industrial Air Bellows

Firestone Number Firestone Style Firestone Number Firestone Style
W01-358-0112 110 W01-358-0118 115
W01-358-0119 119 W01-358-0122 248-2
W01-358-0127 131 W01-358-0131 131
W01-358-0133 116 W01-358-0134 19
W01-358-0135 113 W01-358-0140 2月21日
W01-358-0142 26 W01-358-0147 138-1.5
W01-358-0150 113-1 W01-358-0205 203
W01-358-0207 207 W01-358-0213 21
W01-358-0219 218 W01-358-0226 22
W01-358-0231 128 W01-358-0259 22-1.5
W01-358-0297 274 (formerly 20) W01-358-0305 2月20日
W01-358-0324 324 W01-358-0987 320
W01-358-1002 328 W01-358-1021 148-1
W01-358-1023 348-3 W01-358-1026 126
W01-358-2132 1T19L-11 W01-358-3407 224
W01-358-5101 224 W01-358-5126 200
W01-358-5135 121 W01-358-5305 1T14C-1
W01-358-5306 1T14C-1 W01-358-5307 1T14C-1
W01-358-5310 1T14C-1 W01-358-5311 1T14C-1
W01-358-5405 1T14C-3 W01-358-5708 1T14C-7
W01-358-5712 1T14C-7 W01-358-6155 131
W01-358-6833 267-1.5 (formerly 255-1.5) W01-358-7019 333
W01-358-7244 201 W01-358-7266 312
W01-358-7271 28 W01-358-7272 121
W01-358-7274 323 W01-358-7275 29

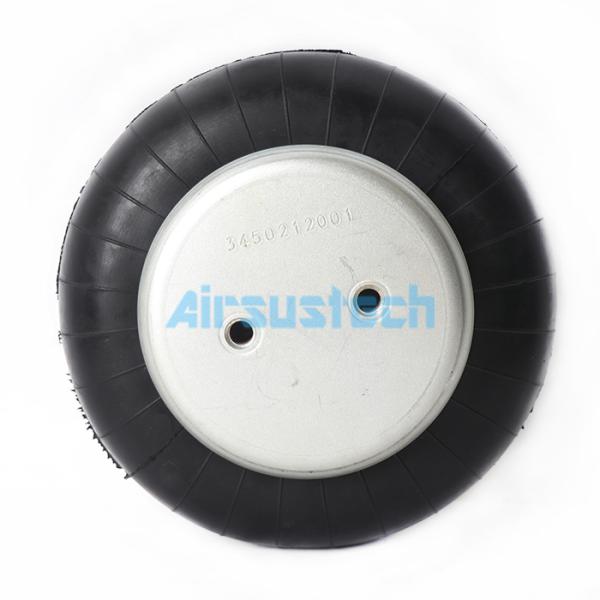

The Detailed Pictures
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air SpringStyle 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring

Factory Workshop
Style 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air SpringStyle 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air SpringStyle 110 Firestone W01-358-7451 1/4NPTF Air Fitting Single Industrial Air Spring
