Air Lift Style 58218 Single Convoluted Natural Rubber Air Spring for OEM Replacement

OEM Cross References

Manufacturer: Air Lift

Refer Number: 58218

Manufacturer: Goodyear

Refer Number: 1B5-500 / 1B5500 / 1B5 500

Manufacturer: Goodyear Rubber Bellows

Refer Number: 579-913-500 / 579913500 / 579 913 500

Manufacturer: Airkraft Style

Refer Number: 1B120

Manufacturer: Enidine

Refer Number: YI 1B5 500 / YI1B5500 / YI-1B5-500

Manufacturer: Enidine

Refer Number: YI-FS50-5-000 / YIFS505000 / YI FS50 5 000

Manufacturer: Firestone

Refer Number: W02-358-5000 / W023585000 / W02 358 5000

Manufacturer: Firestone

Refer Number: W01-358-7609 / W013587609 / W01 358 7609

Manufacturer: Firestone

Refer Number: W01-358-7001 / W013587001 / W01 358 7001

Manufacturer: Numatics

Refer Number: ASNS1111

Product Information

• This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 50 mm, a maximum extended height of 100 mm, and a working stroke of 50 mm.
• For the 1K130070 model, the cover plate diameter is 85 mm, and the center-to-center distance is 44.5 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 150 mm.
• The industrial convoluted rubber air spring operates via gas filling. Its air connection is ZG1/4'', and the screw nut size is 2×M8.

Applications in Machinery and Equipment Manufacturing Industry

1. Machine Tools: Industrial air spring shock absorbers can be used in the cutting tool section of machine tools to reduce impact and vibration during cutting, thereby improving processing quality and precision.

2. Printing Equipment: Industrial air spring shock absorbers can effectively reduce vibration and noise in printing equipment, improving printing quality and efficiency.

3. Wind Turbines: Industrial air spring shock absorbers can be used at the connection between wind turbine blades and towers to reduce wind-induced vibration and extend equipment life.

Industrial air spring shock absorbers are suitable for a wide range of industries and applications, playing a vital role in automotive manufacturing, construction engineering, machinery manufacturing, aerospace, and other fields. They reduce shock and vibration, improving equipment stability, safety, and reliability. By adjusting air pressure, they can adapt to different operating conditions and requirements, providing customized solutions for various industries. The widespread use of industrial air spring shock absorbers will drive the development of related industries and promote the advancement and innovation of industrial technology.

AIRSUSTECH Single Type Air Spring Refer Numbers

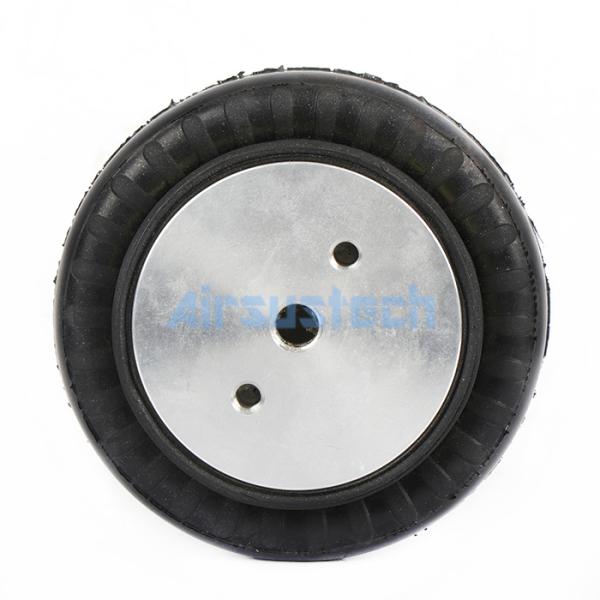

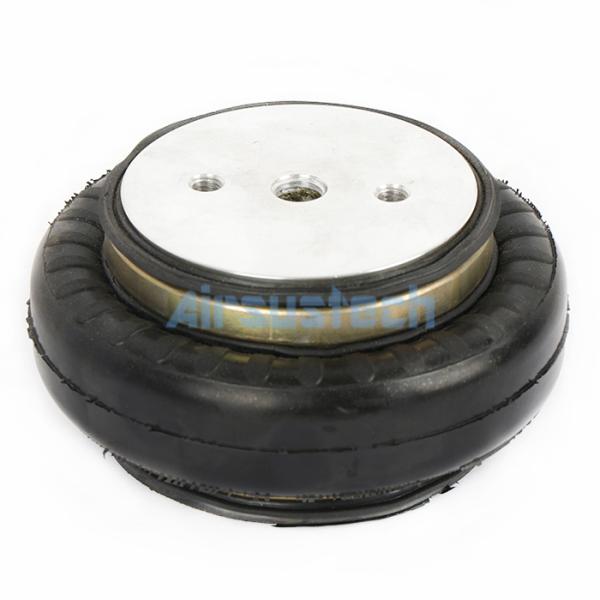

The Detailed Photos

Factory Workshop
