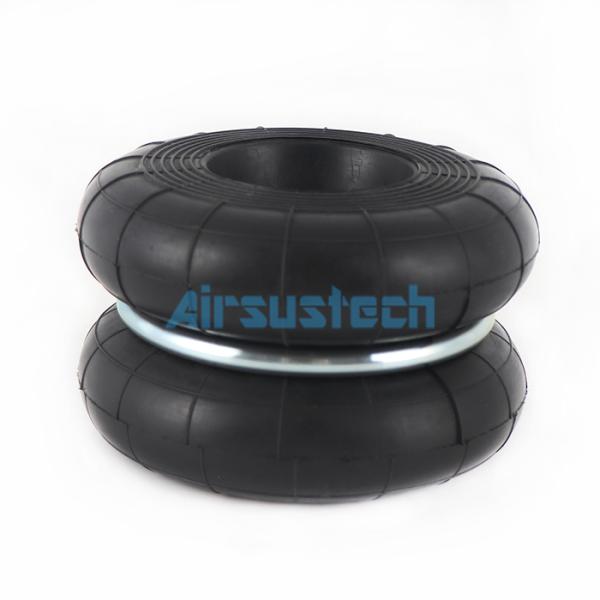

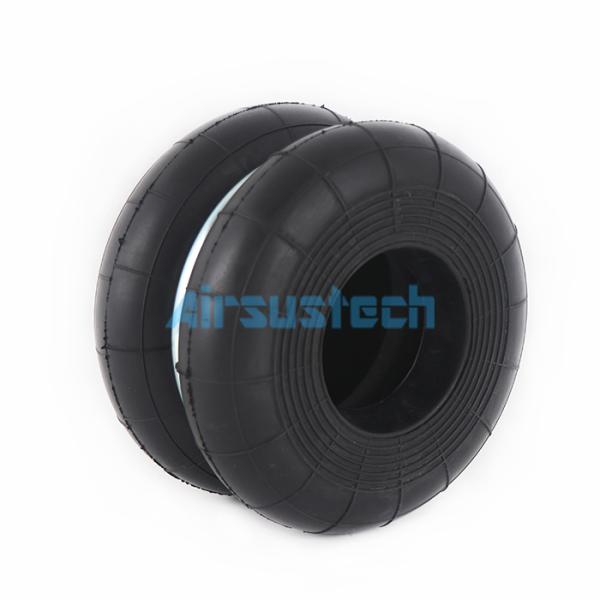

Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
F-120-2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
F-120-2
Maximum Travel :
95 MM
Material :
Natural Rubber
YOKOHAMA :
S-120-2R
Static Height :
98 MM
Sample :
Available
Manufacturer Warranty :
12 Months
Description

Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag

Product Description

The F Series Air Springs are precision-engineered vibration isolation components designed for heavy industrial applications such as punching machines and stamping equipment. Their multi-layer airbag configuration (1-5 layers) delivers exceptional shock absorption, effectively mitigating both high-impact forces and low-frequency vibrations through progressive damping technology. Built to withstand extreme conditions, these air springs feature oil-resistant construction with reinforced fabric layers that endure harsh industrial environments, including exposure to metal particulates and hydraulic fluids. The system operates reliably within a pressure range of up to 8 bar and temperature extremes from -40°C to +70°C, ensuring consistent performance in demanding production settings. Particularly effective in metal forming applications, these durable air springs significantly extend machinery service life while requiring minimal maintenance, making them an optimal solution for vibration control in heavy industrial processes.

Product Specifications: F-120-2

Model Height H (mm) Max. Travel (mm) Max. Diameter (mm) Design Height at 0.49MPa
Max. Internal Pressure (MPa)
Internal Pressure Failure (MPa)
Design Height (mm) Max. Height (mm) Min. Height (mm) Effective Area (cm2) Volume (L) Load (KN) Dynamic Spring Constant (n/mm) Natural Vibration Frequency (Hz)
F-120-2 98 148 53 95 180 113 1.25 5.2 157 2.7 0.88 2.9-3.9
F-120-3 152 227 82 145 180 113 2.1 5.2 98 2.2 0.88 2.9-3.9
F-120-4 206 306 111 195 180 113 3.4 5.2 69 1.8 0.88 2.9-3.9

Cross References

Manufacturer: AIRSUSTECH
Refer Number: F-120-2

Manufacturer: YOKOHAMA
Refer Number: S-120-2R

The Features of AIRSUSTECH F Series Air Springs

  1. The F Series Air Springs represent a significant advancement in industrial vibration isolation technology, specifically engineered to meet the rigorous demands of heavy machinery applications. These high-performance components feature an innovative multi-layer air bag design, available in configurations ranging from one to five layers, allowing for precise tuning of vibration isolation characteristics to match specific operational requirements across varying load conditions.
  2. A key differentiator of the F series is its integrated steel galvanized collar system, strategically positioned between air bag layers to prevent uncontrolled expansion while maintaining optimal performance stability even under extreme pressure conditions. The self-sealing functionality of the air bags eliminates dependency on external sealing mechanisms, effectively preventing air leakage and ensuring consistent, maintenance-free operation over extended periods.
  3. Engineered for challenging industrial environments, these air springs demonstrate exceptional load-bearing capabilities, making them particularly suitable for high-speed presses, hydraulic systems, and other heavy-duty applications where both static and dynamic loads are present. The construction incorporates specially treated materials that provide superior resistance to wear, corrosion, and environmental degradation, ensuring reliable performance in marine, chemical processing, and offshore applications where exposure to harsh elements is commonplace.
  4. The combination of these advanced features results in a vibration isolation solution that delivers unmatched durability, reliability, and performance consistency across the most demanding industrial applications, while significantly reducing maintenance requirements and operational downtime compared to conventional alternatives.

Other Kinds of AIRSUSTECH Punch Air Spring VS. YOKOHAMA Air Bellows

AIRSUSTECH Part Number Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. AIRSUSTECH Part Number Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
F-300-4 S-300-4R S 300 4R

The Related Photos

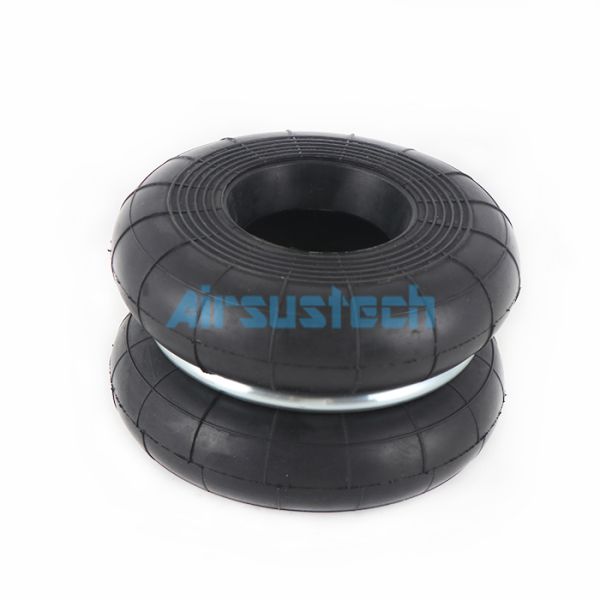

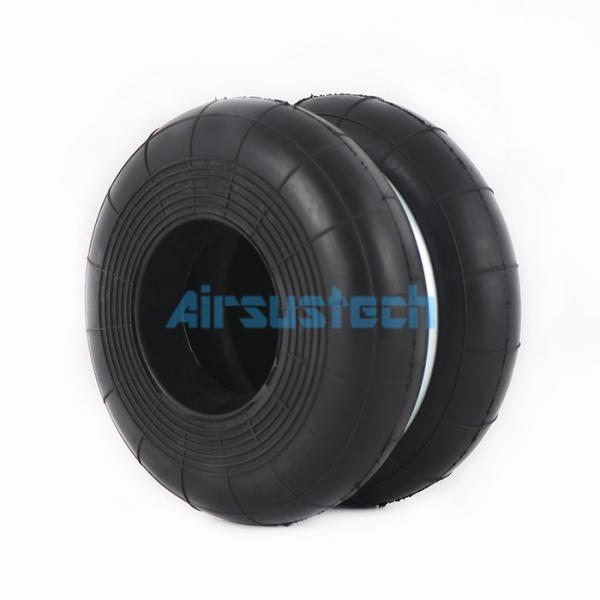

Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air BagYokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag

Factory Workshop
Yokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air BagYokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air BagYokohama S-120-2R Double Convoluted Punch Air Spring AIRSUSTECH F-120-2 Air Bag
