Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B12×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Part Number :
2B12×2T
Air Fitting :
1/2'' BSP
Bellows Type :
Double Convoluted
Parker :
9109041
Compatibility :
Universal
Pressure Ability :
3-8 Bar
Quality :
100% Tested
Description

Easy to Replace Industrial Flange Air Spring for Dunlop Springride SP1541 Air Bag


Product Introduction

Flange air springs represent the optimal solution for modern air suspension systems, delivering superior support and vibration damping through compressed air technology. These advanced components have become essential across automotive applications, including passenger vehicles, commercial trucks, and motorcycles, offering significant improvements over conventional steel spring systems.


OEM Cross References

Firestone

W01-R58-4061, W01R584061, W01 R58 4061
WO1-R58-4061, WO1R584061, WO1 R58 4061
Dunlop Pneuride 12"x2, 12x2, 12'x2
Dunlop Springride SP1541, SP 1541, SP 15 41
Contitech

FD 412-22 DS, FD 41222 DS, FD 412 22 DS
FD412-22 DS, FD41222 DS, FD412 22 DS
Norgren M/31122, M31122, M 31122
Parker 9109041



Product Features

[1] Minimum Height: 74 MM
[2] Maximum Height: 240 MM
[3] Maximum Diameter: 330 MM
[4] Space Required: 345 MM
[5] Full Stroke: 166 MM
[6] Design Height: 160 MM
[7] Center Distance: 232 MM
[8] Cover Plate Diameter: 260 MM
[9] Screw Nuts Type: 4-M10


The Functions of AIRSUSTECH Flange Rubber Air Springs

The fundamental advantage of flange air springs lies in their adaptive air cushion design, which provides:

1 Dynamic load-leveling capabilities
2 Adjustable ride height
3 Progressive spring rates that automatically adapt to changing road conditions
4 Unlike rigid steel springs, the compressed air medium in flange air springs creates a smoother, more controlled response that effectively isolates vehicle occupants from road imperfections. The airtight rubber construction maintains consistent performance without the sagging or fatigue common in metal springs, while the modular flange design allows for straightforward integration into existing suspension architectures.


Key performance benefits include:

1 Enhanced ride comfort through superior vibration absorption
2 Improved vehicle stability and handling
3 Reduced wear on chassis components
4 Longer service life with minimal maintenance requirements
5 For automotive engineers and fleet managers, flange air springs deliver measurable improvements in vehicle dynamics, payload management, and overall ride quality. Their continued evolution, including integration with electronic control systems, positions them as the preferred choice for modern suspension applications where performance and adaptability are paramount.

We Have Other Kinds of Air Shock Bags

Type Plate Diameter (mm) Max. Diameter (mm) Min. Height (mm) Max. Height (mm) Total Stroke (mm) Static Height (mm) Center Distance (mm) Space Installation (mm)
6×1 153 168 45 90 45 80 127 180
8×1 184 230 47 120 73 90 156 240
10×1 210 280 50 135 85 95 181 295
12×1 260 330 50 145 95 95 232 345
14 1/2×1 310 395 47 165 118 105 283 410
6×2 153 168 73 170 97 120 127 180
8×2 184 230 72 225 153 150 156 240
10×2 210 280 70 240 170 160 181 295
12×2 260 330 74 240 166 160 232 345
14 1/2×2 310 395 70 280 210 180 283 410
16×2 310 430 77 320 243 180 283 445
6×3 153 168 105 255 150 180 127 180
8×3 184 215 100 350 250 230 156 240
10×3 210 280 100 365 265 235 181 295
12×3 260 330 100 430 330 222 232 345
14 1/2×3 310 395 100 476 376 280 283 410
16×3 310 430 125 500 375 280 283 445

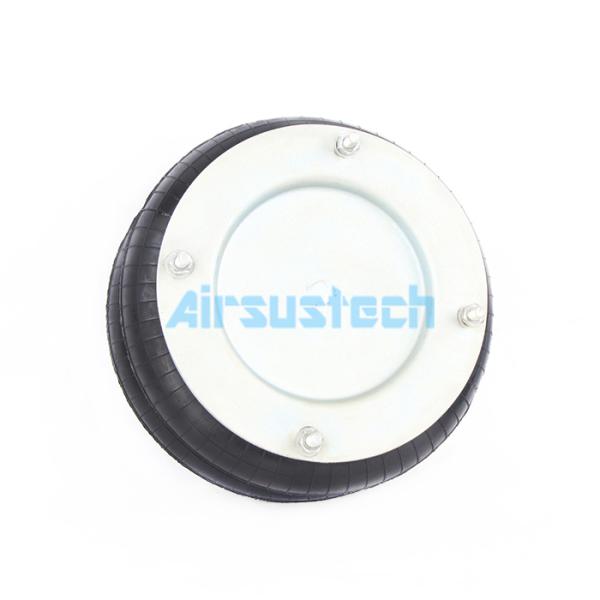

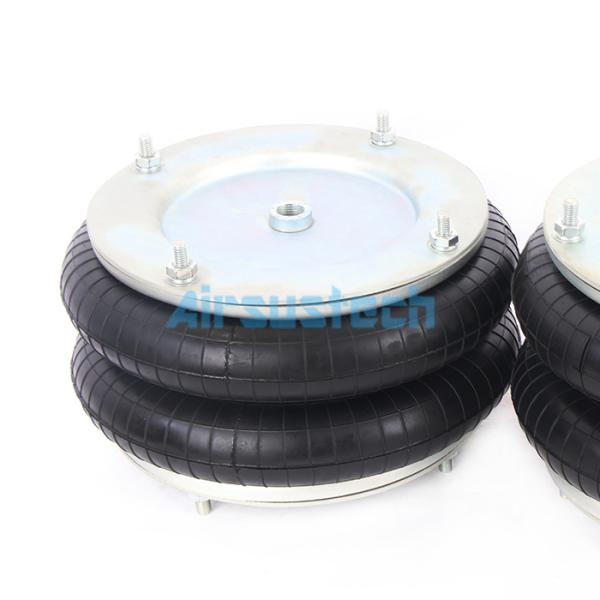

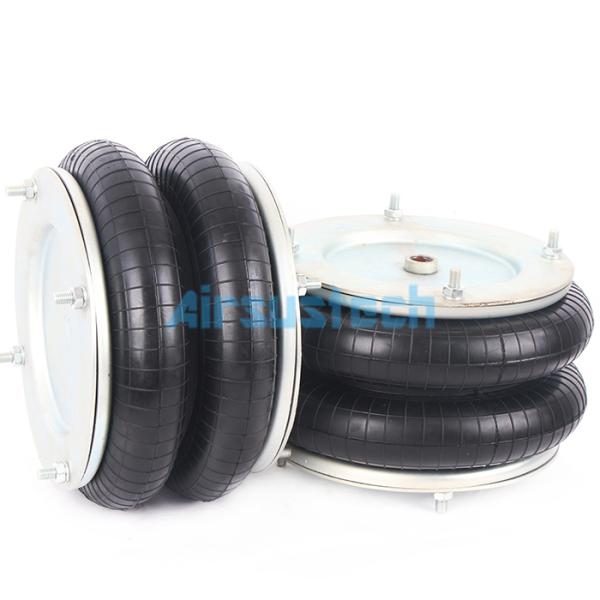

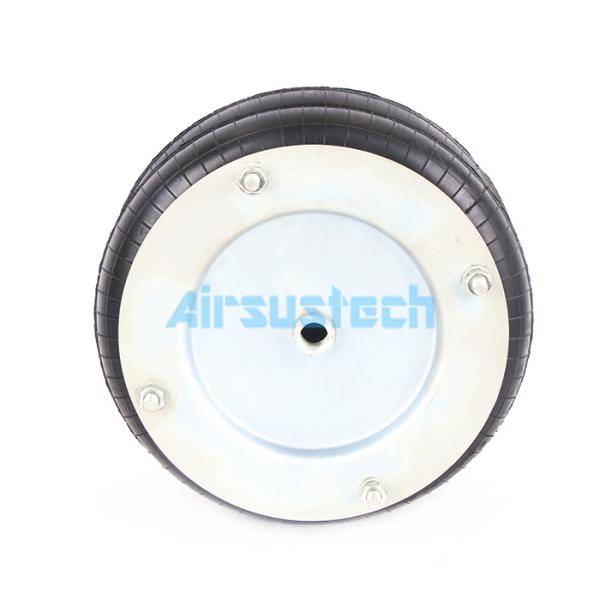

The Real Photos

Easy to Replace Industrial Flange Air Spring for Dunlop Springride SP1541 Air BagEasy to Replace Industrial Flange Air Spring for Dunlop Springride SP1541 Air Bag

Factory Workshop
Easy to Replace Industrial Flange Air Spring for Dunlop Springride SP1541 Air BagEasy to Replace Industrial Flange Air Spring for Dunlop Springride SP1541 Air BagEasy to Replace Industrial Flange Air Spring for Dunlop Springride SP1541 Air Bag
