Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B12×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Working Stroke :
225 MM
Screw Type :
4-M10
Maximum Diameter :
330 MM
Dunlop Pneuride :
12"x2
Sample :
Available
Quality :
100% Tested
Description

FD 412-22 DS Continental Air Actuator for Pneumatic Applications 12''×2 Series Airbag

Product Details

  • Nut/Blind nuts

Nut length: 25 mm
Number of screws on the top cover: 4
Number of bottom cover screws: 4
Top cover plate screw (nut) tooth: 4-M10
Top cover screw center distance: 232 mm
Screw (nut) teeth of the bottom cover plate: 4-M10
Center distance of bottom cover plate screw: 232 mm

  • Air hole/air inlet/air connector

Air hole/air inlet: G1/2

  • Cover

Top cover diameter: 260 mm
Diameter of bottom cover: 260 mm

  • Rubber bellows

Maximum diameter of rubber bellows: 330 mm
Buffer block/buffer block
Unbuffered block
Waist ring/waist ring
Strap ring: no strap ring

OEM Original Manufacturer

Air Spring Supplier: Contitech

Reference: FD 412-22 DS, FD 41222 DS, FD 412 22 DS

Air Spring Supplier: Firestone

Reference: W01-R58-4061, W01R584061, W01 R58 4061

Air Spring Supplier: Dunlop Pneuride

Reference: 12"x2, 12x2, 12'x2

Air Spring Supplier: Dunlop Springride

Reference: SP1541, SP 1541, SP 15 41

Air Spring Supplier: Norgren

Reference: M/31122, M31122, M 31122

Air Spring Supplier: Parker

Reference: 9109041

Air Spring Function

The air spring has nonlinear characteristics, and its stiffness changes with the load, so its natural frequency remains almost unchanged under any load, so the spring device has almost constant characteristics.

1.it has good high-frequency vibration absorption and sound insulation performance

2.it can simultaneously Withstand axial and radial loads.

3.Different bearing capacities can be obtained by adjusting the internal pressure.

Therefore, it can meet the needs of various loads.

Other Kinds of Rubber Air Springs

Single Convoluted Double Convoluted Triple Convoluted
FS 40-6 CI FD 40-10 CI FT 330-29 CI
FS 50-5 CI FD 70-13 CI FT 430-32 CI
FS 70-7 CI FD 110-15 CI FT 530-32 CI
FS 100-10 CI FD 120-17 CI FT 530-35 CI
FS 120-10 CI FD 120-20 CI FT 960-34 CI
FS 120-12 CI FD 200-19 CI FT 1330-35 CI
FS 200-10 CI FD 200-22 CI
FS 310-12 CI FD 200-25 CI
FS 330-11 CI FD 330-22 CI
FS 330-14 CI FD 330-30 CI
FS 530-11 CI FD 530-22 CI
FS 530-14 CI FD 530-35 CI
FS 960-12 CI FD 960-22 CI
FS 1330-11 CI FD 1330-25 CI

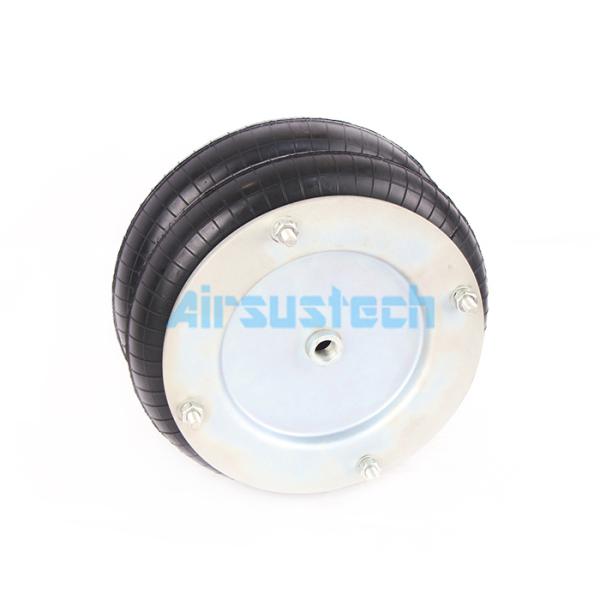

Product Images
