Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B130070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Part Number :
1B130070
Threaded Hole :
M8×1.25
Full Stroke :
41 MM
Structure :
Single Convoluted
Contitech :
FS 50-5
Packaging :
Cartons Or As Customers' Request
Quality Assurance :
12 Months
Description

Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers

Product Features

[1] Min. Compressed Height: 48 MM

[2] Max. Extended Height: 89 MM

[3] Total Stroke: 41 MM

[4] Cover Plate Width: 114 MM

[5] Center-to-Center Distance Diameter: 44 MM

[6] Threaded Hole: 2×M8×1.25

[7] Air Fitting: 1/4BSP

[8] Maximum Outside Diameter: 152 MM

[9] Material: Rubber and Steel

Product Technical Data Sheet

Dynamic Characteristics at 75 mm Design Height
Gauge Pressure (BAR) Load (kN) Spring Rate (kN/m) Natural Frequency (Hz)
3 2.04 140 4.13
4 2.76 177 3.99
5 3.52 217 3.91
6 4.36 256 3.82
7 5.10 293 3.78

Force Table
Assembly Height (mm) Volume @ 100 BAR (cu cm) EFF Area @ 7 BAR (cu sq) kN Force
@ 3 BAR @ 4 BAR @ 5 BAR @ 6 BAR @ 7 BAR
80 575 61 1.61 2.25 2.89 3.62 4.26
70 492 83 2.37 3.20 4.06 4.98 5.81
60 390 99 2.85 3.88 4.89 5.95 6.93

Other OEM Numbers

Style 16

Two Ply Bellows

 Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws)

W01-358-0017 / W013580017 / W01 358 0017

WO1-358-0017 / WO13580017 / WO1 358 0017
Blind nuts, 1/4BSP

W01-M58-6140 / W01M586140 / W01 M58 6140

WO1-M58-6140 / WO1M586140 / WO1 M58 6140
Rubber bellows only

W01-358-0010 / W013580010 / W01 358 0010

WO1-358-0010 / WO13580010 / WO1 358 0010

For Continental Contitech FS 50-5 / FS50-5

For Continental Contitech FS 505 / FS505

For Continental Contitech FS 50 5 / FS50 5

For AIRSUSTECH 1B130070

Applications of AIRSUSTECH Air Bags

  • Hopper Vibration and Damping
  • Mechanical Handling Stop
  • Quick Lock Device
  • Reel Tensioning
  • Machine Isolation
  • Direct Force
  • Impact Absorbtion
  • Roller Tensioning
  • Platform Lift
  • Short Stroke Mechanical Linkage
  • Hot Foll Stamping Press
  • Automation Technology
  • Conveyor Systems

FAQ

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.
Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

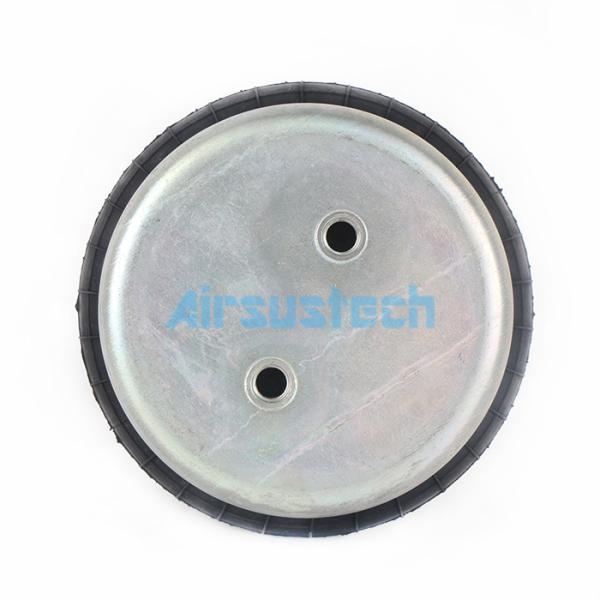

The Detailed Photos

Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample PulverizersFirestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers

Factory Workshop
Firestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample PulverizersFirestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample PulverizersFirestone W01-358-0017 Industrial Air Shock Spring for Mineral Sample Pulverizers
