2PCS Suspension Air Spring Festo EB-215-80 Convoluted Pneumatic Rubber Air Actuator

Product Description

Air bellows are ideal for short-stroke, high-thrust, and single-acting actuators. They are made of fabric-reinforced synthetic rubber and are available with single, double, or triple rotations, depending on the stroke and model. Bellows contain no reciprocating metal parts, resulting in virtually frictionless thrust compared to conventional air cylinders.

Cross References

Phoenix SP 1 B 07
Firestone W01-M58-6165
Contitech FS 120-9
Dunlop 8''x1 S08101
Bosch 822419003
Festo EB-215-80
Norgren PM/31081(8x1)
Weforma WBE 300-E1
Airtech 140293
Airtech 111003/1B-190FB
Megatech 1S120-9 3/4 M8
Firestone W01-M58-6166
Dunlop(FR) 8''x1 S08100
Bosch 822419008
Weforma WBE 300-E2

Product Features

[1] Mounting thread: M8
[2] Compressed air supply port: G1/4
[3] Maximum Outside Diameter: 215 mm

[4] Bellows Type: single convolution
[5] Min. installation height: 50 mm
[6] Max. extended height: 115 mm
[7] C-to-C distance: 70 mm
[8] Total Stroke: 65 mm
[9] Cover plate diameter: 135 mm

Product Technical Parameters

Vibration isolation - dynamic characteristics values

Pneumatic application - static characteristic values

AIRSUSTECH Support and Services

The Suspension Air Springs product technical support and services include:

1. Expert troubleshooting assistance to diagnose and resolve technical issues
2. Guidance on proper installation and maintenance procedures
3. Product documentation, including user manuals and technical specifications
4. Product training and education for customers and service technicians
5. Warranty and repair services, including replacement parts and exchange programs
6. Customer support for urgent technical issues or service needs

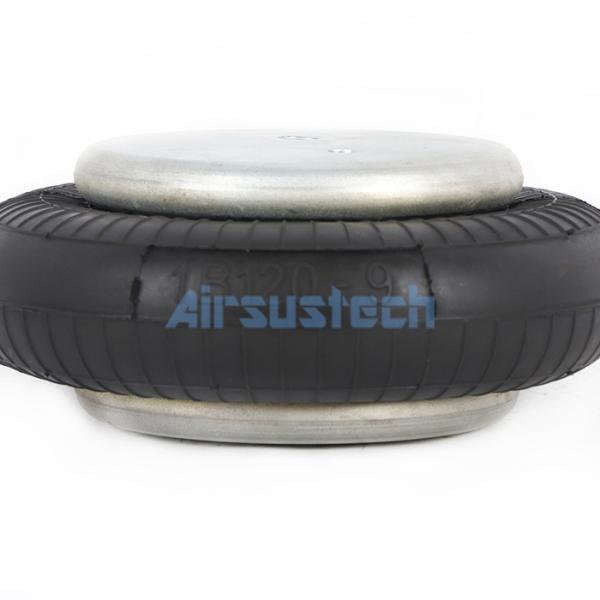

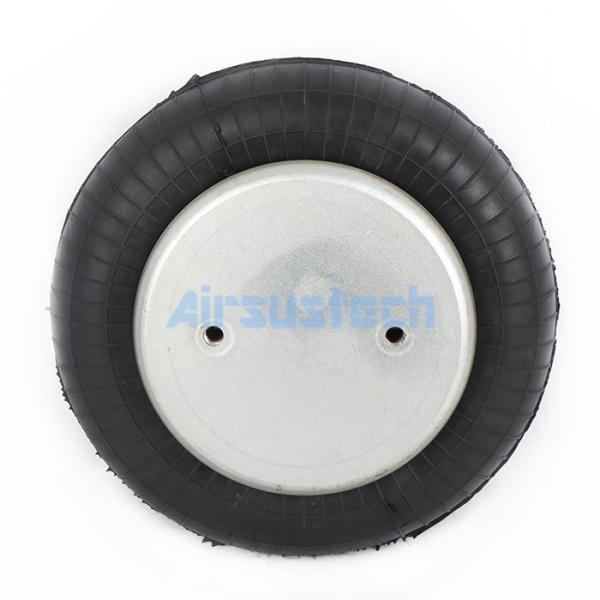

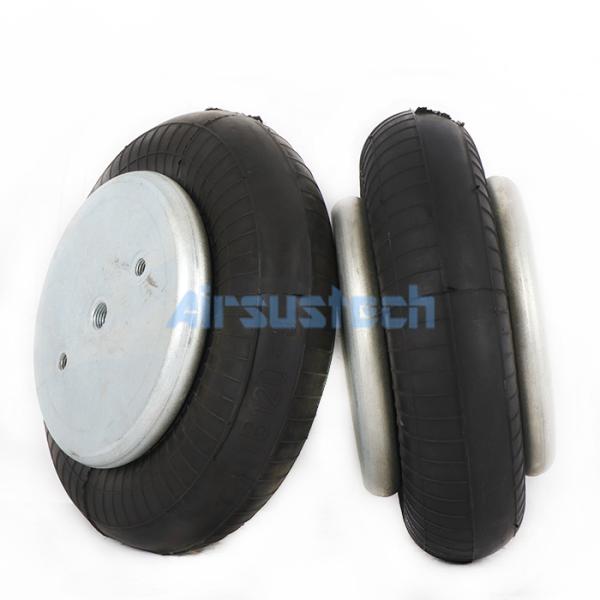

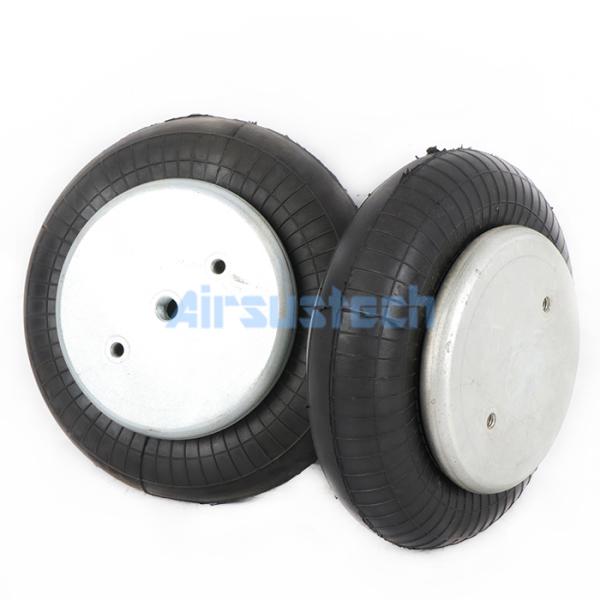

The Detailed Photos of 1B1209
