Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B4.5×2P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
2B4.5×2P
Threaded Hole :
6-M6
Gas Hole :
G3/8
Cover Plate Width :
110 MM
Dunlop :
4 1/2''×2
Quality Assurance :
12 Months
Temperature Range :
-40℃+70℃
Description
100% Tested Double Convoluted Air Spring PM/31042 for Norgren Pneumatic Air Actuator
Product Specifications
Supplier AIRSUSTECH
Part Number 2B4.5×2P
Threaded Hole 6-M6
Gas Hole G3/8
Cover Plate Width 110 MM
Dunlop 4 1/2''×2
Quality Assurance 12 Months
Temperature Range -40℃ to +70℃
OEM Cross References
Norgren PM/31042
Contitech FD 44-10 DI CR
Firestone W01-R58-4051
Dunlop SP2441
Dunlop 4 1/2''×2
DUNLOP UK (PNEURIDE) PNP 305590107
YS-AIR YS-115-2V
Product Details
  • Plate Diameter: 110 MM
  • Center Distance: 93 MM
  • Gas Filled: G3/8
  • Threaded Hole: 6-M6
  • Natural Diameter: 110 MM
  • Bellows Type: double convolutions
  • Material: Rubber and Aluminum
Applications
  • Impact Isolation
    Air springs are often used to isolate impact forces, such as in sawmills to absorb the impact of falling logs and to lift logs onto conveyors. They prevent premature fatigue damage to equipment and structures.
  • Protective Covers and Flexible Couplings
    Air spring bellows with rim ring structure serve as protective covers or flexible couplings, allowing eccentric and torsional movement while protecting internal components.
  • Cam Follower
    When used in cam followers, air springs eliminate rigid contact and friction, reducing wear on cam surfaces and making the mechanism run smoother with less fatigue damage.
Other Available Models
Type Plate Diameter (mm) Min. Height (mm) Max. Height (mm) Total Stroke (mm) Static Height (mm) Center Distance (mm) Space Installation (mm)
4 1/2×1 125 45 90 45 65 93 140
6×1 162 50 110 60 80 127 180
4 1/2×2 125 65 145 80 100 93 140
6×2 168 75 215 140 140 127 180
21 1/2×2 570 90 390 300 200 N/A 595
2 1/4×3 78 80 145 65 119 64 95
4 1/2×3 125 100 200 100 145 93 140
6×3 168 109 262 153 187 127 180

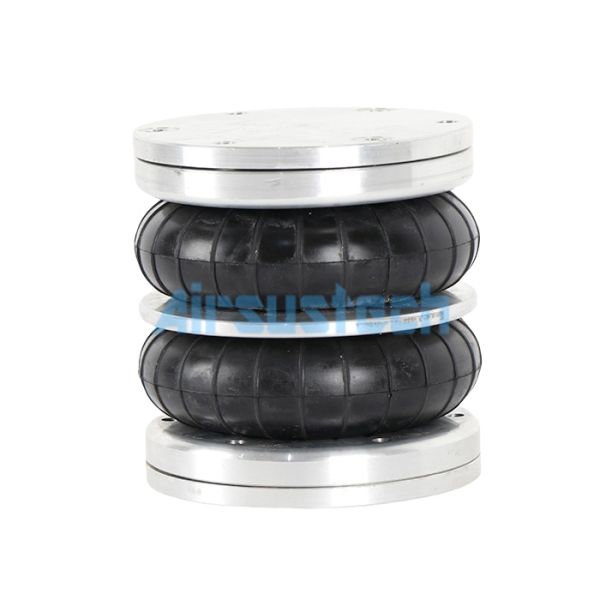

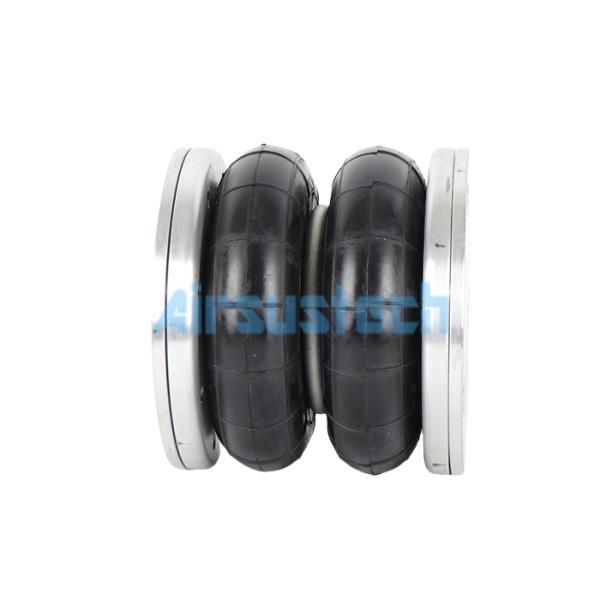

Product Images
100% Tested Double Convoluted Air Spring PM/31042 for Norgren Pneumatic Air Actuator
100% Tested Double Convoluted Air Spring PM/31042 for Norgren Pneumatic Air Actuator
Manufacturing Facility
100% Tested Double Convoluted Air Spring PM/31042 for Norgren Pneumatic Air Actuator
100% Tested Double Convoluted Air Spring PM/31042 for Norgren Pneumatic Air Actuator
100% Tested Double Convoluted Air Spring PM/31042 for Norgren Pneumatic Air Actuator
