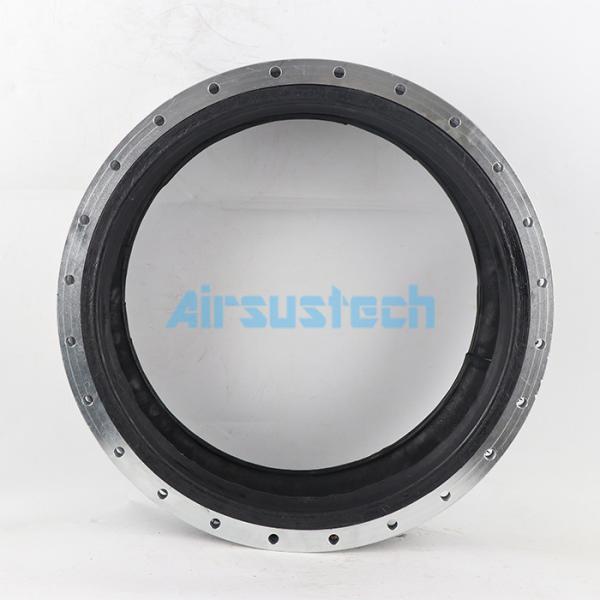

Contitech FS 1330-11 RS Single Convoluted Air Spring with 24-M10 Flange Rings

Product Detailed Datas

Dimensions - Height[min]: 51 mm

Dimensions - Height[max]: 165 mm

Dimensions - Natural Height: 125 mm

Dimensions - Center to Center Distance: 419 mm

Dimensions - Flange Rings Diameter: 451 mm

Dimensions - Maximum Diameter: 530 mm

Dimensions - Installation Space: 570 mm

Screw Type: 24×M10

Product Technical Data Sheet

Vibration isolation - dynamic characteristics values

Pneumatic application - static characteristic values

OEM Cross References

Contitech FS 1330-11 RS

Contitech FS 133011 RS

Contitech FS 1330 11 RS
Firestone W01-358-7197

Firestone W013587197

Firestone W01 358 7197
Firestone W01-358-5135

Firestone W013585135

Firestone W01 358 5135
Firestone W01-358-7272

Firestone W013587272

Firestone W01 358 7272

The Role of the Rubber Air Spring

1. Shock Absorption and Suspension System
Rubber air springs are primarily used as shock absorbers and suspension systems for amusement rides. During rapid acceleration, sharp turns, or drops from great heights, they can effectively absorb shocks and vibrations, thus minimizing damage to the structure and passengers. By adjusting the air pressure, air springs can provide the right amount of cushioning to prevent excessive shock and discomfort.

2. Dynamic Adjustment
The rubber air spring system can be dynamically adjusted to meet the diverse needs of different amusement rides. By varying the air pressure and travel, the force and elasticity of the suspension system can be precisely controlled, allowing it to adapt to different speeds and loads. For example, during the ascent and descent of a roller coaster, the air spring system can automatically adjust the level of support to maintain stability and comfort.

3. Improved Safety and Durability
Rubber air springs not only improve ride comfort but also increase durability. After extended use, these air springs can effectively distribute loads, reduce structural stress, and extend the service life of the equipment. Furthermore, their shock-absorbing function helps reduce structural damage caused by vibration, thus improving driving safety.
