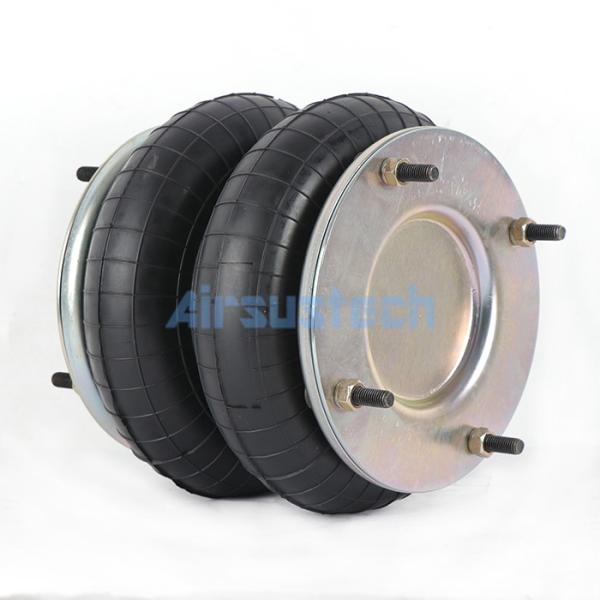

Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B10×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Air Inlet :
G1/2
Natural Diameter :
250 MM
Bellows Type :
Double Convoluted
Quality Assurance :
12 Months
Dunlop Pneuride :
10''×2
Contitech :
FD 210-22 DS
Description

Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring

2B10×2T Specifications

Dimensions - Height: 190 mm

Dimensions - Natural Diameter: 250 mm

Dimensions - Cover Plate Diameter: 210 mm

Dimensions - Center to Center Distance: 181 mm

Dimensions - Air Hole Width: 30 mm

Port Size: G 1/2

Screw Type: 2×4-M10

2B10×2T Technical Data Sheet

Vibration isolation - dynamic characteristics values

Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 6.7 9.2 11.5 13.9 16.3 18.7 7.2
Spring Rate [N/cm] 100 123.5 148 171 194.5 218.5
Natural Frequency [Hz] 1.9 1.8 1.8 1.8 1.7 1.7

Pneumatic application - static characteristic values

Pressure p [bar] 2 4 5 6 7 8 Vol.[l]
Height H [mm] 250 5.28 7.22 9.16 11.2 13.2 15.1 8
200 7.66 10.3 13 15.7 18.4 21.1 6.7
150 9.98 13.4 16.7 20.2 23.6 27 5.2
100 12.4 16.5 20.6 24.8 28.9 33 3.3

Manufacturer Part Number

Firestone W01-R58-4058

Firestone W01R584058

Firestone W01 R58 4058
Dunlop Pneuride 10''×2

Dunlop Pneuride 10'×2

Dunlop Pneuride 10×2
Dunlop PNP 305450112
Airbag Man DB1028
Dunlop Springride SP1538
Contitech FD 210-22 DS

Contitech FD 21022 DS

Contitech FD 210 22 DS
Norgren M/31102

Norgren M31102

Norgren M 31102
Parker 9109021

Air Springs in Agricultural Truck Suspension Systems

  • Air springs are used in truck suspension systems to ensure a smooth and steady ride. Their excellent vibration isolation ensures the comfort of vehicle occupants and effectively suppresses road noise, shocks, and vibrations.
  • These rubber air springs are designed to withstand the harsh environmental conditions found in agriculture, including mud, dust, and prolonged exposure to moisture.
  • Thanks to their reliability, compact design, durability, and maintenance-free operation, they are the perfect solution for tractor vibration isolation systems.

FAQ

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.
Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

The Real Pictures
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air SpringNatural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring


Factory Workshop
Natural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air SpringNatural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air SpringNatural Height 190MM Air Bellows Firestone W01-R58-4058 Pneumatic Air Spring
