Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1K130070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Material :
Rubber and Steel
Design Height :
70 MM
Bellows Type :
Single Convoluted
Goodyear :
579-913-500
Firestone :
W01-358-7001
Operation :
Gas-Filled
Description

Gas Filled Rubber Air Spring Enidine YI1B5500 Goodyear 1B5-500 Air Shock Suspension

Product Information

Part Number 1K130070
After-sales Service 12 Months
Type Gas-filled
Quality 100% Tested
Temperature Range -40℃+70℃
Packaging Cartons Or As Customers' Request
Transportation By Sea/By Air/By DHL/By FedEx/By UPS
Payment Terms T/T, Paypal

1K130070 Air Bags Detailed Datas

Body Dia.[Max]: 150 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 50 mm
Pressure [Max]: 0-8 bar
Height [Max]: 100 mm
Height [Min]: 50 mm
Air Inlet: ZG1/4
Nut/Blind Nuts: 2×M8
Center to Center Distance: 44.5 mm
Center Distance Air Hole Betweeen Screw: 2×M8
Cover Plate Diameter: 85 mm

AIRSUSTECH 1K130070 Replaces These Following Air Springs

Enidine Air Spring: YI 1B5 500

Enidine Air Spring: YI1B5500

Enidine Air Spring: YI-1B5-500

Goodyear Air Spring: 1B5-500

Goodyear Air Spring: 1B5500

Goodyear Air Spring: 1B5 500

Goodyear Rubber Bellows NO. 579-913-500

Goodyear Rubber Bellows NO. 579913500

Goodyear Rubber Bellows NO. 579 913 500
Air Lift Air Spring: 58218
Airkraft Style 1B120
ContiTech Order No. 61388

Enidine Air Spring: YI-FS50-5-000

Enidine Air Spring: YIFS505000

Enidine Air Spring: YI FS50 5 000

Firestone No. W02-358-5000

Firestone No. W023585000

Firestone No. W02 358 5000

Firestone Air Spring: W01-358-7609

Firestone Air Spring: W013587609

Firestone Air Spring: W01 358 7609

Firestone Bellows No. 16-ST

Firestone Bellows No. 16ST

Firestone Bellows No. 16 ST

Firestone Air Spring: W01-358-7001

Firestone Air Spring: W013587001

Firestone Air Spring: W01 358 7001
Firestone Bellows No. 16
Firestone New Bellows No. 16B
Numatics Air Spring: ASNS1111

AIRSUSTECH Airbags Applications in Different Fields

Medical equipment Isolate vibrations in MRI machines, surgical robots, or lab instruments to ensure operational accuracy and patient safety.
Conveyor systems Maintain consistent belt tension and absorb shocks during material transport, reducing wear on rollers and joints.
Packing Cushion high-speed packaging machinery (e.g., filling or sealing units) to minimize vibration impact on product integrity.
Scissor lifts Enhance stability during elevation by compensating for dynamic loads and uneven surfaces, preventing sudden jerks.
Hopper vibration and damping Reduce structural vibrations in hoppers during material discharge, preventing fatigue cracks and noise.
Mechanical handling stops Absorb kinetic energy in material handling systems (e.g., pallet stops) to prevent damage from abrupt load impacts.
Quick lock devices Provide controlled damping during rapid tool engagement/disengagement to avoid mechanical stress and misalignment.
Reel tensioning Maintain uniform tension in winding/unwinding systems (e.g., paper, film, or wire reels) to prevent material breakage.

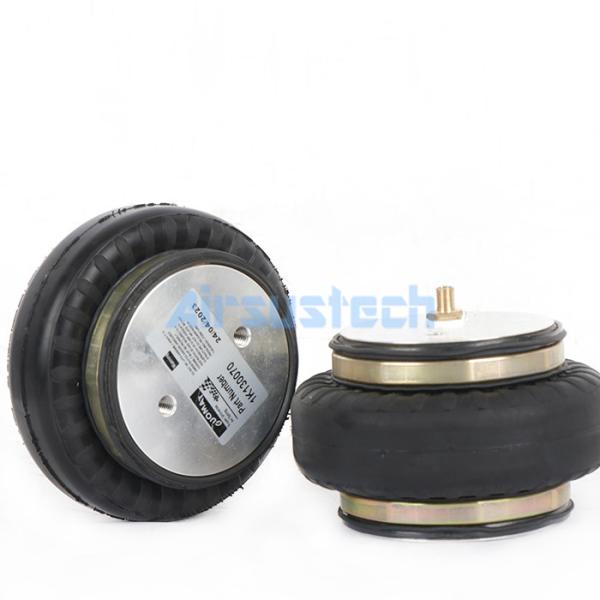

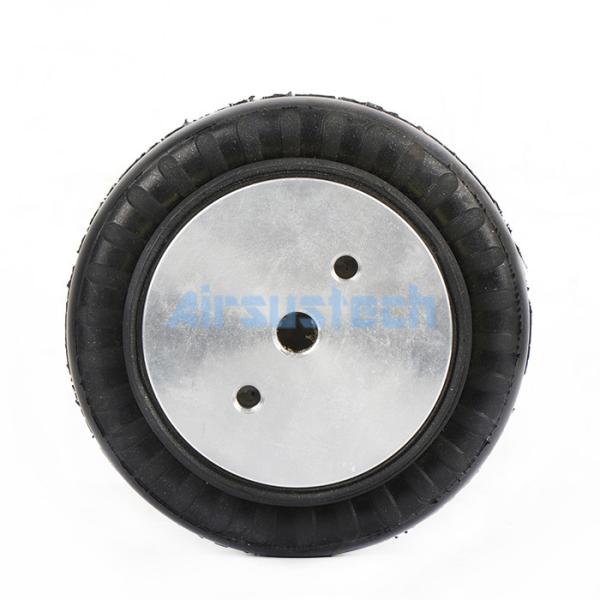

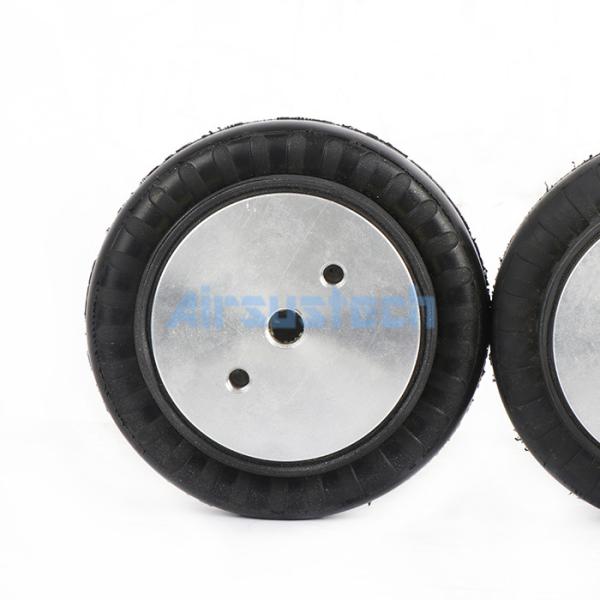

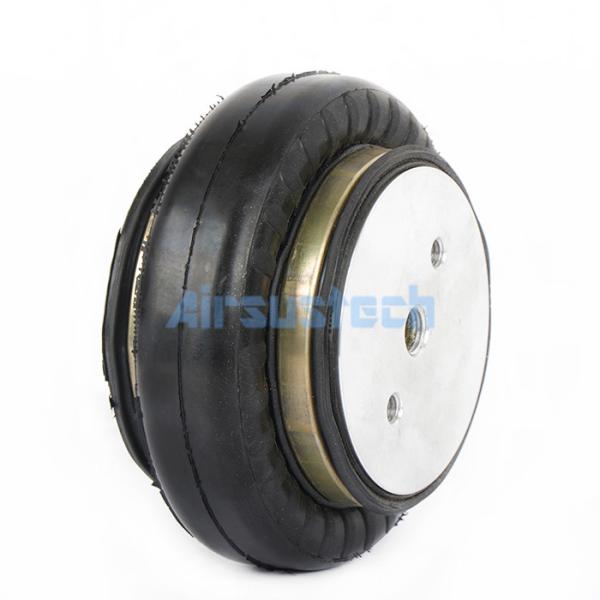

The Related Pictures of 1K130070
