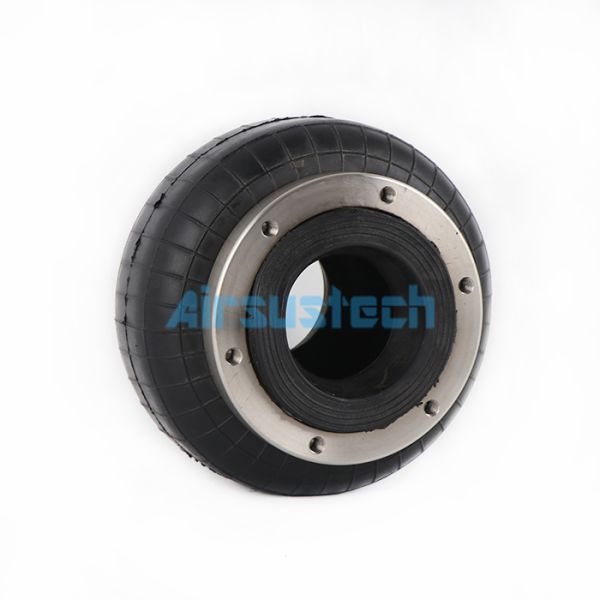

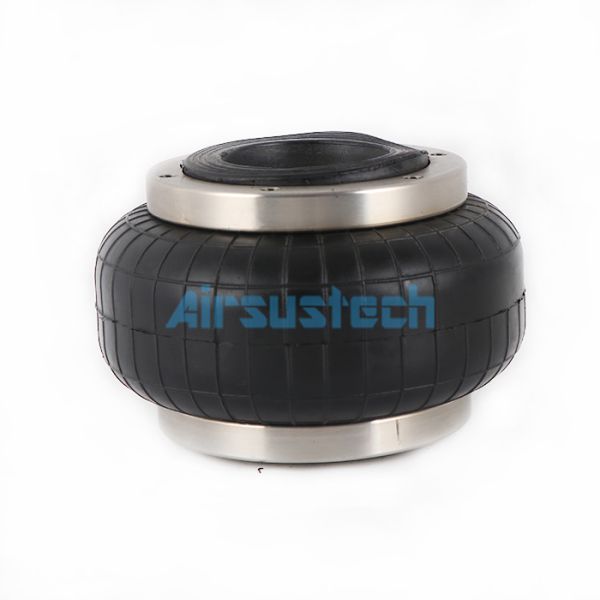

1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter
Specifications
Product Number :
1H5081
Operating Temperature :
-40℃+70℃
Part Number :
GART ARI.275
Natural Height :
117 MM
Inner Diameter :
70 MM
After-sales Service :
One Year
Brand Name :
AIRSUSTECH
Model Number :
1H5081
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, , Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Sturcture :
Single Convoluted
Description

1H5081 Model 88540 Air Spring Bellows 6-M8 Screw Air Bag 186MM Natural Diameter

1H5081 Air Spring Details

Maximum Diameter of Rubber Bellow 186 mm
Outer Diameter 103 mm
Inner Diameter 70 mm
Natural Diameter 117 mm
Flange Width 134 mm
Center to Center Distance 118 mm
Bellows Type single convoluted
Flange Length 15 mm
Material Rubber and Steel


OEM Part Numbers

Model 88540

Model 89023
GART ARI.275
Model 88820
Model 93079
Model 89023


Air Springs Application Fields

Cheese and dairy industry machines
Textile Machinery
Paper Mill Machinery
Vibrating Machinery
Presses and Forges
Lifting Tables
Solar Trackers
Wood pilling machines and debarkers
Ripper Machine application for the mining and construction area
Amusement parks
Machines for brick manufacturing
Industrial washing machines
Bevelling machines

Assembly Method of Air Springs


(1) The insertion of lumbar ring
The air spring is pressed inward by hand, and the ring is inserted in turn. After the ring is inserted into the fixed position, the air spring under pressure is pulled out to restore its original state. When there are 4 or more flaps, rings can be mounted from both sides according to this method.


(2) the installation method of upper and lower plates
The upper and lower plates and the air spring are gently inserted, and after height restriction, compressed air is gradually sent in to improve the internal pressure. The upper and lower plates can be automatically inserted with the air spring to achieve sufficient airtightness. If internal pressure is applied at unrestricted height, the upper and lower plates will collapse out. Therefore, it is important to pressurize the upper and lower plates in a device of sufficient strength to limit height. Air spring and upper and lower plate sealing parts, such as foreign bodies, rust, oil and other phenomena, should be cleaned up before operation. In addition, the rubber and the upper and lower board of the joint part of some soap and water, will be more easy to chimeric.

Other Single Air Springs with Flange Ring

1H086060
1H120060
1H150076
1H188102-A
1H215120
1H235118
1H235150
1H260135
1H260126
1H320124

FAQ

Q: How do you make our business long-term and good relationship?
A: 1. Good quality and competitive prices ensure our customers benefit;
2.We respect every customer as our friend, we sincerely do business and make friends with them, no matter where they come from.
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.
Q: Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
