Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Contitech FS 530-14 Triangle Air Suspension AS-4442 Rubber Bellow for Firestone W01-358-7103
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B53014
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Product Number :
1B53014
Working Stroke :
81 MM to 160 MM
Bellows Type :
Single Convoluted
Contitech :
FS 530-14
Firestone :
W01-358-7103
Air Hole :
1/4NPTF
Warranty :
One Year
Description

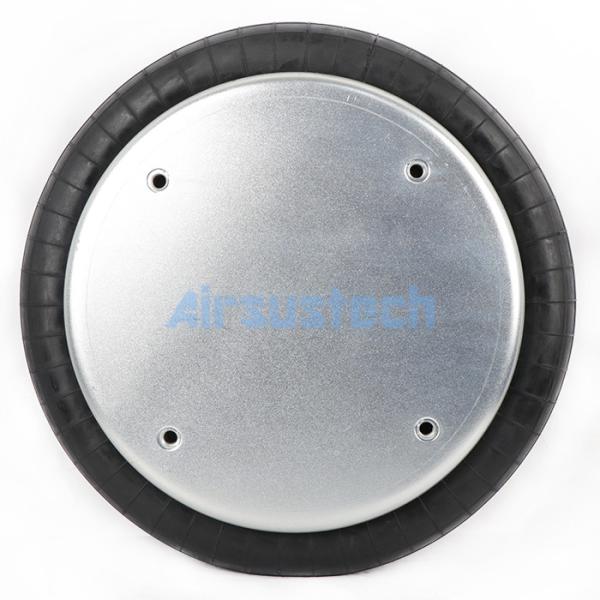

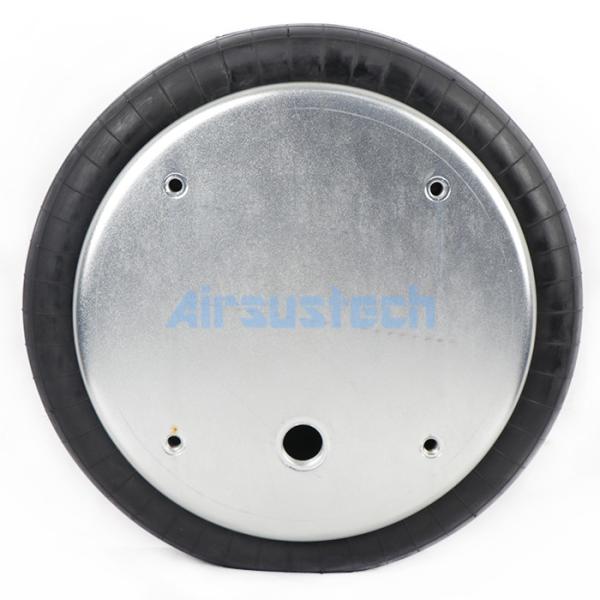

Triangle Air Suspension AS-4442 Rubber Bellow Contitech FS 530-14 Air Spring System

Product Dimensions

Dimensions - Minimum Height: 81 mm

Dimensions - Maximum Height: 160 mm

Dimensions - Cover Plate Diameter: 289 mm

Dimensions - Center to Center Distance: 158.8 mm

Dimensions - Maximum Outer Diameter: 408 mm

Air Connection: 1/4NPTF

Screw Type: 4×3/8-16UNC

Superseded Part Numbers

Triangle Number: AS-4442

Triangle Number: AS4442

Triangle Number: AS 4442

Contitech Number: FS 530-14

Contitech Number: FS 53014

Contitech Number: FS 530 14

Firestone Number: W01-358-7103

Firestone Number: W013587103

Firestone Number: W01 358 7103
FleetPride Number: AS7103

Goodyear Number: 1B14-350

Goodyear Number: 1B14350

Goodyear Number: 1B14 350
Goodyear Flex No. 578913351
Taurus Number: 6326
TRP Number: AS71030

Peerless Number: 0550-00015

Peerless Number: 055000015

Peerless Number: 0550 00015

How Do You Know if You Need New Industry Air Spring?

If you notice signs of physical damage such as cracks, breaks, or uneven wear, if the ride height is noticeably off, or if you experience poor handling or uneven tire wear, you may need new industrial air springs. If the air spring pressure increases when it should be stable, makes unusual noises, or smells as if it's burning, this could also be an indication that it's time for a replacement.


Here's a more detailed analysis of these signs:

1 Physical Damage Inspect the rubber surface of the air spring for cracks, breaks, dents, or blisters. Also check metal parts for rust, oil leaks, or uneven wear.
2 Ride Height Problem Sagging of the suspension, uneven ride height from side to side, or a ride that's too low can indicate a problem with the air spring, especially if these issues are accompanied by changes in the vehicle's overall handling.
3 Poor handling and tire wear If your vehicle handles poorly, especially if there is a noticeable difference between the left and right sides or if your tires wear unevenly, these could be signs of a faulty air spring.
4 Pressure increase Monitor the air spring pressure and compare it to the manufacturer's recommendations. If the vehicle is idling and the pressure rises above the specified range, this could indicate a problem.
5 Unusual noises and smells Popping, clanking, or squealing noises, as well as unusual smells such as burning or musty, could also indicate a problem with the air spring or related components.
6 Reduced braking efficiency

If your vehicle's stopping distance noticeably increases or the brakes become heavier, this could be due to a problem with the air spring.

We Have Other Air Springs Cross Contitech Convoluted Rubber Bellows

Contitech Pneumatic Actuator FS 22-3 DI G 1/4 M6
Contitech Pneumatic Actuator FS 44-5 DI G 3/8 M6
Contitech Pneumatic Actuator FS 76-7 DI G 1/2 M8
Contitech Pneumatic Actuator FS 76-7 DS G 1/2 M10
Contitech Pneumatic Actuator FS 138-8 DS G 1/2 M10
Contitech Pneumatic Actuator FS 210-10 DS G 1/2 M10
Contitech Pneumatic Actuator FS 412-10 DS G 1/2 M10
Contitech Pneumatic Actuator FS 614-13 DS G 1/2 M10
Contitech Pneumatic Actuator FS 816-15 DS G 1/2 M10
Contitech Air Spring FD 22-4 DI G 1/4 M6
Contitech Air Spring FD 44-10 DI G 3/8 M6
Contitech Air Spring FD 76-14 DI G 1/2 M8
Contitech Air Spring FD 76-14 DS G 1/2 M10
Contitech Air Spring FD 138-18 DS G 1/2 M10
Contitech Air Spring FD 210-22 DS G 1/2 M10
Contitech Air Spring FD 412-22 DS G 1/2 M10
Contitech Air Spring FD 614-26 DS G 1/2 M10
Contitech Air Spring FD 816-30 DS G 1/2 M10
Contitech Air Suspension FT 22-6 DI G 1/4 M6
Contitech Air Suspension FT 44-15 DI G 3/8 M6
Contitech Air Suspension FT 76-20 DS G 1/2 M10
Contitech Air Suspension FT 138-26 DS G 1/2 M10
Contitech Air Suspension FT 138-26 DS G 1/2 M10
Contitech Air Suspension FT 210-32 DS G 1/2 M10
Contitech Air Suspension FT 412-32 DS G 1/2 M10
Contitech Air Suspension FT 614-36 DS G 1/2 M10
Contitech Air Suspension FT 816-40 DS G 1/2 M10
