1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5171
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
1B5171
Working Stroke :
105 MM
Type :
Single Convoluted
Air Hole :
1/4NPTF
Standard :
OEM Standard
Working Temperature :
-40℃+70℃
Material :
Rubber and Steel
Description

1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension

Product Information

Convoluted bellows springs consist of one, two, or three bellows and are suitable for a wide variety of applications and suspension systems. These air springs are suitable for all types of trucks, trailers, and industrial applications. They are available in various load capacities, ride heights, and with various mounting plates.

1B5171 Air Bag Detailed Datas

Diameter of the Top Cover Plate 231 mm
Center-to-Center Distance of Screws on the Top Cover Plate 157.5 mm
Diameter of the Bottom Cover Plate 231 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate 157.5 mm
Screw (Nut) Thread Count for the Top Cover Plate 3×3/8-16UNC
Screw (Nut) Thread Count for the Bottom Cover Plate 4×3/8-16UNC
Air Inlet 1/4NPTF
Max Diameter of the Rubber Bellow 325 mm
Maximum Height 160 mm
Minimum Height 55 mm

Operation Principles of AIRSUSTECH Convoluted Air Bellows

Inflation:

  1. Compressed air is pumped into the bellows via the inlet valve, causing it to expand vertically.
  2. The single convolution allows controlled radial expansion, maintaining a compact profile.

Load Support:

  1. The pressurized air inside the bellows creates a "spring" effect, supporting the applied load (e.g., vehicle chassis, machinery).
  2. Stiffness is proportional to air pressure: Higher pressure = stiffer spring rate.

Compression:

  1. When a load is applied (e.g., hitting a bump), the bellows compresses, reducing its height.
  2. The single fold flexes inward, absorbing energy and dampening shocks.

Rebound:

  1. As the load decreases, the air pressure pushes the bellows back to its original shape, returning stored energy.

Adjustability:

Air pressure can be dynamically adjusted to:

  1. Tune ride height (e.g., leveling a vehicle).
  2. Modify stiffness for varying loads or road conditions.

AIRSUSTECH Single Convoluted Rubber Springs Cross Other Air Bags

Supplier Cross References
1K130070

Goodyear 1B5-500
Goodyear Rubber Bellows NO. 579-913-500
Air Lift 58218
Airkraft Style 1B120
ContiTech Order No. 61388
Enidine YI 1B5 500
Enidine YI-FS50-5-000
Firestone No. W02-358-5000
Firestone W01-358-7609
Firestone Bellows No. 16-ST
Firestone No. W01-358-7001
Firestone Bellows No. 16
Firestone New Bellows No. 16B
Numatics ASNS1111
1B53014

Contitech FS 530-14
Triangle AS-4442
Firestone W01-358-7103
FleetPride AS7103
Goodyear 1B14-350
Goodyear Flex No. 578913351
Taurus 6326
TRP AS71030
Peerless 0550-00015
1B9×5

Goodyear 1B9-204
Goodyear 1B9-202
Goodyear Bellow No. 578-91-3-201
1B7070

Contitech FS 70-7
Phoenix SP 1B 05
Bosch 8224 19002
Festo EB-165-65
Weforma WBE 200-E1
Firestone W01-M58-6155
1B4060

Contitech FS 40-6
Phoenix SP 1B 04
Weforma WBE 100-E1

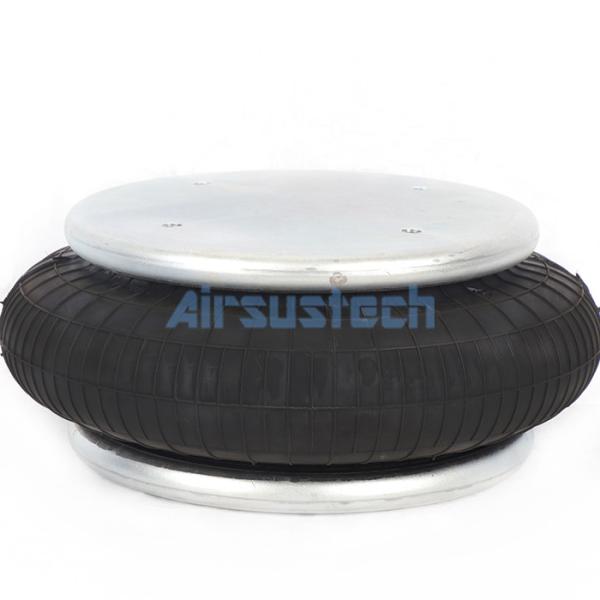

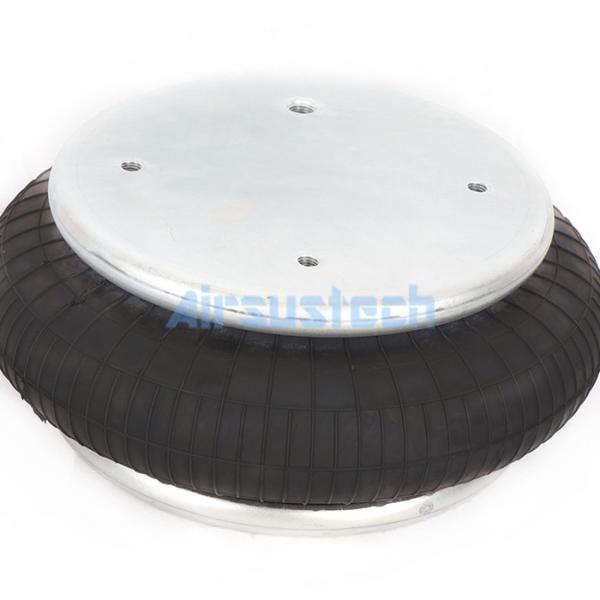

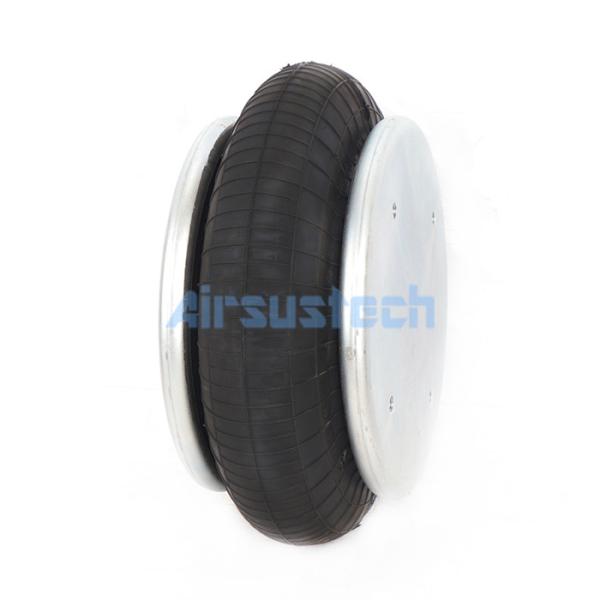

1B5171 Detailed Pictures

1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension


Factory Workshop
1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension1B5171 Suspension Air Spring Max. Diameter 325 MM Rubber Air Shock Suspension
