AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5010
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Compressed Height :
1.9 Inches
Extended Height :
3.5 Inches
Air Hole :
1/4NPT
Material :
Rubber+Steel
Goodyear :
1B6-051
Sample :
Available
Description

AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag


Quick Details

Part NumberAIRSUSTECH 1B5010
Warrantyone year
StandardOEM standard
Materialrubber and steel
Quality100% Tested
Sampleavailable
TrasnportationBy Sea/By Air/By DHL/By FedEx/By UPS
PaymentT/T, Western Union, Paypal or Others
ConditionBrand New



We Have Other Air Bags Cross Firestone Style 16

Style 16Blind nuts, 1/4NPT

W01-358-7001, W013587001, W01 358 7001
WO1-358-7001, WO13587001, WO1 358 7001

Blind nuts, 3/4NPT

W01-358-6996, W013586996, W01 358 6996
WO1-358-6996, WO13586996, WO1 358 6996

Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)

W01-358-0017, W013580017, W01 358 0017
WO1-358-0017, WO13580017, WO1 358 0017

3/4NPT (only) upper plate, blind nuts lower plate

W01-358-0286, W013580286, W01 358 0286
WO1-358-0286, WO13580286, WO1 358 0286

Rubber bellows only

W01-358-0010, W013580010, W01 358 0010
WO1-358-0010, WO13580010, WO1 358 0010



Product Specifications

Body Dia.[Max]: 6.0 in .
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: mm
Pressure [Max]: 0-8 bar
Height [Max]: 3.5 in.
Height [Min]: 1.9 in.
Air Inlet: 1/4 NPT
Nut/Blind Nuts: 2×3/8-16
Center to Center Distance: 1.75 in.
Center Distance Air Hole Betweeen Screw: 2×3/8-16
Cover Plate Diameter: 4.50 in.


Differentiated Applications of Air Bags

1. Primary Trailer Suspension Air Springs
Shield cargo from damage and reduce maintenance issues caused by road shocks and "trailer hop" when empty, extending trailer lifespan and enabling diverse cargo hauling to minimize empty-mile costs.

2. Lift Axle Air Bags
Allow in-cab axle lifting to save tire wear under empty/partial loads and facilitate tight-corner navigation with spread tandems.

3. Drive Axle Air Shock Suspensions
Greatly improve tractor ride and handling for enhanced driver comfort/safety, reduced maintenance, prolonged tire life, and higher resale value—lasting over twice as long as steel springs with minimal upkeep.

4. Front Axle Air Spring Assembly
Significantly optimize steering/handling, reduce tire wear, and mitigate cab vibration-related problems.

5. Cab Mount Air Rubber Bellows
Eliminate common issues with standard mounts and reduce damaging cab vibrations.

6. Seat Rubber Air Springs
Enhance driver comfort and alleviate hazardous fatigue during long operations.

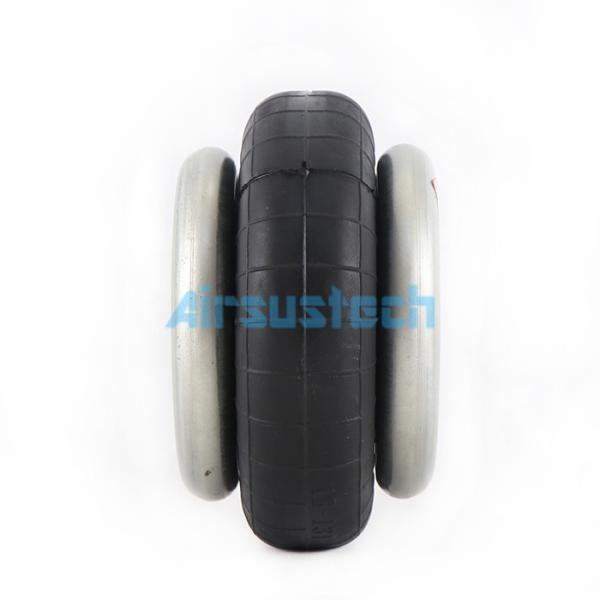

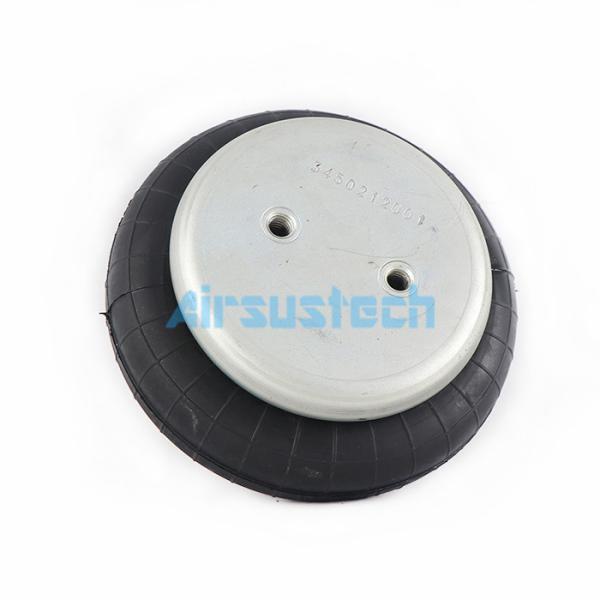

Product Images

AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air BagAIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag

Factory Workshop
AIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air BagAIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air BagAIRSUSTECH 1B5010 Rubber Air Spring W01-358-7001 by Firestone Pneumatic Air Bag
