Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437
Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437
Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437
Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437
Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437
Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7437
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and mental
Certifications :
ISO/TS16949:2009
Warranty :
12 Months
Packing :
Neutral Box Or As Customers' Request
Applications :
Industrial Machines Or Others
Sample :
Available
Cross Reference :
Firestone W01-358-7437
Description

Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437 Continental FD 330-22 334 Double Convoluted Air Spring

Cross reference

Air spring supplier: Firestone
Supplier number: W01-358-7437; W013587437; W01 358 7437; WO1-358-7437; WO13587437; WO1 358 7437

Air spring supplier: Contitech
Supplier number: FD 330-22 334; FD 330 22 334; FD 330-22334; FD330-22 334; FD330-22334; FD33022334

Air spring supplier: Goodyear
Supplier number: 2B12-320; 2B12 320; 2B12320
Goodyear bellow number: 578923309; 578 92 3 309; 578-92-3-309
Air spring supplier: Triangle
Supplier number: 6316; 4334

Air spring supplier: Dayton
Supplier number: 3547437
Air spring supplier: Leland
Supplier Number: Sc2025; SC2025
Air spring supplier: Navistar
Supplier Number: 554789C1
Air spring supplier: Hendrickson
Supplier Number: S13037
Air spring supplier: Ridewell
Supplier Number: 1003587437C
Air spring supplier: Neway Holland
Supplier Number: 90557015
Air spring supplier: KwikLok/Todco
Supplier Number: TC1443A

Specifications and Tecnical Parameters: 2B7437

1. Max. OD

325mm

2. Top plate Bolt/Stud Qty

 2pcs
3. The distance between the two studs/bolts 157mm
4. Bottom plate bolts/studs Qty 2pcs
5. The distance between the two bolts/studs on bottom plate 157mm

6. Cover plate diameter(width)

231 mm

7. Min. Height

104mm

8. Max. height

305mm

9. Bumper block/bumper

Yes

10. Belt loop/Girdle ring/Girdle hoop

one piece
11. Air Inlet/ Air Fittings Offset, 73mm

Convoluted air spring can be used in bulk bag filling

Lift and vibrate
Filling, settling and metering applications
Low maintenance

What is air spring force


The pneumatic (air) spring is basically a column of confined gas in a container designed to utilize the pressure of the gas as a force medium of the spring. The compressibility of the gas provides the desired elasticity for suspension use.

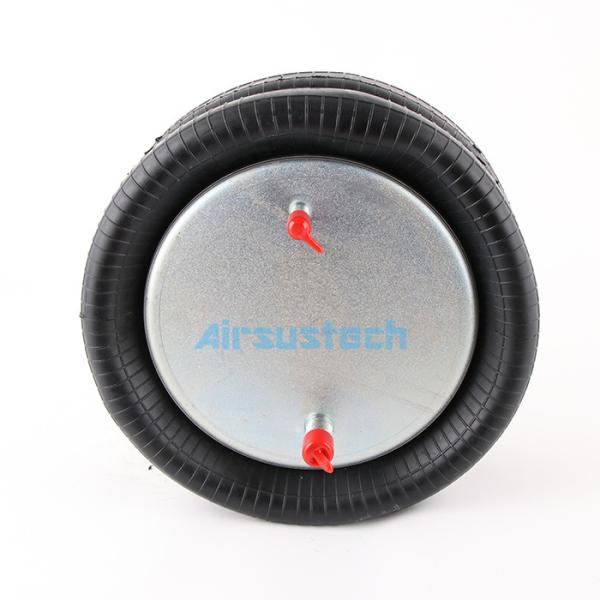

The picture of 2B7437 air spring/air bellow assy/air shocks/air balloon

Continental FD 330-22 334 Double Convoluted Air Spring Bulk Bag Filling Air Bellow Assy Firestone W01-358-7437

FAQ

1.what can you buy from us?
air spring, industrial air spring,pneumatic air spring bag,air suspension

2. why should you buy from us not from other suppliers?
We specialize in the production and sale of air spring 15 years. It is high quality and durable. We hope to become your earnest business partner and your contact will be warmly welcomed.

3. what services can we provide?
Accepted Delivery Terms: CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union Or Others.
