Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
Specifications
Brand Name :
AIRSUSTECH
Model Number :
G3014
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Minimum Height :
1.5 Inches
Maximum Height :
3.5 Inches
Threaded Hole :
5/16-18
Goodyear :
1S3-013
Firestone :
W02-358-3001
Working Temperature :
-40℃+70℃
Description

Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags



Product Description

  • AIRSUSTECH G3014
  • Firestone W023583000
  • 1M1A-0 Firestone Style
  • Reversible Sleeve Air Spring
  • 5/16-18 Blind Nuts
  • Plastic Stud
  • 1/8 NPT Port



Product Specifications

Compressed Height1.5 in.
Extended Height3.5 in.
Bottom Plate Width2.88 in.
Top Plate Diameter2.40 in.
Air Inlet1/8NPT
Screw Type5/8-11×1 inch
Maximum Diameter at 60PSIG3.4 in.
Threaded Hole5/16-18



Other OEM Numbers

Style 1M1A-0Blind nut, 1/8NPT, plastic stud

W02-358-3000, W023583000, W02 358 3000
WO2-358-3000, WO23583000, WO2 358 3000

Blind nut, 1/8NPT, brass stud

W02-358-3001, W023583001, W02 358 3001
WO2-358-3001, WO23583001, WO2 358 3001

Blind nut, 1/8NPT, brass stud, stainless steel ring

W02-358-3005, W023583005, W02 358 3005
WO2-358-3005, WO23583005, WO2 358 3005


Firestone Number: W02-358-3000, W023583000, W02 358 3000
Goodyear Number: 1S3-013, 1S3013, 1S3 013
Firestone Number: W02-358-3001, W023583001, W02 358 3001
Prevost Number: 950208
ContiTech Number: SK37-6P02, SK376P02, SK37 6P02
Endyne Bellow Number: TI-1S3-013, TI1S3013, TI 1S3 013


Technical Analysis of Sleeve-type Air Springs
1. Core structural features

  • Flexible elements and molded beads: The interior of the bellows is made of flexible materials (such as thick rubber or synthetic rubber compounds), and molded beads are provided at both ends for sealing and fixing.
  • Sleeve design: The bellows is wrapped by a two-piece sleeve on the outside to form a composite structure of "sleeve + bellows". Compared with bellows air springs, the sleeve design can significantly reduce the overall diameter (higher space utilization).


2. Working mechanism

  • Inflation and compression process: When the spring is compressed, the air is pressed into the internal space, the bellows expands, and the two-piece sleeve is extended outward, thereby increasing the overall length of the spring and achieving vehicle height adjustment.
  • Sealing and fixing: One end of the bellows is pressed into the spring seat, and the other end is sealed by crimping to ensure stable air pressure.



FAQ

Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

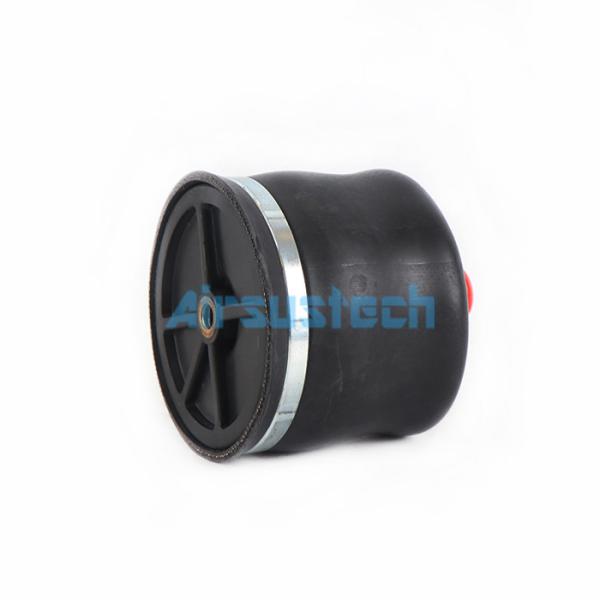

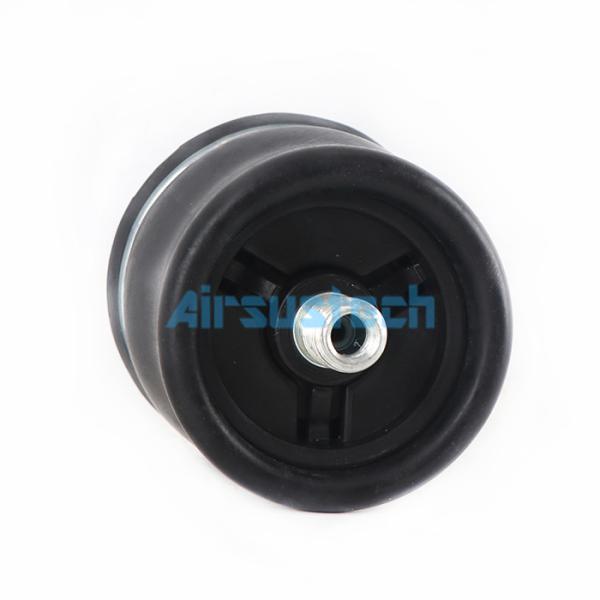

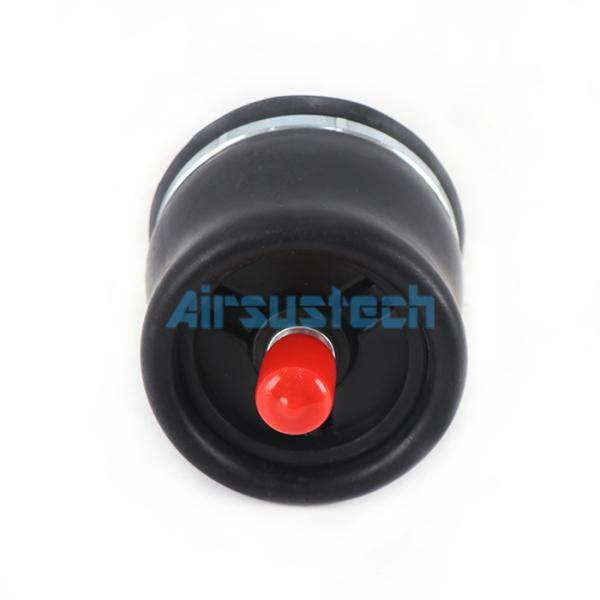

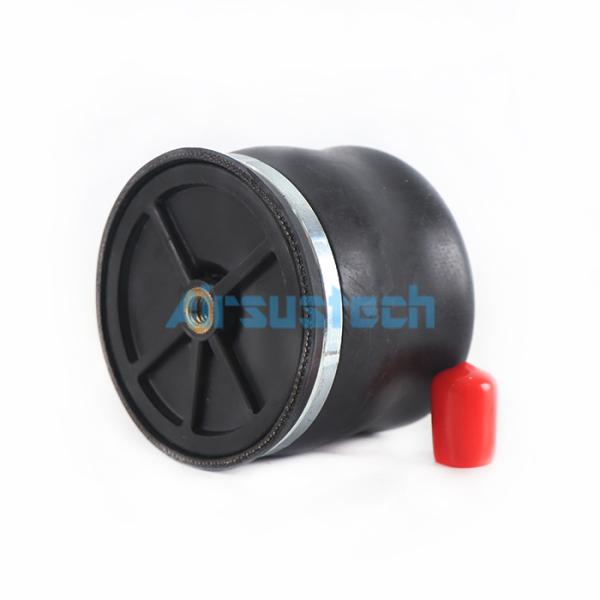

The Real Pictures of G3014

Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air BagsReversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags


Factory Workshop
Reversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air BagsReversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air BagsReversible Sleeve Air Springs W02-358-3000 by Firestone Style 1M1A-0 Air Bags
