Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B10×3T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Max. Outer Diameter :
270 MM
Port Size :
ZG1/2''
Bellow Type :
Triple Convoluted
Firestone :
W01-R58-4059
Compatibility :
Easy to Replace
Quality :
100% Tested
Description

Pneumatic Air Actuator M/31103 by Norgren Flange Connection Air Spring Assembly

Product Description

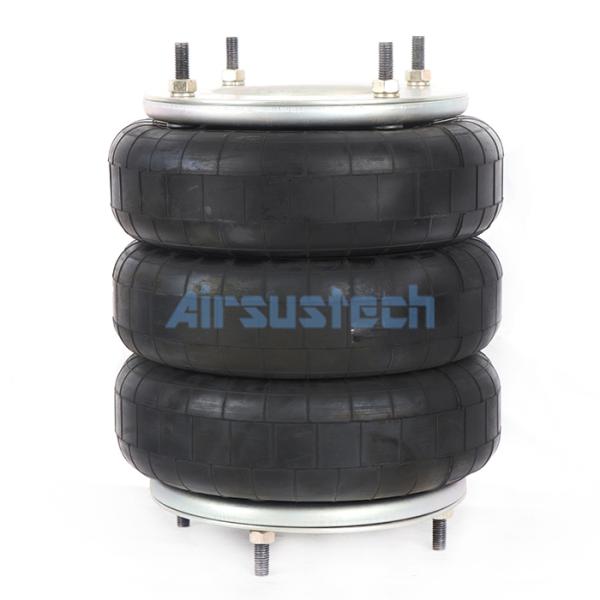

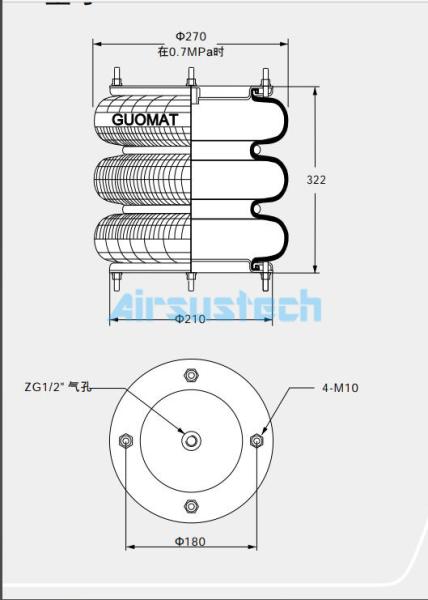

  • The AIRSUSTECH NO. 3B10×3T is a convoluted-type air spring featuring a flange ring design. This model has a static height of 322 mm when unloaded, with a cover plate diameter measuring 210 mm.
  • The top plate of the air spring is equipped with a ZG1/2'' threaded air connection port for pneumatic supply. For mounting purposes, it includes four M10 screw nuts (4-M10) arranged around the flange.
  • Under an operating air pressure of 0.7 MPa, the rubber bellows expand to a maximum outer diameter of 270 mm during operation.

Other OEM Numbers

Norgren Air Bellow M/31103 / M31103 / M 31103
Firestone Air Bag

W01-R58-4059 / W01R584059 / W01 R58 4059

WO1-R58-4059 / WO1R584059 / WO1 R58 4059
Dunlop Pneuride Air Spring 10''×3 / 10'×3 / 10×3
Dunlop Springride Air Spring SP1539 / SP 1539 / SP 15 39
Contitech Continental Bellow

FT 210-32 DS / FT 21032 DS / FT 210 32 DS

FT210-32 DS / FT21032 DS / FT210 32 DS
Parker Air Suspension 9109031

Applications​​

  1. ​​Industrial Automation​​: Suitable for material handling, packaging, and robotics due to its robust design.
  2. ​​Transportation​​: Used in railway systems (e.g., door control, suspension systems) owing to its durability and EN61373 certification for shock/vibration resistance.

Certifications & Quality​​

  • Complies with international standards (ISO-certified).
  • AIRSUSTECH's reputation for precision engineering ensures high reliability.
  • Includes a ​​1-year warranty​​; faulty units are replaced if defects are confirmed by AIRSUSTECH's technical center.

We Have Other Types Air Suspensions/Air Bags/Air Springs

Nominal (inch)×convolutions Operating Angle Out of Algignment (mm) Minmum Height (mm) Maximum Height (mm) Models
6''×1 10 10 50 105 M/31061
6''×2 10 10 75 190 M/31062
8''×1 10 10 50 130 M/31081
8''×2 10 10 75 250 M/31082
10''×1 10...20 10 50 150 M/31101
10''×2 10...20 10 50 150 M/31102
10''×3 15...30 30 100 430 M/31103
12''×1 10...20 10 50 150 M/31121
12''×2 15...25 20 75 300 M/31122
14 1/2''×1 10...20 10 50 150 M/31141
14 1/2''×2 15...25 20 75 340 M/31142
14 1/2''×3 15...30 30 100 480 M/31143
16''×2 15...25 20 75 390 M/31162
16''×3 15...30 30 120 550 M/31163
21''×2 15...25 20 84 335 M/32212
26''×2 15...25 20 100 500 M/32262

​

Product Images of 3B10×3T
