Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6×1P
Certification :
ISO/TS16949, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
1B6×1P
Screw Type :
4-M8
Extended Height :
110 MM
Installation Space :
190 MM
Keywords :
Air Suspension Shock Absorber
Dunlop :
6''×1
Firestone :
W01-R58-4078
Description

Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate

Product Specifications

Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Air Hole: G1/2
Maximum Diameter: 110 mm
Number of Convolutions: one
Working Stroke: 55 mm
Operation: gas filled
Materials - Body: natural rubber and steel
Dimensions - Min. Height: 55 mm
Dimensions - Max. Height: 110 mm
Country of Origin: China

Superseded Part Number

Norgren PM/31061

Norgren PM31061

Norgren PM 31061

Firestone W01-R58-4078

Firestone W01R584078

Firestone W01 R58 4078

Dunlop Pneuride 6''×1

Dunlop Pneuride 6'×1

Dunlop Pneuride 6×1

Dunlop Springride SP2913

Dunlop Springride SP 2913

Dunlop Springride SP 29 13

Contitech FS 76-7 DI

Contitech FS 767 DI

Contitech FS 76 7 DI
Parker 9109004A

A Complete Production Capablity and Special Testing Facilities

  • German import WP GK-200A model of mixing machine and rubber mixing line
  • Italy technology and independent design improved cord breaking and bead wire production workishop
  • Air spring forming workshop
  • Air spring vulcanizing workshop
  • Pieces of metal processing workshop
  • Air spring crimping workshop
  • A first-class production technology and scientific production workshop, is to ensure that my company first-class product them in conditions

Air Spring Should Pay Attention To In The Application


1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

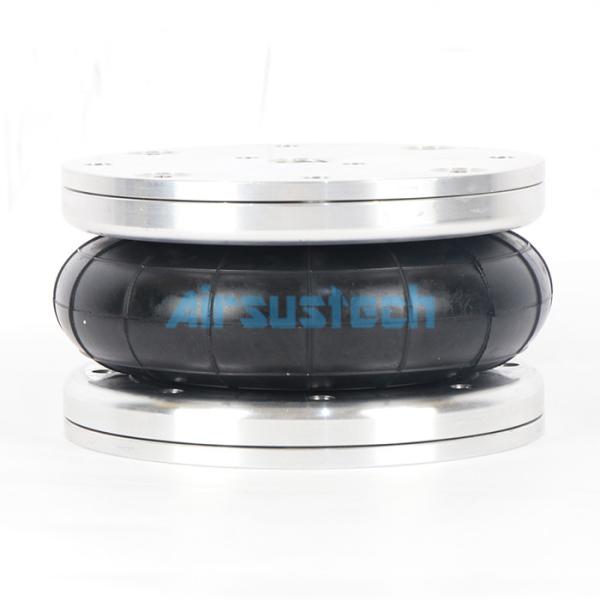

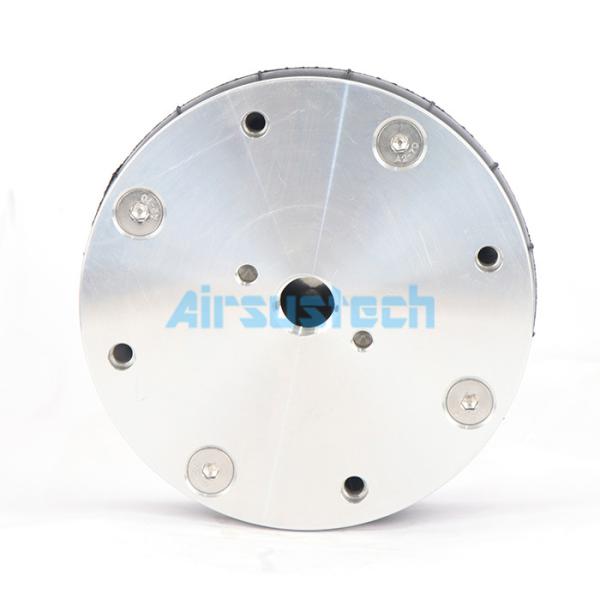

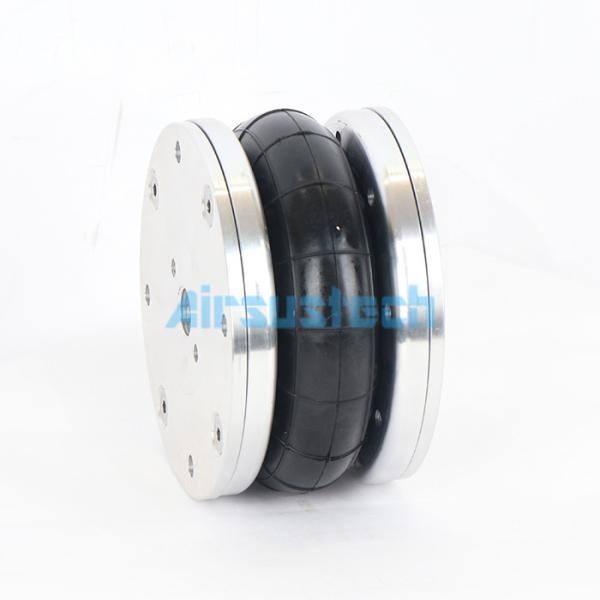

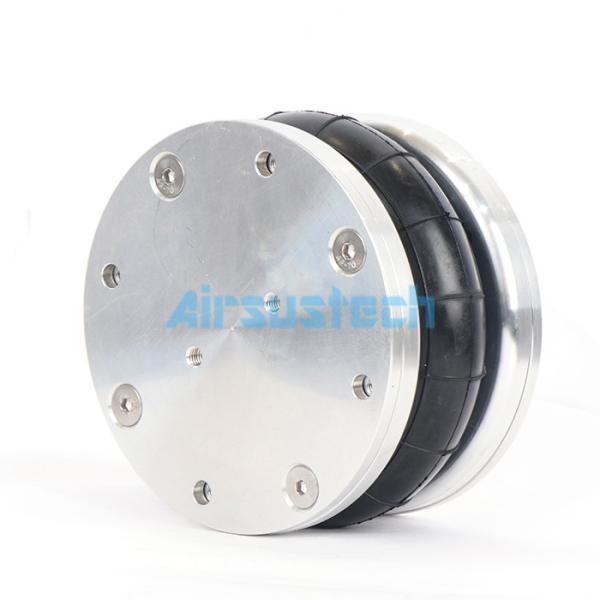

The Detailed Photos

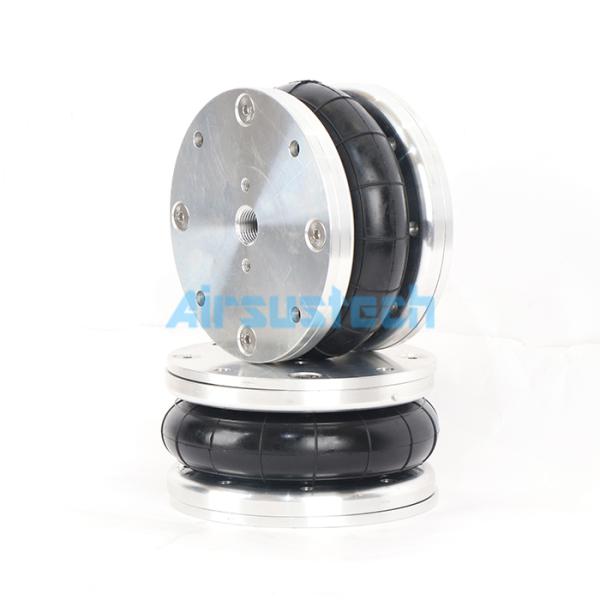

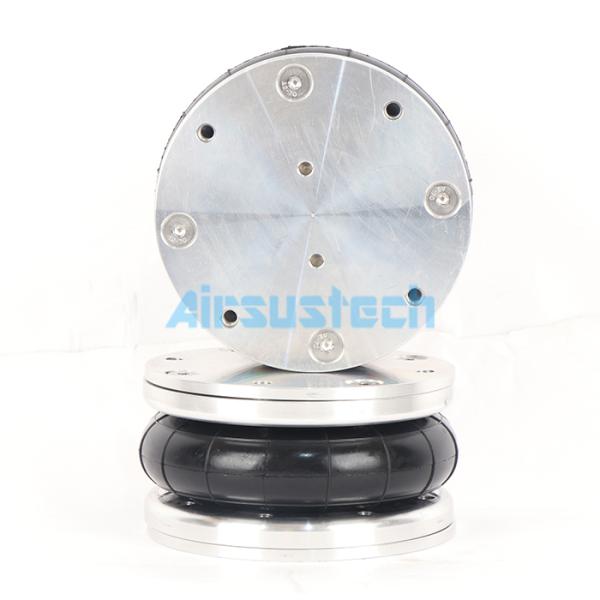

Original Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel PlateOriginal Rubber Air Bag Norgren PM/31061 Single Convoluted Air Spring Steel Plate
