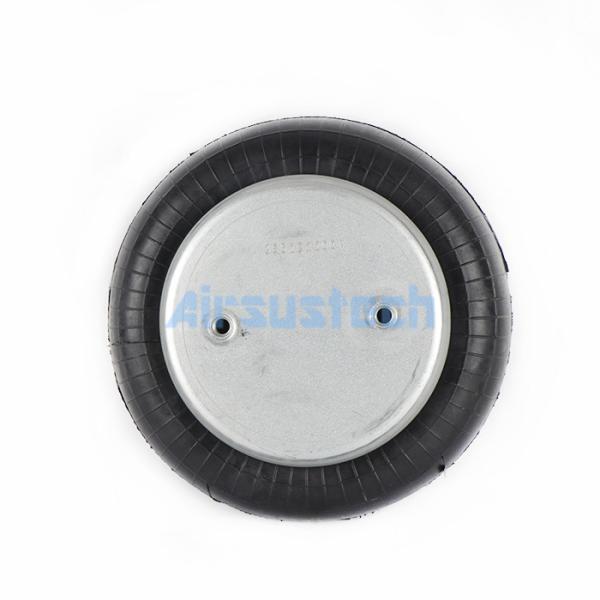

222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10

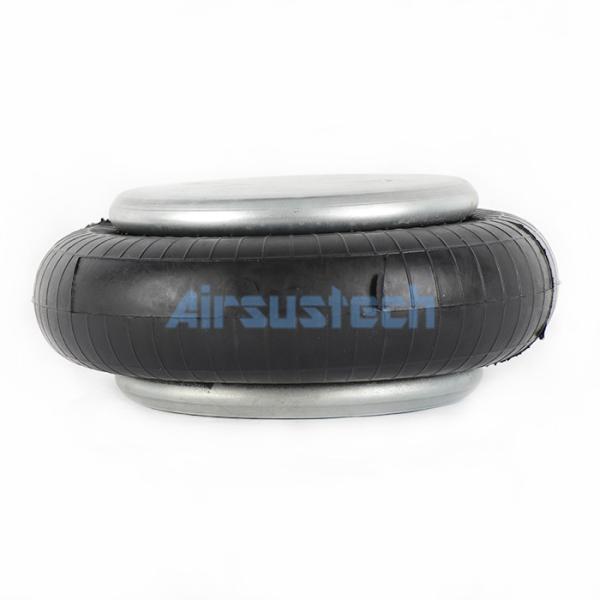

222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10

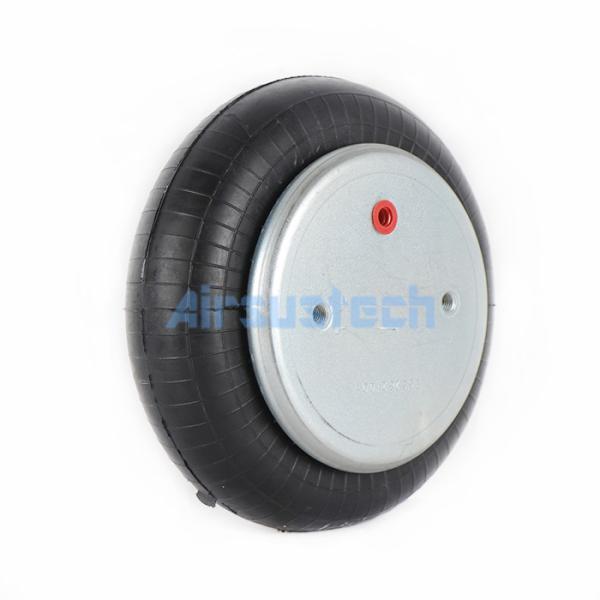

222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Pneumatic Connection :
G1/4
Static Height :
110 MM
Bellows Type :
Single Convoluted
Phoenix :
SP 1B 12
Festo :
EB-250-85
Screw Nut Type :
2×M10×1.5
Description

222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10

Product Introduction

An air spring is a technical rubber bellows with a column of compressed air inside. The rubber bellows itself does not generate force or carry a load; the air column does. AIRSUSTECH air springs feature a technical elastomer bellow with specially designed metal end caps. Our standard two-layer air springs consist of four layers. For higher pressures, many of our air springs are also available in high-strength versions. These consist of either four layers of fabric-reinforced rubber or two layers of special high-strength cord with an inner and outer sleeve.

1B6910 Specifications and Technical Datas

Dimensions - Natural Height

110 mm
Dimensions - Cover Plate Diameter 160 mm
Dimensions - Center to Center Width 89 mm
Dimensions - Distance Between Air Hole and Screw 44.5 mm
Dimensions - Naural Diameter 222 mm
Air Hole Standard G1/4
Screw Type 2×M10×1.5

Vibration isolation - dynamic characteristics values

Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 5.5 7.5 9.6 11.9 14.0 15.7 2.7
Spring Rate [N/cm] 1500 2050 2600 3150 3700 4250
Natural Frequency [Hz] 2.6 2.6 2.6 2.6 2.6 2.6

Pneumatic application - static characteristic values

Pressure p [bar] 3 4 5 6 7 8 Vol.[l]
Height H [mm] 120 4.5 6.2 8.2 10.4 12.1 13.8 2.8
110 5.5 7.5 9.6 11.9 14.0 15.7 2.7
100 6.3 8.6 11.0 13.4 15.5 17.5 2.3
90 7.0 9.4 12.1 14.6 17.0 19.2 2.2
80 7.6 10.2 13.0 15.7 18.2 20.6 1.8
70 8.1 10.9 13.6 16.5 19.3 21.9 1.6
60 8.5 11.3 14.2 17.1 20.1 23.0 1.3

OEM Original Manufacturer

Manufacturer: Bosch

Part Number: 822419004

Manufacturer: Contitech

Part Number: FS 200-10 / FS 20010 / FS 200 10

Manufacturer: Firestone

Part Number: W01-M58-6374 / W01M586374 / W01 M58 6374

Manufacturer: Phoenix

Part Number: SP 1B 12 / SP 1B12 / SP1B12

Manufacturer: Dunlop(FR)

Part Number: 9''1/4x1 S09101 / 9'1/4x1 S09101 / 9 1/4x1 S09101

Manufacturer: Festo

Part Number: EB-250-85 / EB25085 / EB 250 85

Manufacturer: Norgren

Part Number: PM/31091(8 1/4x1) / PM31091(8 1/4x1) / PM 31091(8 1/4x1)

What Are the Advantages of AIRSUSTECH Air Springs?

  1. Excellent shock absorption
  2. Stable shock absorption
  3. Precise height control
  4. Wide range of sizes
  5. Extend equipment life
  6. Effectively reduce noise
  7. Air spring shock absorbers are widely used

The Related Photos

222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10

222MM Nominal Diameter Air Spring Bosch 822419004 Air Bellow Contitech FS 200-10
