Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B130070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Number :
1B130070
Cover Plate Diameter :
114 MM
Compressed Height :
50 MM
Screw Nuts :
M10
Contitech :
FS 50-5
Compatibility :
Adjustable
Advantages :
Effective Shock
Description

Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator

Product Description

AIRSUSTECH rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

Product Dimensions: 1B130070

Product Number Nonimal Diameter (mm) 0.7Mpa Max.Diameter Load at Design Height 0.7Mpa
Natural Frequency		 Stroke Range
0.2Mpa 0.5MPa 0.7Mpa Min. Height Max. Height
1B130070 100 142 159 422 601 3.48 53 83
1B150086 106 160 149 395 566 3.42 55 100
1B188130 120 210 167 438 636 3.25 55 149
1B215128 125 230 287 760 1071 3.19 55 145
1B235118 180 255 474 1185 1684 2.52 60 136
1B235150 180 255 441 1205 1740 2.29 65 172

OEM Original Manufacturer

Supplier: AIRSUSTECH

OEM Number: 1B130070

Supplier: Firestone

OEM Number: W01-M58-6140 / W01M586140 / W01 M58 6140

Supplier: Contitech

OEM Number: FS 50-5 / FS 505 / FS 50 5

Firestone Style 16 OEM Cross References

  • Blind nuts, 1/4 BSP:

W01-M58-6140 / W01M586140 / W01 M58 6140

WO1-M58-6140 / WO1M586140 / WO1 M58 6140

  • Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws):

W01-358-0017 / W013580017 / W01 358 0017

WO1-358-0017 / WO13580017 / WO1 358 0017

  • Rubber bellows only:

W01-358-0010 / W013580010 / W01 358 0010

WO1-358-0010 / WO13580010 / WO1 358 0010

The Applications of AIRSUSTECH 1B130070 Airbags

  • Factory Automation

- Die cushion systems in stamping presses
- Conveyor height compensation

  • Commercial Vehicles

- Auxiliary suspension for overload protection
- Trailer deck leveling (ISO 7638 compliant)

  • Heavy Machinery

- Mining drill platform stabilization
- Agricultural implement lift assist

FAQ

Question: What's your transportation?
Answer: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.
Question: How to order ?
Answer: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
Question: What is your advantage?
Answer: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

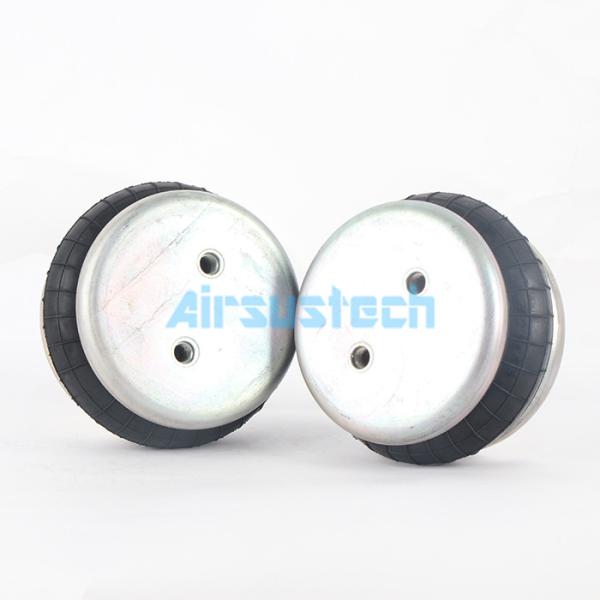

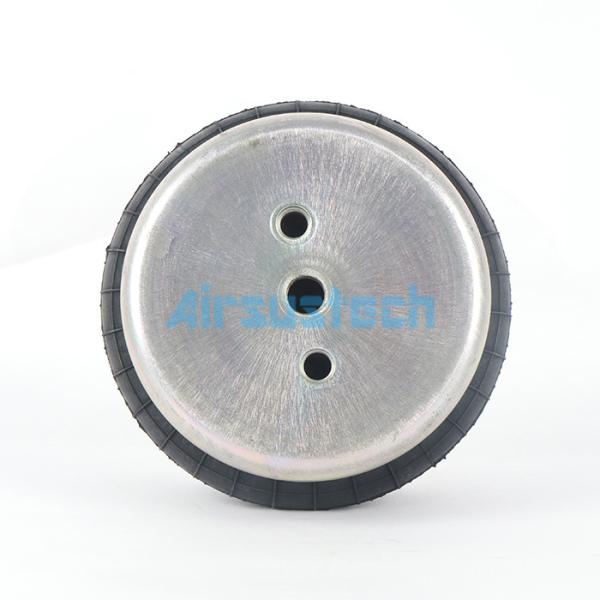

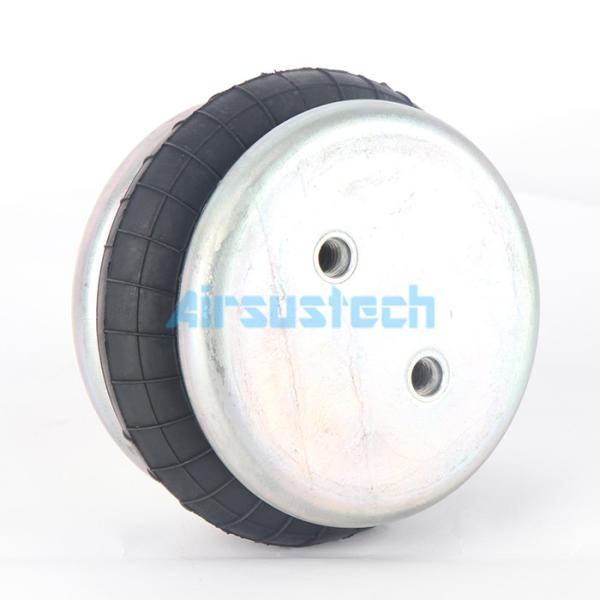

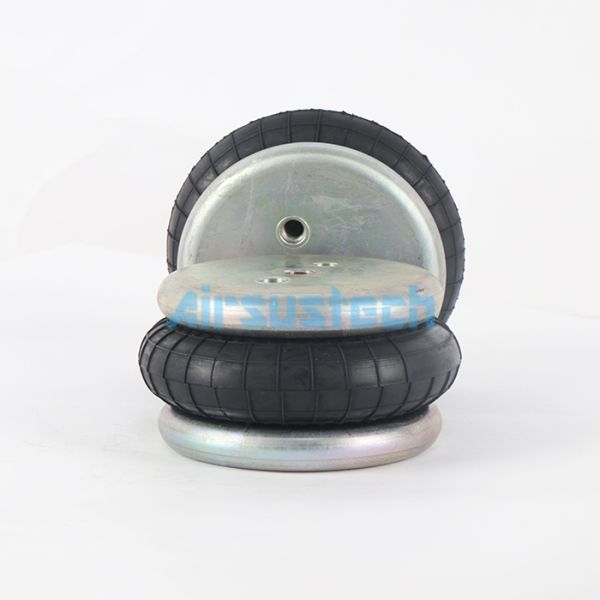

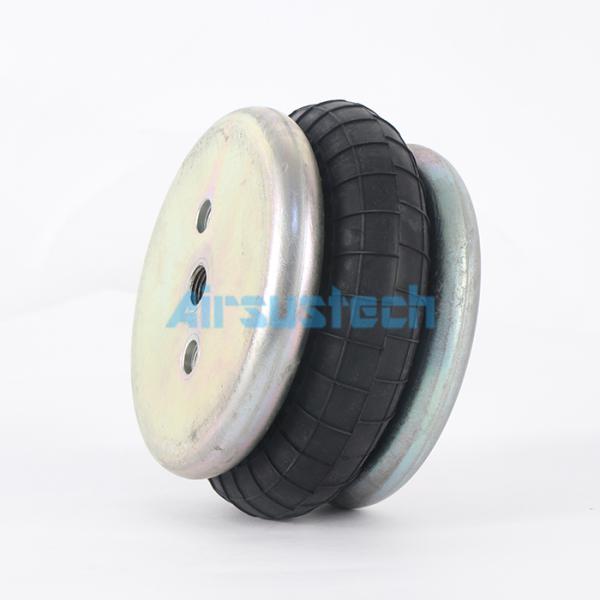

Product Images

Firestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air ActuatorFirestone Air Bag Helper Springs W01-M58-6140 Metric Single Type Air Actuator
