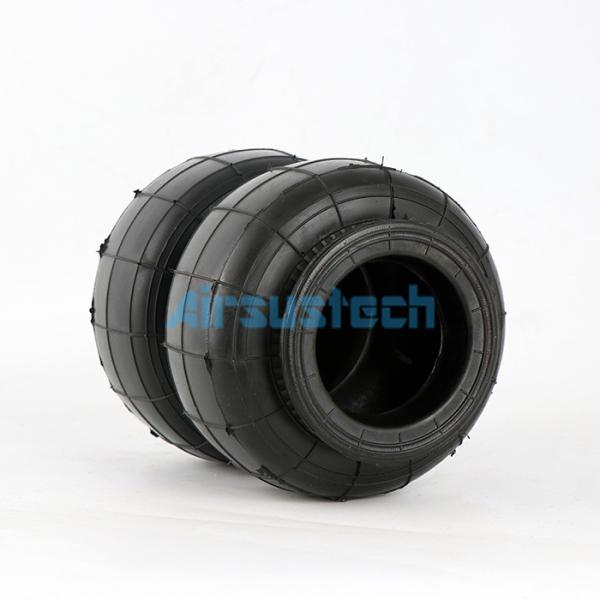

Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
130142H-2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Design Height :
142 MM
Natural Diameter :
130 MM
Material :
Natural Rubber
Compatibility :
Universal
Rubena :
130/2
Quality Assurance :
One Year
Description

Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension

Product Details

Design Diameter 130 mm
Natural Height 142 mm
Inner Diameter 62 mm
Outer Diameter 92 mm
Bellows Type Double Convoluted
Standard OEM Standard
Material Natural Rubber
Rubena 130/2

Other Types Industrial Air Rubber Bellows

Model Number Number of Convolutions Maximum Diameter (mm) Outer Diameter (mm) Static Height (mm) Wroking Stroke (mm)
HF80/90-1 1 136 82 90 50-110
HF80/142-2 2 130 92 142 72-162
HF95/70-1 1 130 65 70 45-80
HF100/166-2 2 160 112 176 74-200
HF104/66-1 1 150 88 66 34-85
HF115/77-1 1 145 118 77 55-90
HF120/132-2 2 168 136 132 72-152
HF125/112-1 1 215 150 112 40-132
HF150/140-2 2 200 132 140 76-162
HF170/120-1 1 260 150 120 55-145
HF174/126-1 2 174 170 126 50-160
HF180/156-1 1 300 181 156 120-170
HF180/152-2 2 235 145 152 67-182
HF190/170-2 1 188 28 170 84-194
HF190/248-3 3 250 128 248 116-282
HF192-140-2 2 240 143 140 80-190
HF208/90-1 1 268 178 90 50-130
HF230/116-1 1 285 172 116 75-130
HF230/120-1 1 320 182 124 50-140

Advantages as an Actuator

1. Maintenance-free

Thanks to the long service life of the rubber bellows (no sliding seals required), operating costs are lower than with conventional cylinders.

2. Lateral Offset

Thanks to its flexibility, the air bellows can be operated with a lateral offset of up to 30 mm. This eliminates the need for precision guides and reduces costs.

3. Wide range of sizes

The outer diameter of the rubber bellows ranges from 80 mm to 950 mm, and the load range from 0.5 to 450 kN.

4. Tilting Movement

The rubber bellows can be tilted up to 25 degrees.

5. Smooth Movement

The stick-slip effect of conventional cylinders is avoided.

FAQ

Quetsion: How do you correctly identify the products you need?
Answer: Supply part number,we can check directly.
Engine and gearbox parts;if you don't know part code,try to found engine or gear model and number.
Question: Can you produce according to samples?
Answer: Yes, it can be developed according to your samples or technical drawings.
Question: Is it possible to receive a proforma invoice?
Answer: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out.
You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the pay.

The Real Pictures

Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air SuspensionStatic Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension


Factory Workshop
Static Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air SuspensionStatic Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air SuspensionStatic Height 142MM Rubber Air Spring 130142H-2 Double Convoluted Air Suspension
