Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Part Number :
1B6910
Pneumatic Connection :
G 1/4
Screw Type :
2×M10×1.5
Material :
Rubber And Steel
Phoenix :
SP 1B 12
Firestone :
W01-M58-6374
After-sales Service :
One Year
Description

Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension

Product Description

AIRSUSTECH NO. 1B6910 industrial convoluted air spring directly replace Firestone W01-M58-6374, Contitech FS 200-10, Phoenix SP 1B 12, Bosch 822419004, Festo EB-250-85, and Norgren PM/31091. Engineered with natural rubber bellows and high-quality steel components for industrial durability. Backed by a 1-year warranty, this air spring solution includes dedicated technical support for installation and application guidance in industrial machinery and truck systems. Our sales and after-sales teams ensure seamless integration and optimal performance in your specific operational environment.


Product Standards

Top Cover Plate
Cover Plate Diameter 160 mm
Center to Center Distance Diameter 89 mm
Distance Between Air Inlet and Screw 44.5 mm
Screw Nut Type 2×M10×1.5
Air Hole Standard G1/4
Bottom Cover Plate
Cover Plate Width 160 mm
Center to Center Diameter 89 mm
Material Steel
Screw Type 2×M10×1.5
Rubber Bellows
Natural Diameter of Rubber Bellow 220 mm
Design Height 110 mm
Structure single convoluted



OEM Original Manufacturer

Festo Part Number: EB-250-85
Festo Part Number: EB25085
Festo Part Number: EB 250 85
Contitech Part Number: FS 200-10
Contitech Part Number: FS 20010
Contitech Part Number: FS 200 10
Firestone Part Number: W01-M58-6374
Firestone Part Number: W01M586374
Firestone Part Number: W01 M58 6374
Phoenix Part Number: SP 1B 12
Phoenix Part Number: SP 1B12
Phoenix Part Number: SP1B12
Dunlop(FR) Part Number: 9''1/4x1 S09101
Dunlop(FR) Part Number: 9'1/4x1 S09101
Dunlop(FR) Part Number: 9 1/4x1 S09101
Bosch Part Number: 822419004
Norgren Part Number: PM/31091(8 1/4x1)
Norgren Part Number: PM31091(8 1/4x1)
Norgren Part Number: PM 31091(8 1/4x1)


Sufficient Clearance Must Be Maintained Around the Air Bellows

  1. The entire surface of the metal part must be exposed to the forces.
  2. The air bellows must be equipped with lateral guides.
  3. Completely vent the air bellows before disassembly.
  4. Ensure that the bellows is not in constant contact with hydraulic oils, lubricants, solvents, metal chips, and welding sparks.
  5. If the air bellows come into contact with special media in the application, please contact Precision Engineering for further information and specify the media, temperature, and concentration.

FAQ

Quetsion: What's your advantage?
Answer: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world
Question: What is your sample policy?
Answer: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Question: Do you offer any warranty?
Answer: Yes, we offer ONE YEAR warranty on all of our products (new and used).

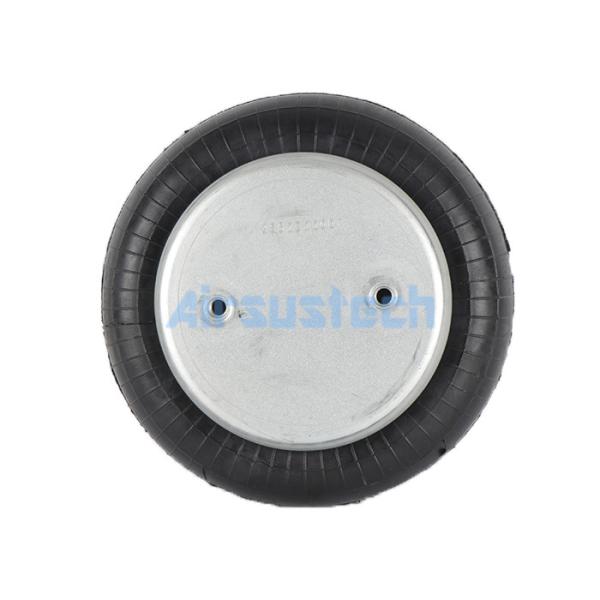

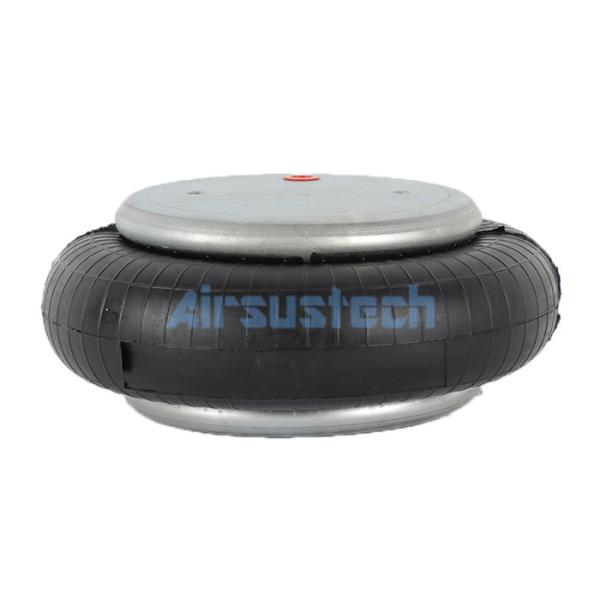

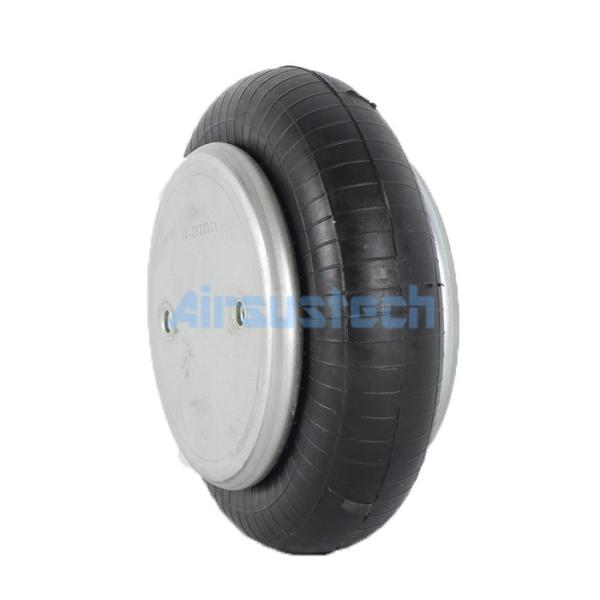

The Detailed Photos of 1B6910 Airbag

Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air SuspensionFesto EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension


Factory Workshop
Festo EB-250-85 Air Spring Rubber Components Static Height 110MM Air SuspensionFesto EB-250-85 Air Spring Rubber Components Static Height 110MM Air SuspensionFesto EB-250-85 Air Spring Rubber Components Static Height 110MM Air Suspension
