Specifications
Brand Name :
AIRSUSTECH
Model Number :
2H630262
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, , Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Part Number :
2H630262
Screw Type :
24×M10
Compressed Height :
89 MM
Max. Extended Height :
305 MM
Material :
Rubber and Aluminum
Firestone :
W01-358-5126
Bellows Type :
Double Convoluted
Description

Customized Flange Connection Rubber Air Spring W01-358-5126 by Firestone Air Bag

Product Introduction

Type H air springs are generally in stock. The air springs manufactured by Guangzhou Elso Technology comply with national standards and come with a one-year warranty. If quality issues occur within the warranty period, the springs can be replaced. There is no limit to the order quantity. Small orders are usually shipped via international express services such as DHL, FEDEX, UPS, or TNT to ensure fast delivery within 3–7 business days.

Product Specifications

Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Maximum Diameter: 660 mm
Number of Convolutions: 2
Working Stroke: 216 mm
Operation: flange connection
Materials - Body: natural rubber and steel
Dimensions - Min. Height: 90 mm
Dimensions - Max. Height: 340 mm

Dimensions - Center Distance: 558 mm

Screw Nuts Type: 30-M10
Country of Origin: China

Product Technical Data Sheet

Dynamic Characteristics at 240 mm Design Height
Gauge Pressure (BAR) Load (kN) Spring Rate (kN/m) Natural Frequency (Hz)
3 65.6 710 1.64
4 88 903 1.6
5 111 1,091 1.57
6 134 1,290 1.54
7 157 1,480 1.53

Force Table
Assembly Height (mm) Volume @ 100 BAR (cu cm) EFF Area @ 7 BAR (cu sq) kN Force
@ 3 BAR @ 4 BAR @ 5 BAR @ 6 BAR @ 7 BAR
260 68626 2057 59.56 80.57 101.22 123.62 143.98
240 64100 2237 65.60 88.20 110.53 134.38 156.56
220 59270 2384 70.27 94.34 117.89 143.23 166.86
200 54018 2503 74.03 99.30 124.00 150.38 175.2
180 48552 2599 77.11 103.27 128.85 156.12 181.87
160 42927 2678 79.74 106.59 132.92 160.96 187.47
140 37197 2754 82.19 109.71 136.77 165.54 192.76
120 31597 2835 84.73 113.02 140.90 170.45 198.42

Manufacturer Part Number

W01-M58-6979, W01M586979, W01 M58 6979

WO1-M58-6979, WO1M586979, WO1 M58 6979

Ribbed neck aluminum bead rings (equal spacing),

45 mm bolts, nuts, washers
WO1-358-5126, WO13585126, WO1 358 5126 Rubber bellows only

The Applications of AIRSUSTECH Rubber Bellows

AIRSUSTECH air actuators can be used in nearly all branches of industry, such as:

  • vehicle applications
  • automation technology
  • conveyor systems
  • agricultural machinery
  • food industry
  • paper and textile equipment
  • pantograph drives
  • sawmill machinery
  • punch and forming presses

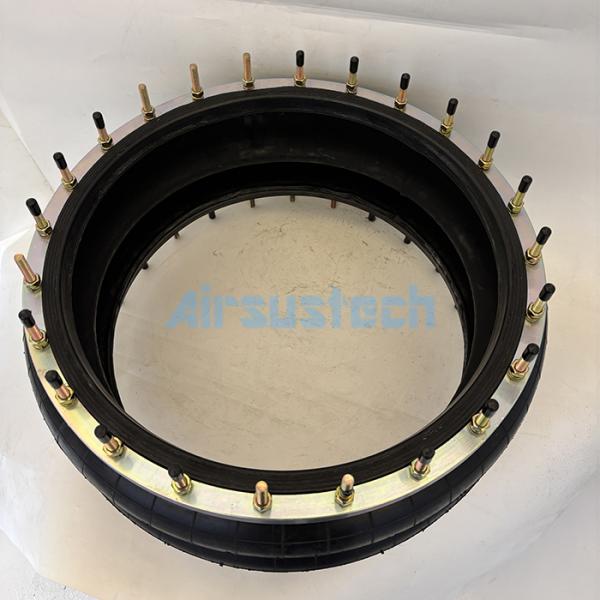

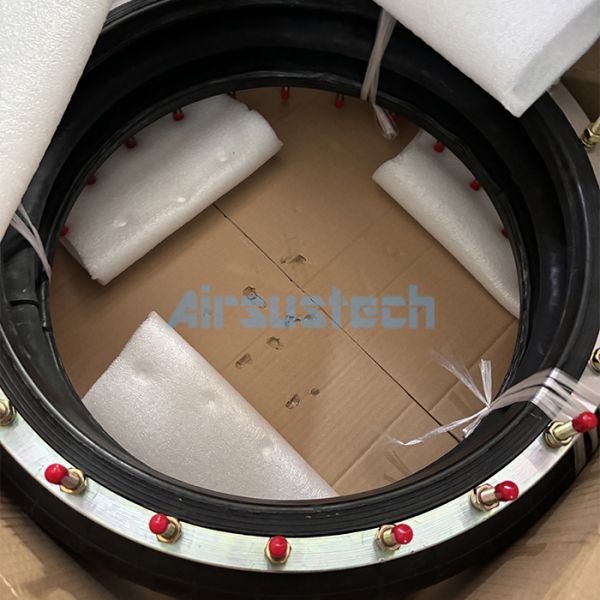

2H630262 Detailed Pictures

Customized Flange Connection Rubber Air Spring W01-358-5126 by Firestone Air BagCustomized Flange Connection Rubber Air Spring W01-358-5126 by Firestone Air Bag
