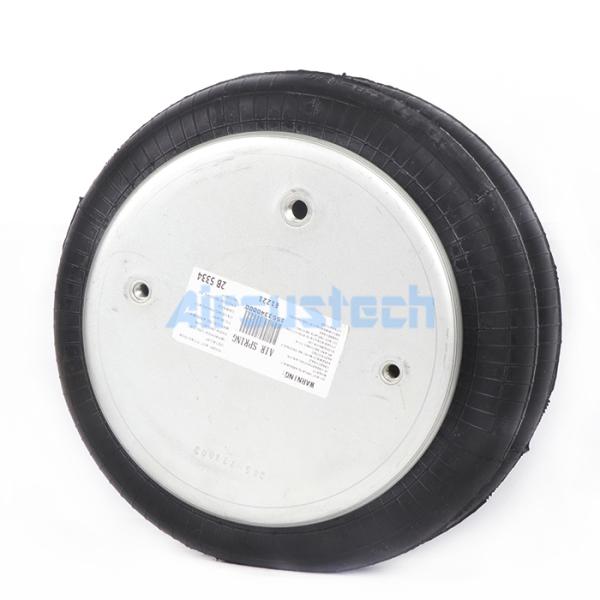

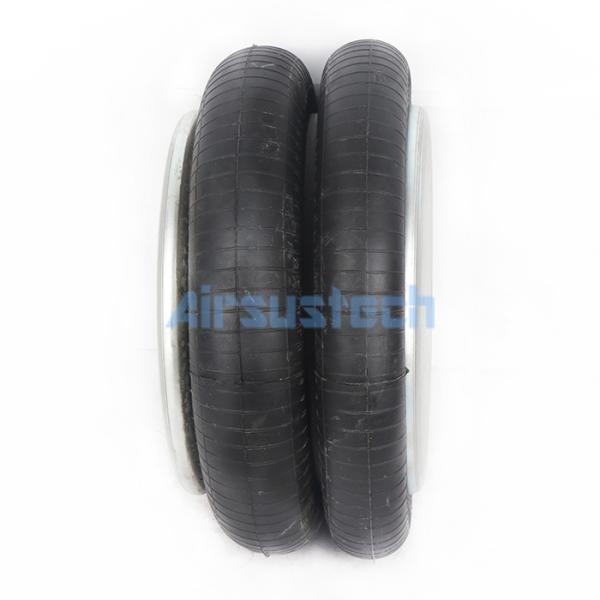

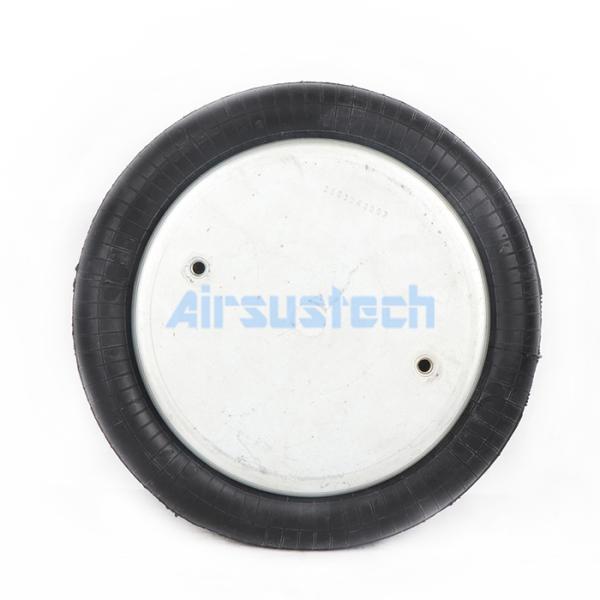

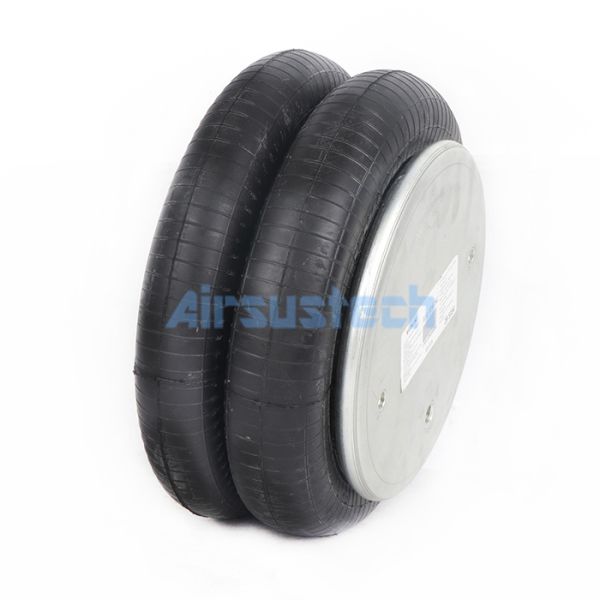

Industrial Air Springs Fab Tek 04-0080 AIRSUSTECH 2B7400 Air Suspension Systems

Product Dimensions

Dimensions - Min. Compressed Height: 104 mm

Dimensions - Max. Extended Height: 305 mm

Dimensions - Cover Plate Width: 231 mm

Dimensions - Center to Center Distance: 157 mm

Dimensions - Maximum Diameter: 325 mm

Air Hole Standard: 1/4 NPTF

Screw Type: 2×3/8-16UNC

OEM Original Manufacturer

What Is Double Convoluted Air Spring Suspension?

Engineered for demanding industrial applications, our ​​double convolution air springs​​ deliver superior load support and vibration isolation. Featuring ​​2-ply reinforced rubber bellows​​ and ​​zinc-plated steel end plates​​, these durable components withstand rigorous use in heavy machinery, commercial vehicles, and automation systems.

​​Key Specifications:​​

1. ​​Structure:​​ Optimized double convolution design for enhanced stability
2. ​​Capacity:​​ Supports loads up to 300 kN (adjustable via 4-8 bar pressure)
3. ​​Materials:​​ Wear-resistant natural rubber with fabric reinforcement
4. ​​Temperature Range:​​ -40°C to +70°C operation
5. ​​Movement:​​ 104-305mm stroke length

​​Industrial Applications Include:​​

• Truck/trailer suspensions
• Press machinery vibration control
• Conveyor system load leveling
• AGV vehicle height adjustment

The Applications of AIRSUSTECH Rubber Air Bags

• Precision measuring equipment: Electron microscope, optical microscope, 3D measuring instrument, roughness meter, hardness meter, etc.
• Manufacturing equipment: LCD and semiconductor Assembly & FAB Equipment.
• Inspection equipment: LCD, semiconductor, PCB, film.
• Precision processing equipment: Laser, Jig Boring Machine, CNC Grinding Machine.
• Testing equipment related to automobile parts.
• Tension and press equipment: Belt tension, lifter, packing, molding, paper.
• Dustproofing of industrial equipment: Air conditioners, pumps, hydraulic equipment, cooling towers, double floors.
• Industrial vibrators: Concrete fume pipes, construction equipment, vibrating screens.
